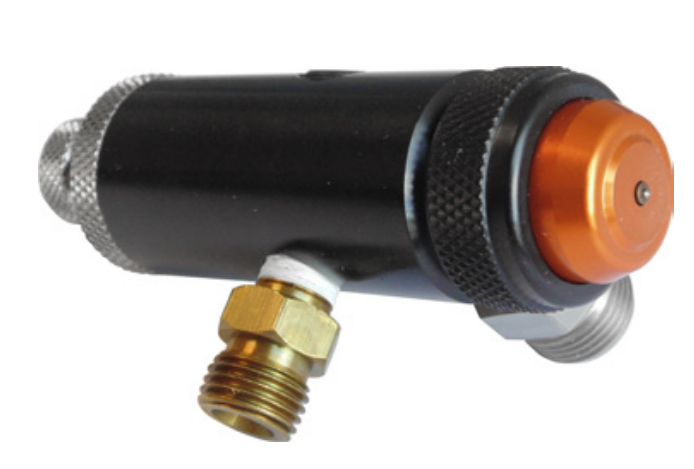

MiniCAT Automatic Spray Gun
Manufacturer: C.A. Technologies
Part Number: 60-650-xxx
Description: AUTOMINICAT-13 – (Mini Automatic) Fixed Fan Automatic Air Spray Gun.
Contact Us for different Nozzle Sizes.
MINICAT (Mini Automatic) Fixed Fan Automatic Air Spray Gun. C.A.Technologies MiniCat is a fine finish conventional air spray automatic gun for precision finishing and painting of small parts. Designed for production use, the MiniCat is perfect for any application that requires a fine line to a small round fan pattern. For conventional fine finish atomization, this gun cannot be beaten. There is no fan adjustment, this spray gun only provides a circular spray pattern and can range from anywhere between 1/4 in. to 2″ wide, depending on the distance from the substrate, nozzle size, fluid, and air pressures. The fluid needle is controlled and actuated by atomizing air pressure. A minimum of 25 PSI air pressure is required to actuate the fluid needle. Various Siphon and Pressure Feed nozzles available. Choose nozzle from the dropdown.
Recommended operating air pressure 25 – 50 PSI
Minimum operating air pressure: 25 PSI
Air cap provides a full round fan
Air Inlet: 1/4in NPS(m)
Fluid Inlet: 3/8in NPS(m)
Supply hoses are sold separately.
Repair Kit P/N: 10-109
AUTOMINICAT-06S – 0.6mm / .022 Siphon
AUTOMINICAT-06P – 0.6mm / .022 Pressure
AUTOMINICAT-07S – 0.7mm / .028 Siphon
AUTOMINICAT-07P – 0.7mm / .028 Pressure
AUTOMINICAT-10 – 1.0mm / .040 Pressure
AUTOMINICAT-12 – 1.2mm / .046 Pressure
AUTOMINICAT-13 – 1.3mm / .052 Pressure
AUTOMINICAT-15 – 1.5mm / .059 Pressure
AUTOMINICAT-18 – 1.8mm / .070 Pressure
