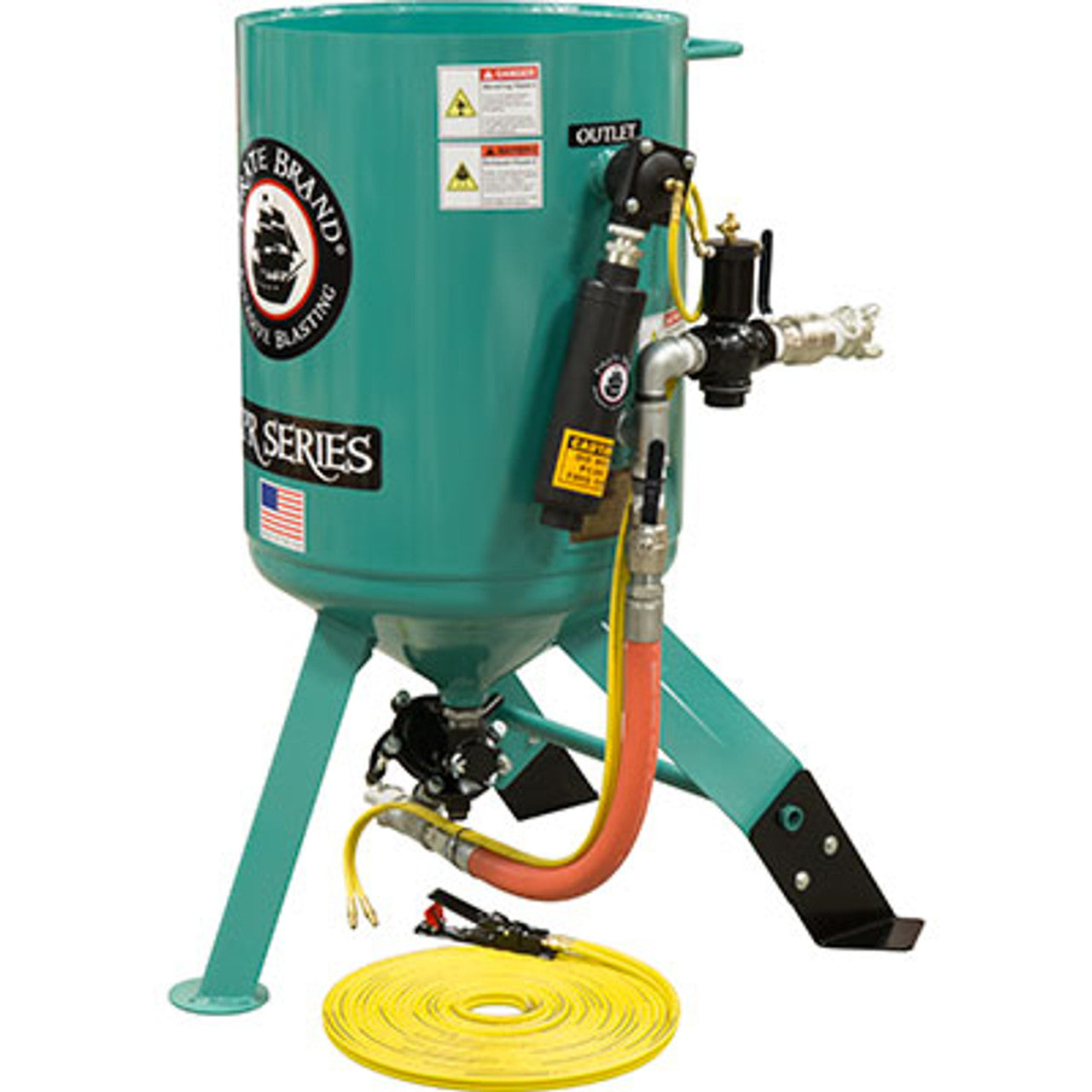

Pirate Brand, C-SERIES, 6 cu ft., BASE Blasting Package - Blast Pot, STATIONARY, Pressure RELEASE System, Pneumatic Controls w/AMV II™ Metering Valve

Pirate Brand, C-SERIES, 6 cu ft., BASE Blasting Package - Blast Pot, STATIONARY, Pressure RELEASE System, Pneumatic Controls w/AMV II™ Metering Valve

Manufacturer: Pirate Brand

Part Number: 221-0730

Description: BLAST POT, STATIONARY W/4" UMBRELLA, 6.0 CU FT (170 LITERS), PRESSURE RELEASE SYSTEM, PNEUMATIC, INCL: AMV II/1-1/2" INLET & 1" DIAPHRAGM OUTLET VALVE, 1-1/4" PIPING, 50' TWINLINE HOSE ASSY & PNEUMATIC CONTROL HANDLE (5 YEAR / 10 YEAR WARRANTY*)

Includes:

• 50' Twinline Assembly
• Pneumatic Control Handle
• AMV II™ Metering Valve

Product Highlights:

A. 6.0 CU. FT. CAPACITY (170 LITERS)
      1. 150 PSI VESSEL (10.3 BAR)
      2. A.S.M.E. SECTION VIII DIVISION 1
      3. CRN FOR ALL PROVINCES
B. PRESSURE RELEASE SYSTEM
      1. AUTOMATICALLY BLOWS DOWN THE VESSEL WHEN CONTROL HANDLE IS RELEASED
      2. 1-1/2" INLET VALVE
      3. 1" DIAPHRAGM OUTLET VALVE
C. 4" UMBRELLA
      1. ELIMINATES EXCESSIVE WEIGHT ON THE POP-UP WHEN HOPPER FEEDING ABRASIVE
D. 1-1/4" GALVANIZED PIPING FOR CORROSION RESISTANCE
E. HEAVY DUTY FULL PORT BALL VALVES
F. EXTENDED LIFE SCHEDULE 80 HEAVY DUTY NIPPLE
      1. WITHSTANDS ABRASIVE WEAR FOR LONGER LIFE
G. PUSHER LINE INCLUDES JIC FITTINGS ELIMINATING GASKET PROBLEMS
H. AMVII(TM) X-TREME DUTY METERING VALVE
      1. STAINLESS STEEL METERING PLATE
      2. ROBUST IRON HOUSING
      3. THIS ONE WORKS WITH STEEL GRIT
      4. NYLON WIPER SEALS ON BOTH SIDES OF METERING PLATE (PREVENTS ABRASIVE FROM ENTERING HOUSING AND CAUSING JAMS)
      5. LARGE CLEAN-OUT/INSPECTION PORT & DRAIN PORT ARE PROVIDED FOR GREATLY IMPROVED SERVICING & MAINTENANCE
      6. PURGE PORT ALLOWS A COMPRESSED AIR SUPPLY TO BE CONNECTED TO ASSIST IN FLUSHING OUT ANY BLOCKAGES THROUGH THE DRAIN PORT
      7. IMPROVED HANDLE DESIGN - HEAVY DUTY
      8. IMPROVED SEALING OF THE METERING PLATE STEM USING A COMBINATION OF LIP SEALS AND O-RINGS

Compatible with the following OEM manufacturers -

TFS is not affiliated with nor is it endorsed by the above manufacturer(s). The product depicted above is not produced or authorized by the above manufacturer(s), with the exception of Forecast Sales/Pirate Brand.
