Pirate Brand, C-Series Jr., 1 cu ft., SILVER LOW PRESSURE Blasting Package - Blast Pot, Portable, Pressure RELEASE System, 12VDC Electric Controls

Pirate Brand, C-Series Jr., 1 cu ft., SILVER LOW PRESSURE Blasting Package - Blast Pot, Portable, Pressure RELEASE System, 12VDC Electric Controls

Manufacturer: Pirate Brand

Part Number: 121-0530-CLP-EDC

Description: BLAST POT, PORTABLE, 1.0 CU FT, 12VDC ELECTRIC, AMV JR, 1/2" INLET/OUTLET VALVES, 1/2" PIPING, SILVER LOW-PRESSURE PACKAGE

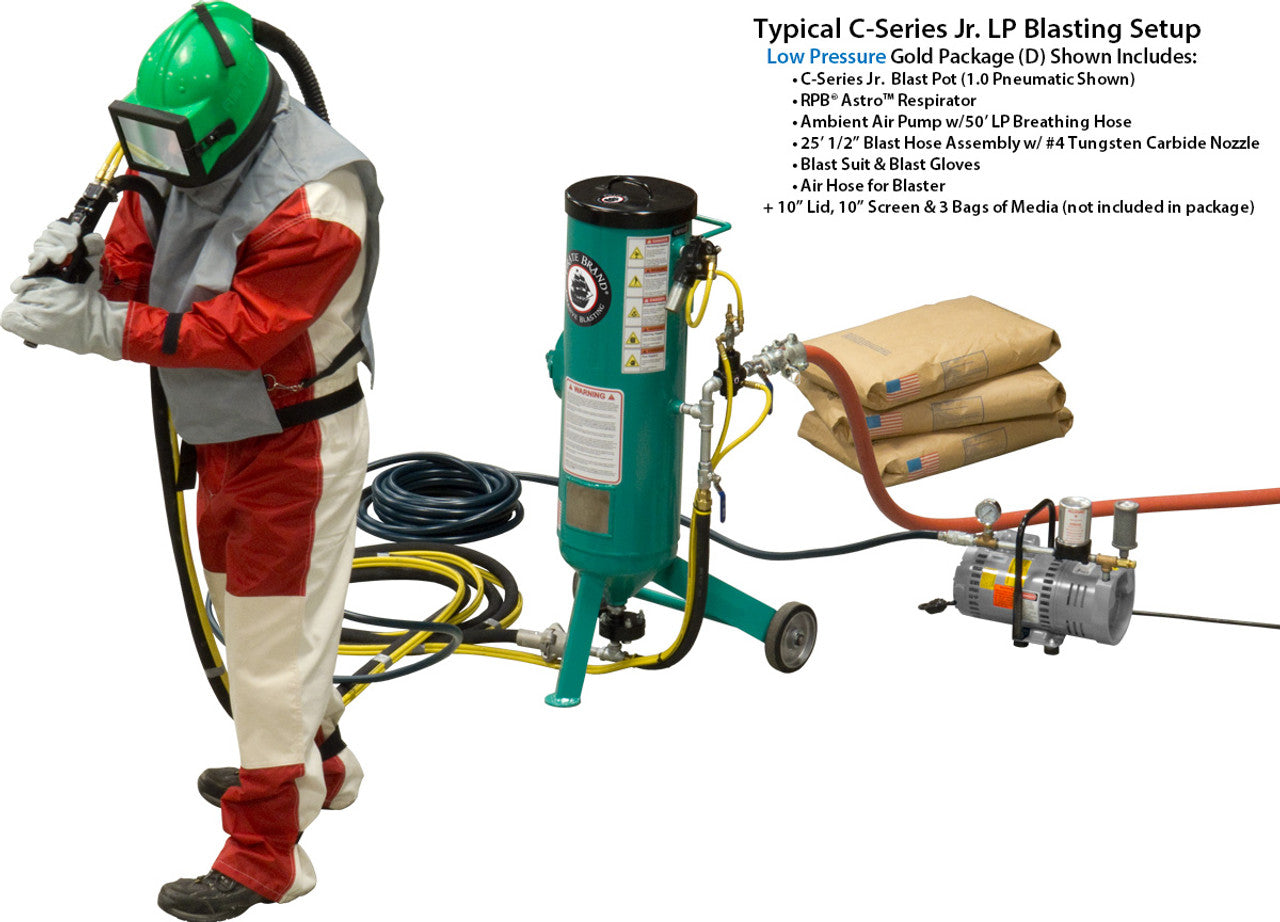

ABOUT LOW-PRESSURE PACKAGES: HIGH PRESSURE RESPIRATORS REQUIRE AN ADDITIONAL 15 CFM @ 100 PSI TO WORK PROPERLY.  FOR THOSE WITH AN AIR COMPRESSOR THAT CAN PRODUCE ENOUGH CFM TO RUN THE BLAST EQUIPMENT BUT NOT ENOUGH EXTRA FOR A HIGH PRESSURE RESPIRATOR WE HAVE CREATED LOW-PRESSURE SILVER & GOLD PACKAGES.  THESE PACKAGES FEATURE A 3/4 HP AMBIENT AIR PUMP WHICH FEEDS A LOW-PRESSURE VERSION OF THE RPB® ASTRO™ RESPIRATOR.

COMPRESSOR REQUIREMENTS @100 PSI
STANDARD PACKAGES VS. LOW-PRESSURE PACKAGES

*AIR CONSUMPTION REQUIREMENTS WILL INCREASE AS NOZZLES WEAR.

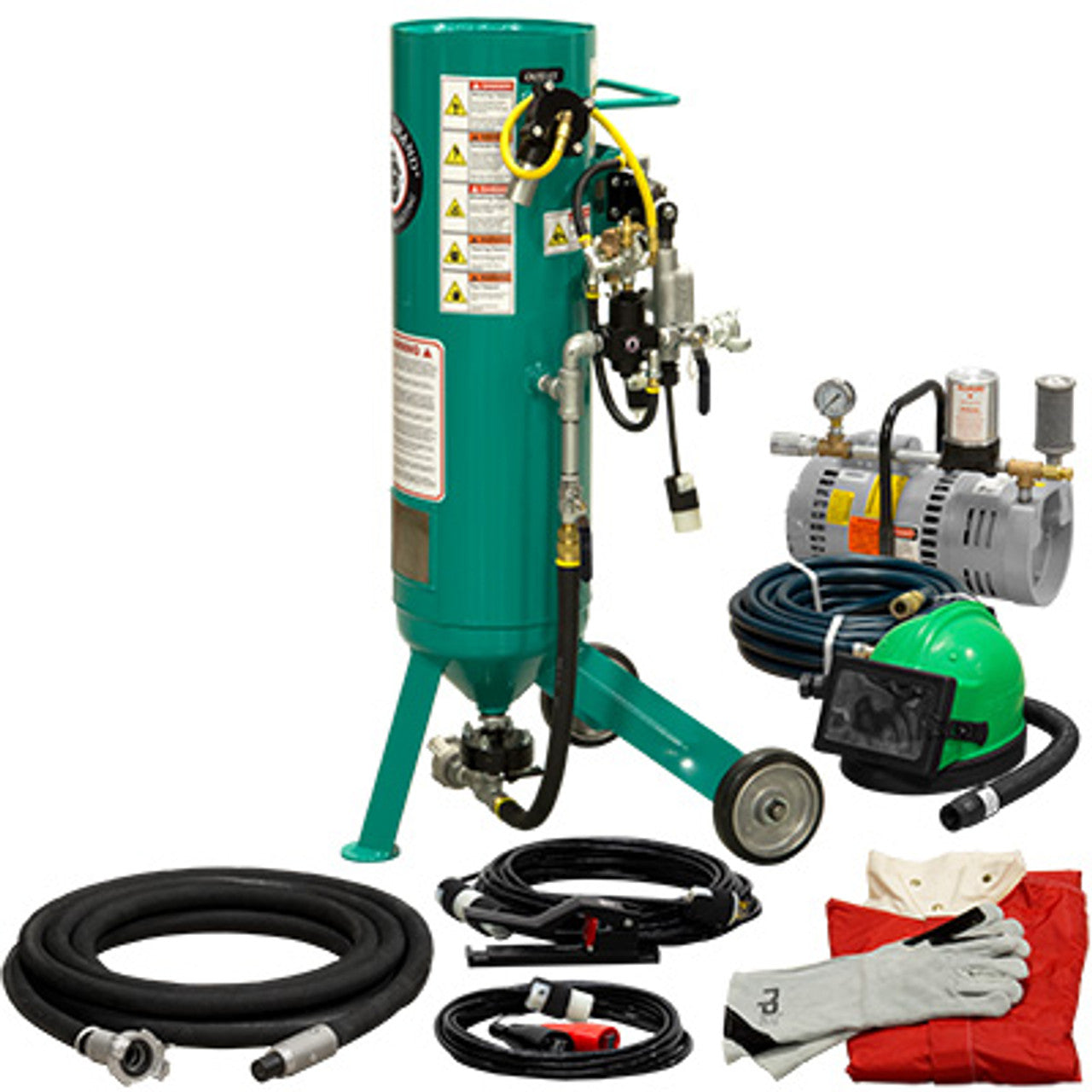

Includes:

• CPR Portable Blaster w/ Electric Controls

• AMV JR. Abrasive Metering Valve

• 55' Electric Control Cord

• Electric #2 Control Handle

• 25’ Blast Hose Assembly w/ Couplings
• #4 Tungsten-Carbide Nozzle
• RPB® ASTRO™ Respirator Package w/ AMBIENT AIR PUMP & 50’ Breathing Hose
• Blast Suit (Large)
• Double Palmed Blast Gloves

Product Highlights:

A. 1.0 CU. FT. CAPACITY (28 LITERS)
      1. 150 PSI VESSEL (10.3 BAR)
      2. A.S.M.E. SECTION VIII DIVISION 1
      3. CRN FOR ALL PROVINCES
B. PRESSURE RELEASE SYSTEM
      1. AUTOMATICALLY BLOWS DOWN THE VESSEL WHEN CONTROL HANDLE IS RELEASED
      2. 1/2" INLET VALVE
      3. 1/2" DIAPHRAGM OUTLET VALVE
C. 1/2" GALVANIZED PIPING FOR CORROSION RESISTANCE
D. HEAVY DUTY FULL PORT BALL VALVES
E. EXTENDED LIFE SCHEDULE 80 HEAVY DUTY NIPPLE WITHSTANDS ABRASIVE WEAR FOR LONGER LIFE
F. FLEX PUSHER LINES WITH M-FLARE FITTINGS
G. AMV JR METERING VALVE

Compatible with the following OEM manufacturers -

TFS is not affiliated with nor is it endorsed by the above manufacturer(s). The product depicted above is not produced or authorized by the above manufacturer(s), with the exception of Forecast Sales/Pirate Brand.
