Pirate Brand - Dry Land™, After Cooler Skid Mounted System - 250 CFM @ 100 PSIG or 360 CFM @ 150 PSIG

Dry Land™, After Cooler Skid Mounted System - 250 CFM @ 100 PSIG or 360 CFM @ 150 PSIG

Manufacturer: Pirate Brand

Part #: DLAC-250-360

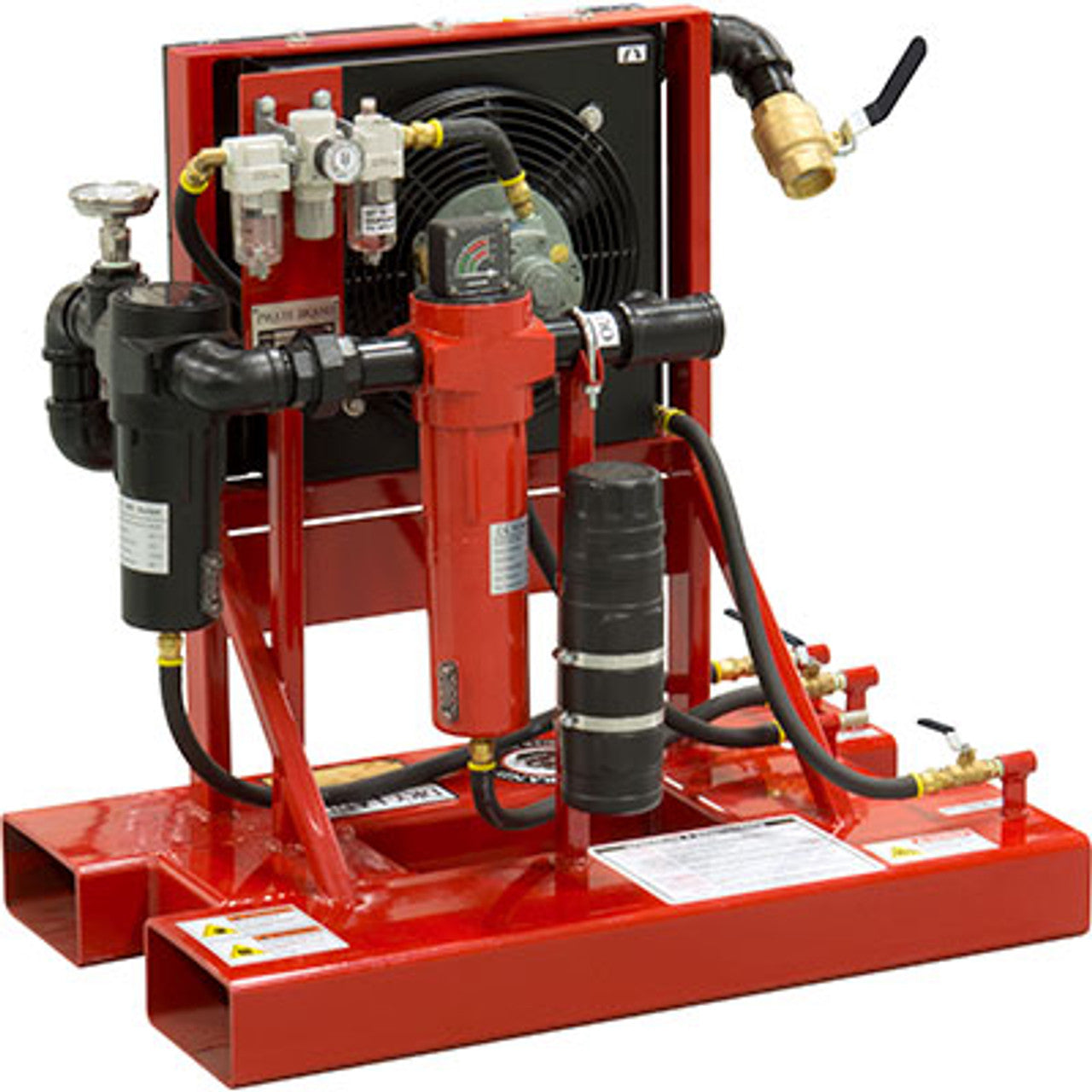

Description: Dry Land™ After Cooler Skid Mounted System. Includes aftercooler, moisture separator, coalescing filter on a powder coated skid. 250 CFM @ 100 PSIG OR 360 CFM @ 150 PSIG

Pirate Brand® Dry Land™ after coolers are a great solution for the mobile blasting and painting contractor when an air dryer is not within the budget. They cool the compressed air allowing most moisture to condensate out and be drained away. However, they do not further reduce the humidity saturation of the air like an air dryer’s absorbent desiccant tank can.

BECAUSE DRY AIR IS CRUCIAL FOR ABRASIVE BLASTING -
The Pirate Brand® Dry Land™ line of air dryers is an ideal solution for mobile blasting contractors.  Wet compressed air clogs blasting pots and compromises the quality of the blasted substrate by putting moisture back on the surface.  The moisture then flashes to rust, necessitating costly re-work.

Features:

• 5 year limited warranty (see warranty documentation for details)
• After cooler (cools incoming air before reaching desiccant)
• Moisture separator
• Coalescing filter
• Air temperature gauge (great for troubleshooting)
• Filter/regulator/lubricator package for air motor
• No electricity required
• Skid mounted

Specifications:

HOW IT WORKS -
Pirate Brand® Dry Land™ After Coolers are a skid mounted system which includes an after cooler, a moisture filter, and a coalescing filter. Warm air enters the aftercooler where it is cooled to a 10°F to 15°F (5.6°C to 8.3°C) approach to ambient air temperature, water is condensed out during this cooling process. The saturated air and liquid water pass through a moisture separator where airborne water droplets are separated out. Next the air passes through a coalescing filter where any oil contaminants from the compressor are removed before it flows through the after cooler outlet.

Compatible with the following OEM manufacturers -

TFS is not affiliated with nor is it endorsed by the above manufacturer(s). The product depicted above is not produced or authorized by the above manufacturer(s), with the exception of Forecast Sales/Pirate Brand, RPB Safety, and Bullard.

Parts and Accessories:

• FD2-100 - DRY-O-LITE DESICCANT 50 LB BAGS (x4 required to fill)
• L145AA - COALESCER FILTER ELEMENT, L145
• 524-292 - GASKET, HANDWAY, 4" x 6"
• 10-112RED-025-1 - 1-1/2" AIR HOSE ASSEMBLY (RED) W/COUPLINGS (25')
• 10-112RED-050-1 - 1-1/2" AIR HOSE ASSEMBLY (RED) W/COUPLINGS (50')
• 10-200YEL-050-1 - 2" AIR HOSE ASSEMBLY (YELLOW) W/COUPLINGS (50')
• UF-150 - AIR HOSE COUPLINGS, 4 LUG, 1-1/2" FEMALE NPT
• UF-200 - AIR HOSE COUPLINGS, 4 LUG, 2" FEMALE NPT
• 888-3029-10899PB - NIPPLE, TBE, GALV, 1-1/2" x CLOSED
• 888-3029-10999PB - NIPPLE, TBE, GALV, 2" x CLOSED
• VB150 - BALL VALVE, FULL PORT, 1-1/2" NPT
• VB200 - BALL VALVE, FULL PORT, 2" NPT
• 27WT-2 - CABLE, SAFETY, HOSE SIZE 1-1/2" TO 3", HOSE TO EQUIPMENT
• 888-1124-11808PB - STATIONARY MANIFOLD

You may be contacted with a freight quote for shipping
