Pirate Brand - Large Range Carriage Set, Optional, for the Typhoon™ Pipe Blaster, 40" to 60"

Manufacturer: Pirate Brand

Part Number: 016500

Description: TYPHOON PIPE BLASTER, OPTIONAL LARGE RANGE CARRIAGE SET, 40" TO 60"

Fitting the Large and Mid Range Carriages

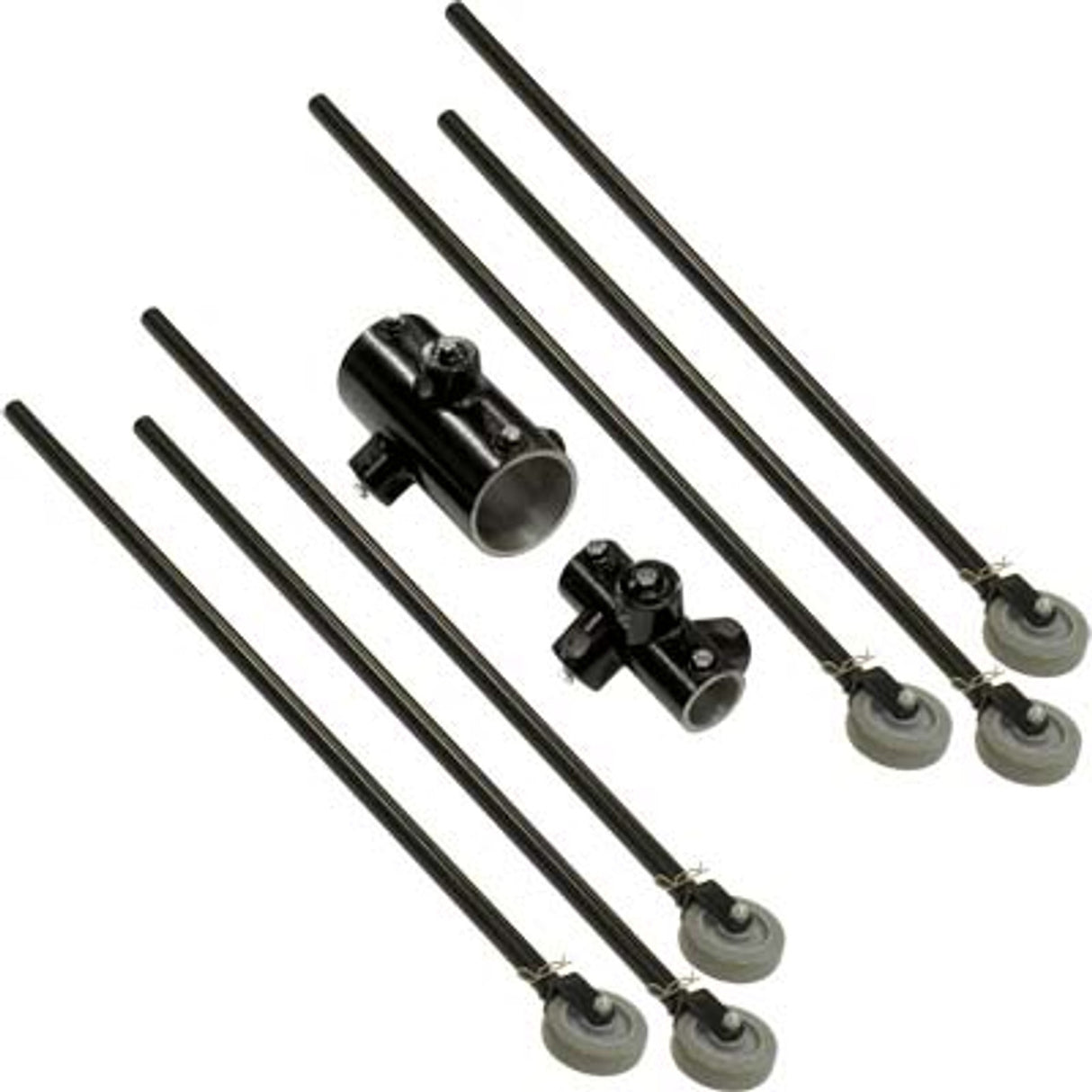

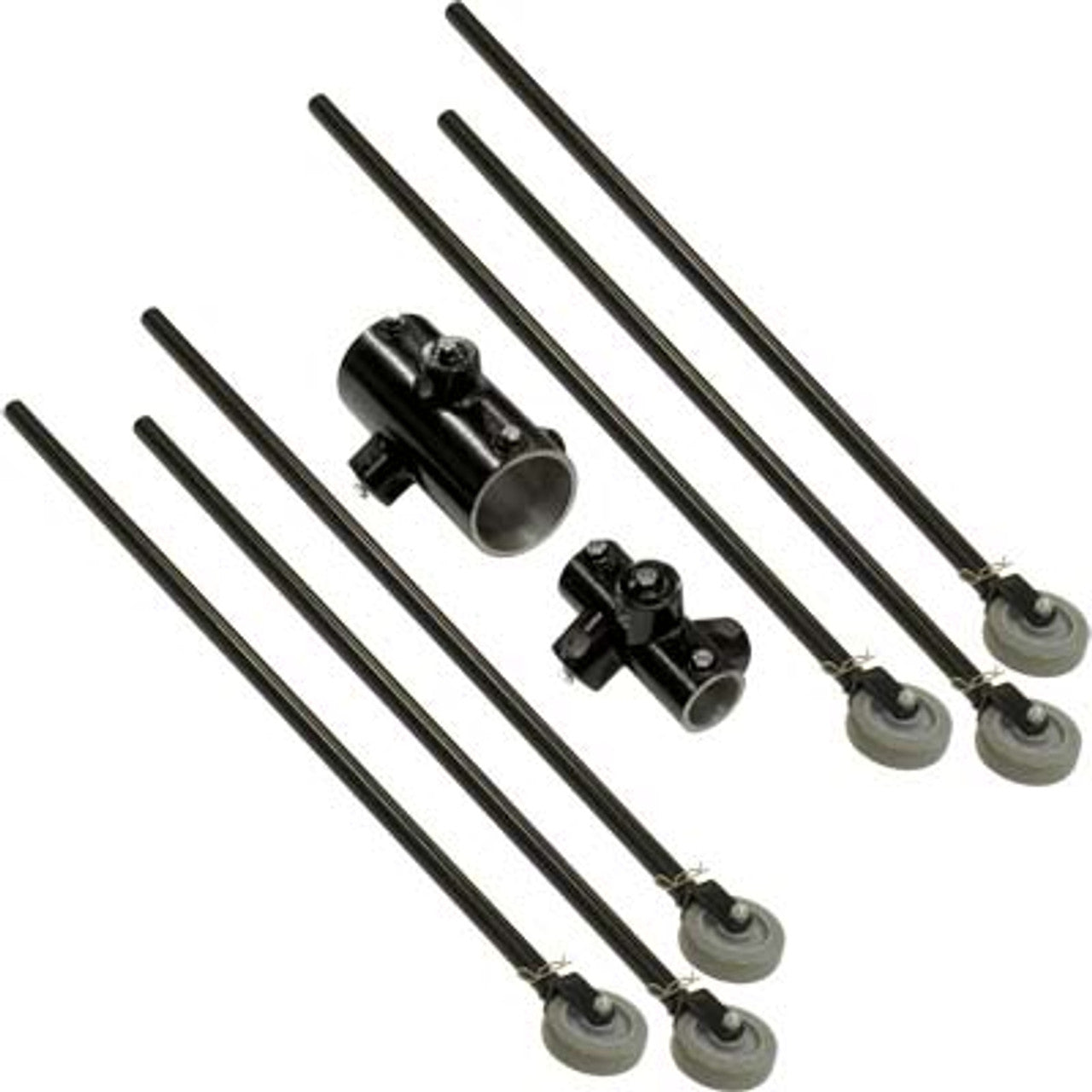

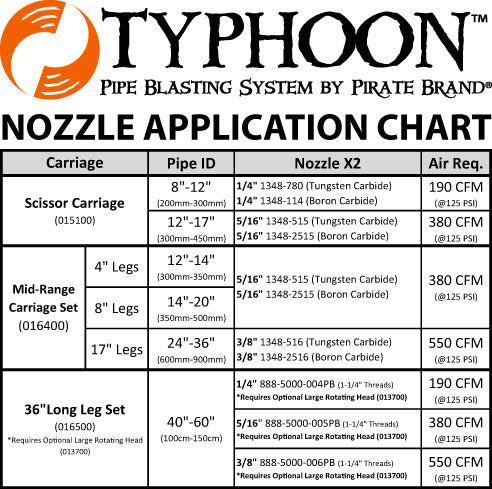

The mid range carriage set (016400) is supplied with a front carriage body, a rear lance carriage body and 9 leg assemblies. The large range carriage set (016500) is supplied with a front carriage body, a rear lance carriage body and 3 leg assemblies.

Slide the back end of the tool into the larger front carriage body, position the front of the body flush with the front face of the centrifugal speed limiter housing, ensure that the body is located in front of the breather vent holes on the seal retainer body, do not block the vent holes. Now tighten the two (2) screws on the body to fix the body to the tool.

Fit the smaller lance carriage body to the lance pipe which should be positioned to prevent excess bowing of the lance pipe and angular misalignment of the coupled connections.

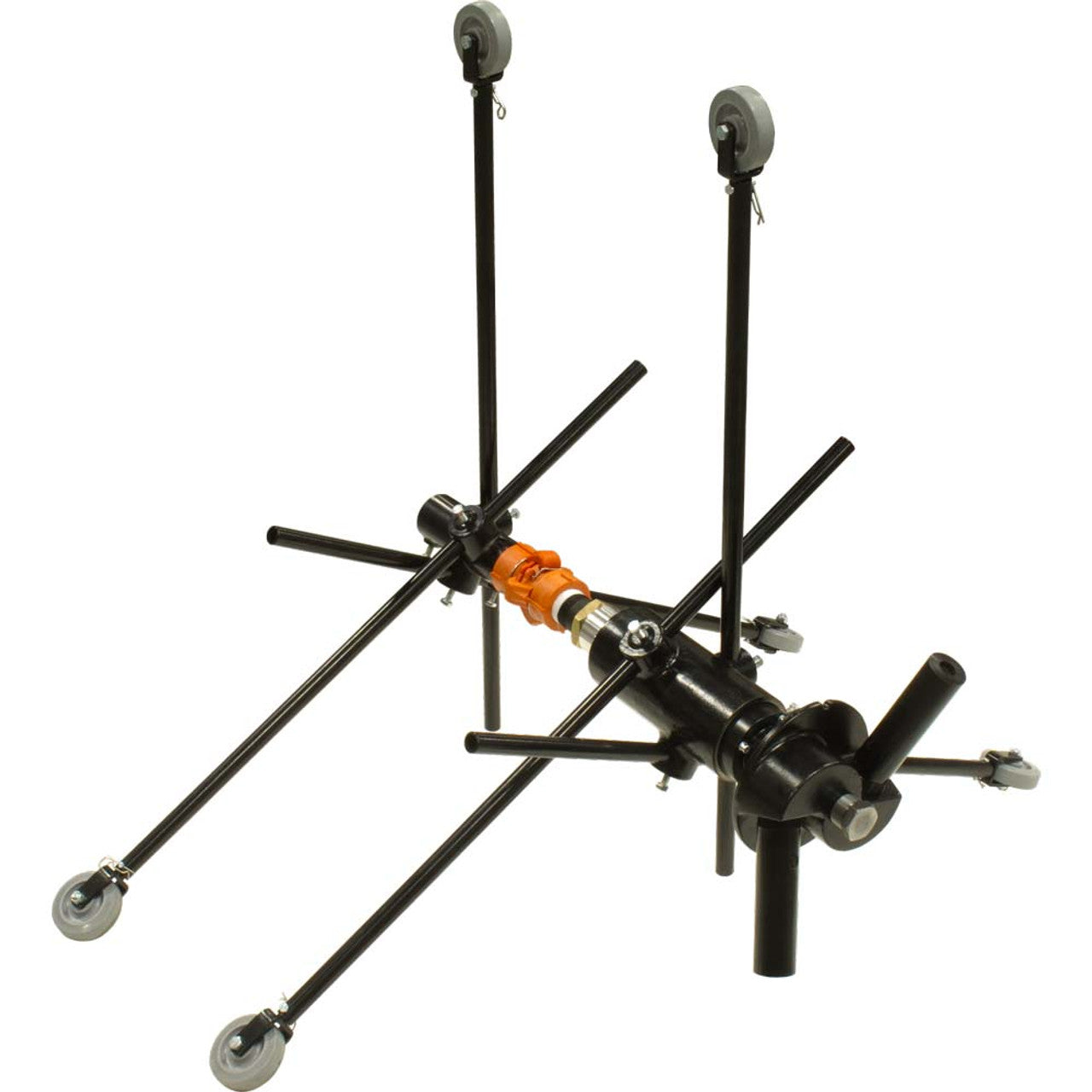

Now fit the appropriate leg assemblies to the front carriage body and rear lance carriage body, adjust so that the tool and the lance are centered in the pipe, and also check that the wheels are in line with the direction of travel.

Note: The large and mid range carriages track best when set up in a “Y” configuration, one leg pointing down.
