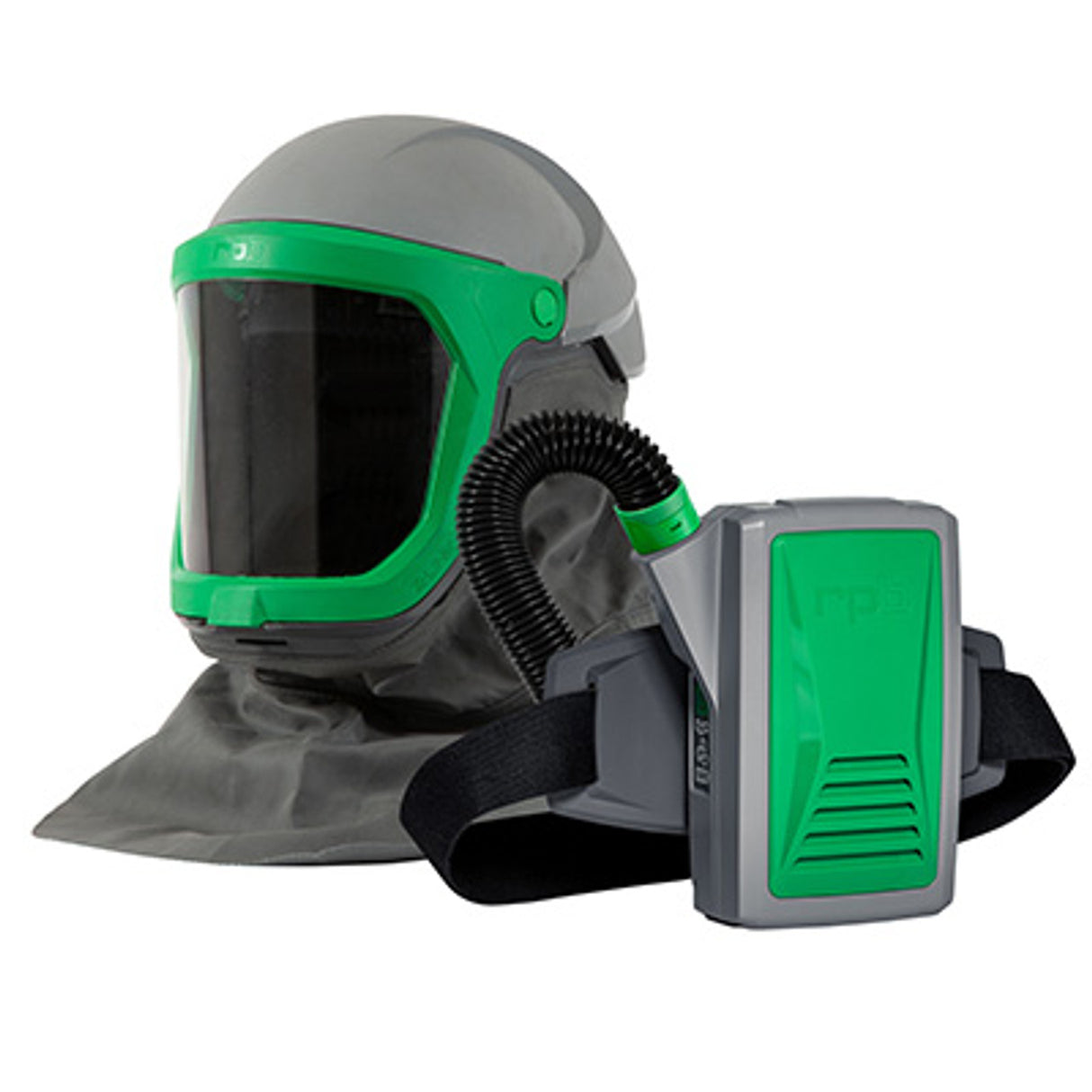

Pirate Brand - RPB®, Z-LINK® Respirator w/ Zytec Fire-Rated Shoulder Cape, PX5 AIR PAPR Belt Mounted Powered Respirator

Pirate Brand - RPB®, Z-LINK® Respirator w/ Zytec Fire-Rated Shoulder Cape, PX5 AIR PAPR Belt Mounted Powered Respirator

Manufacturer: RPB Safety

Part #: 16-018-21-FR

Description: RPB® Z-LINK® RESPIRATOR W/ ZYTEC FIRE-RATED SHOULDER CAPE, PX5 AIR PAPR BELT MOUNTED POWERED RESPIRATOR & HIGH EFFICIENCY HEPA FILTER, ANSI Z87+ SAFETY LENS, ANSI Z89.1 HARD HAT PROTECTION. NOT FOR USE IN WET PAINTING APPLICATIONS.  (NIOSH APPROVAL NO. TC -21C- 1124 TYPE C)

• Ideal for welding and grinding applications.


• Visor hinges open to allow for free air breathing and easy communication.



• Welding visor easily clips over top of main visor and hinges open revealing the impact lens below, making it effortless to check work.



• Widened perspective offers exceptional downward and peripheral vision



• Fixed jaw ensures secure cape attachment.



• Fully-adjustable Comfort Link™ Fit System turbo-charged with a 360-degree adjustable headband to help position nose and eye distance from lens.



• Molded padding within helmet, including removal side padding, evenly distributes weight, reducing wearer fatigue.



• Does not require fit test



• Polystyrene top liner hard hat standard with ANSI Z89.1 protection rating.



• Available in two cape options:
  • Full-Bibbed
  • Face Seal



• Available in three cape materials:
  • Tychem® QC – Ideal for wet painting applications
  • Tychem® SL– Ideal for powder coating applications due to sealed seams
  • ZYTEC® FR – Ideal for grinding and welding



• Choice of four ANSI Z87+ anti-fog/anti-scratch safety visors:
  • PREMIUM CLEAR (16-810)
  • IR-TINTED-SHADE 5 (16-810-IR5)
  • YELLOW TINTED (16-810-YT)
  • SMOKE-TINTED (16-810-ST)



• Optional Quiet-Link™ sound reduction



• Optional Comms-Link™ communication system available - requires and fits in standard side pads



• Optional Vision-Link light available

PX5 Features & Benefits:

• Ingress protection - certified to IP65 rating in use, and certified to IP67 rating with cleaning kit in place.
• Sleek, considered surfaces for ease of decontamination.
• Lightweight - complete system weighs just 2.55lbs.
• PX5 strategically distributes weight through vertical mounting and contouring to the users back.
• The PX5 unit can easily be removed from the belt with the mount lock system.
• Two belt options available - standard and FR rated.
• Long-life lithium-ion battery,lasts 12+ hours on fan speed 1 (low), 9+ hours on fan speed 2 (medium) and 8+ hours on fan speed 3 (high).
• The battery is sealed inside the unit so it will not disconnect or bump off while operating.
• Our filter media removes up to 99.97% of particulates down to 0.12 microns.
• Filter safety - the filter door cannot mount to the unit unless a filter is fixed in place.
• LED user interface indicates airflow, fan speed and battery level.
• Alarming - visual, audible, and vibrating alarms alert the user to low battery level, or when airflow falls below the minimum requirements due to the filter needing replacing, or an obstructed airflow.
• US and Global patents pending.

Recommendations:

• Replace the pre-filter on PX5 daily to enhance the life of the main filter cartridge.

Literature:

• Brochure
• Manual
• Line Drawing
