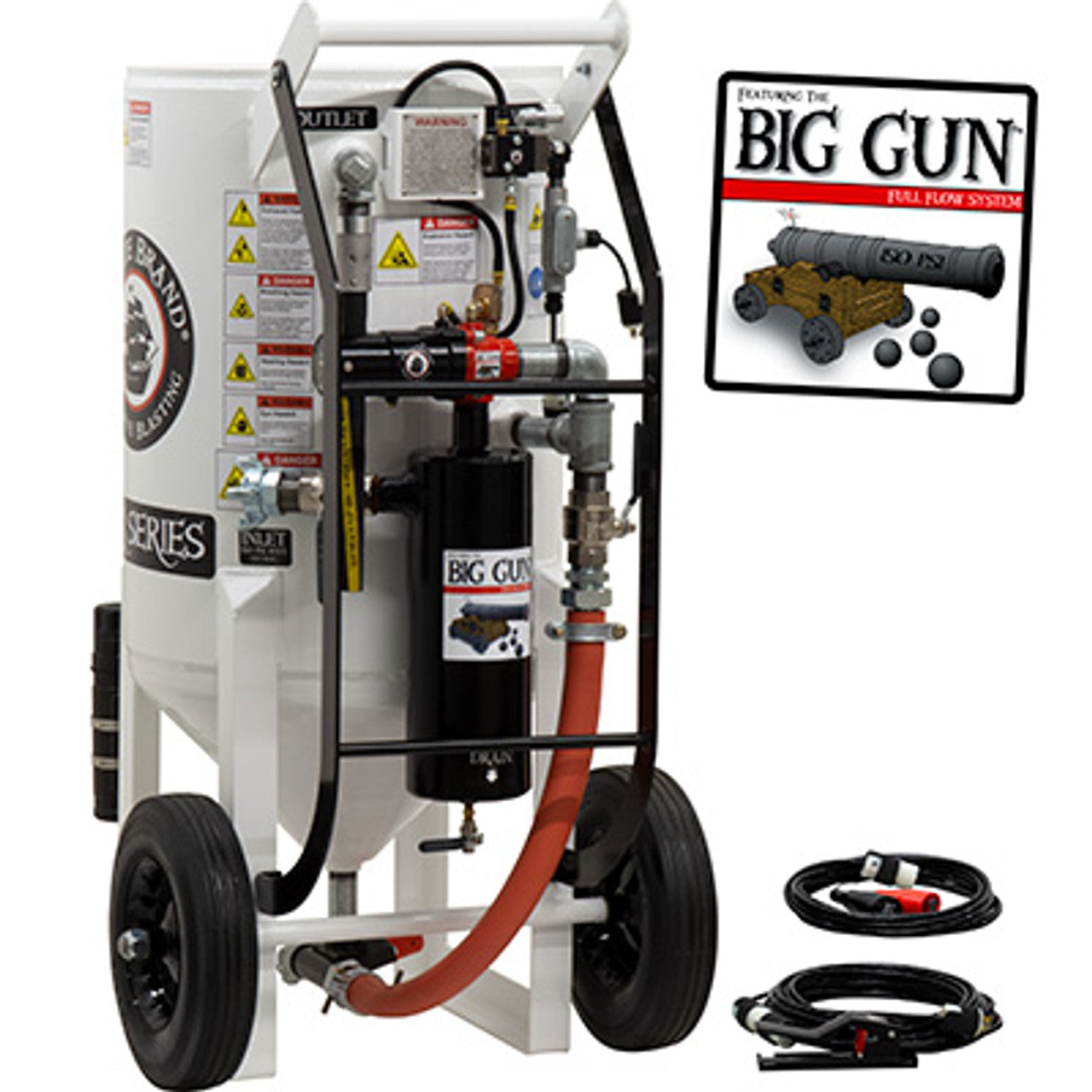

Pirate Brand, S-Series - BIG GUN™, 6.5 cu ft. - Blast Pot, Portable, Pressure RELEASE System, 12VDC Electric Controls

Pirate Brand, S-Series - BIG GUN™, 6.5 cu ft. - Blast Pot, Portable, Pressure RELEASE System, 12VDC Electric Controls

Manufacturer: Pirate Brand

Part Number: 888-0532-12914PB

Description: Portable abrasive blaster, 6.5 cu. ft.,150 PSI (10.3 BAR), pressure release system with 12VDC electric controls, MPV / Combination valves & moisture separator.

WHEN USING STEEL ABRASIVES, ELECTRIC CONTROL HANDLE #2 (888-2263-401PB) AND SEALED CONNECTOR(S) (PB-31131) ARE REQUIRED

Includes:

• BIG GUN™ 1-1/2 Combination Valve
• BIG GUN™ Full Port Blast Hose Connection
• 55’ X-Treme™ Duty Control Cord Assembly
• Electric Control Handle #2

Product Highlights:

A. 6.5 CU. FT. CAPACITY (185 LITERS)
     1. 150 PSI VESSEL (10.3 BAR)
     2. A.S.M.E. SECTION VIII DIVISION 1 C.R.N. FOR ALL PROVINCES
     3. C.R.N. FOR ALL PROVINCES
B. PRESSURE RELEASE SYSTEM
     1. AUTOMATICALLY BLOWS DOWN THE VESSEL WHEN CONTROL HANDLE IS RELEASED
     2. LOW MAINTENANCE DESIGN
     3. SIMPLE TROUBLE SHOOTING FOR IN FIELD REPAIRS
C. ELECTRIC CONTROLS 12VDC
     1. WHEN RUNNING OVER 100 FEET OF BLAST HOSE THIS ADDS ADDITIONAL SPEED TO STOPPING & STARTING THE BLASTING OPERATION
     2. HELPS WITH FREEZING PROBLEMS IN COLD WEATHER
     3. HEAvY DUTY FILTERED CONTROL VALVE ADDS ADDITIONAL SPEED TO STOPPING THE BLASTING WHEN CONTROL HANDLE IS RELEASED
D. BIG GUN FULL FLOW SYSTEM PROVIDES
     1. A ZERO PRESSURE DROP PATH FOR AIR & ABRASIVE TO TRAVEL TO THE BLAST NOZZLE FOR EVERY 1 PSI GAINED OR LOST IN ABRASIVE BLASTING = 1.5% PRODUCTION
     2. A MUST FOR #7 & #8 NOZZLES
     3. FULL PORT COUPLING BLAST HOSE CONNECTION PROVIDES AN UNRESTRICTED PATH FOR AIR & ABRASIVE TO TRAVEL TO THE NOZZLE
E. HEAVY DUTY BIG GUN MOISTURE SEPARATOR
F. 1-1/2" GALVANIZED PIPING FOR CORROSION RESISTANCE
G. HEAVY DUTY FULL PORT BALL VALVES
H. EXTENDED LIFE SCHEDULE 80 HEAVY DUTY NIPPLE
     1. WITHSTANDS ABRASIVE WEAR FOR LONGER LIFE
I. BOLT CLAMPS ON PUSHER LINE MAKE FIELD REPAIRS EASIER
J. COMBINATION VALVE/MPV VALVE
     1. COMBINATION VALVE IS A 2 IN 1 DESIGN THAT WILL STOP THE AIR BLASTING AND RELIEVES THE PRESSURE FROM THE VESSEL WHEN THE CONTROL HANDLE IS RELEASED
     2. MANUAL PLUNGER VALVE (MPV) IS A SIMPLE RELIABLE DESIGN THAT PROVIDES A WIDE RANGE OF ADJUSTMENT OF ABRASIVE FLOW TO THE NOZZLE
K. INCLUDES LOADING SKID/VALVE GUARD

Compatible with the following OEM manufacturers -

OEM Manufacturer	Part No.
SCHMIDT MANUFACTURING / U.S. FILTER / AXXIOM MANUFACTURING	0531-128-11
SCHMIDT MANUFACTURING / U.S. FILTER / AXXIOM MANUFACTURING	0531-129-11



TFS is not affiliated with nor is it endorsed by the above manufacturer(s). The product depicted above is not produced or authorized by the above manufacturer(s), with the exception of Forecast Sales/Pirate Brand.
