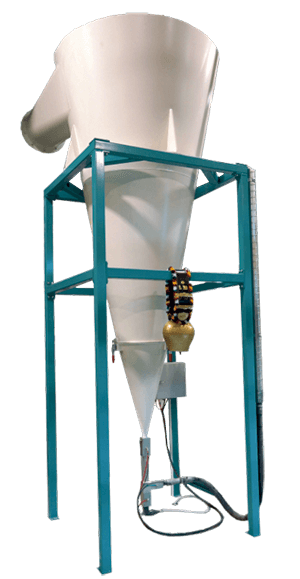

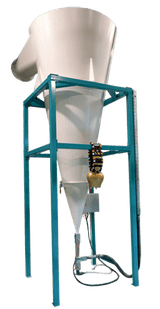

Powder Recovery Unit Cyclone
Description
Description
Manufacturer: MS Powder
Part Number: 812151
Description: The powder / air mixture is extracted from the powder booth enclosure through specially configured, self-cleaning duct work. This design eliminates the possibility for powder contamination in the extraction duct.
Convenient clean-out access ports are provided for routine maintenance.
Tangential air movement within the trapezoidal design separates powder from the air stream and is proven efficient to 97%.
MS Cyclone Features:
- Cyclone capacity range: 4,000 to 28,000 m³/hr. (2,400 to 16,800-CFM).
- Trapezoid conical design, top to bottom for most efficient automatic cleaning and most efficient powder recovery.
- Provides overall powder reclaim efficiency to 97%.
- Swing-out cone for ease of access and maintenance.
- Powder feed return peristaltic pump system for reclaim, or spray to waste operation.
- Integrated system powder vacuum cleaner.
- No sieve screen in cyclone tail section eliminates potential for powder contamination in cyclone.
