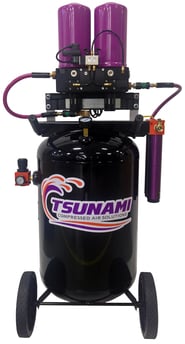

Pure Regenerative Dryers - Tsunami Rove
Manufacturer: Tsunami
Part Number: 21999-0945, 21999-0945-PP, 21999-0945-PP-MM
The Pure-10 Series Regenerative Dryer is rated for 40 CFM airflow, and fitted for 10 Hp compressors. The Pure-10 system uses a Solenoid Timer Valve to control the dryer and Tsunami pre-filtration to assure the removal of water, oil, and particulates before entering the dryer.
Key features
- 2-stage Pre-filtration; Water Separator, Oil Coalescing Filter
- Molecular Sieve Desiccant
- Solenoid Valve Timer
- Pneumatic Drains
- 1-gallon Storage Tank
- The lightweight, metal stand allows for ultimate portability
- Purge Exhaust Mufflers
- Wall Mounting Brackets
- Outlet Regulator
Key Benefits
- Low relative humidity - down to .01% RH
- Dew points down to -80°F
- Easy. low-cost maintenance - under $100/ year average
| Part Number | 21999-0945 | 21999-0945-PP | 21999-0945-PP-MM |
| Horsepower | 10 |
10 |
10 |
| Max CFM: | 40 |
40 |
40 |
| Port Size (NPT): |
1/2" Inlet 1/2" Outlet |
1/2" Inlet 1/2" Outlet |
1/2" Inlet 1/2" Outlet |
| Drain: | Float |
Float |
Pneumatic |
| Max PSI: | 175 PSI | 175 PSI | 175 PSI |
| Max Temp: | 150 Degrees F | 150 Degrees F | 150 Degrees F |
| Dimensions: |
53" X 33" X 22" |
53" X 33" X 22" |
53" X 33" X 22" |
Site Navigation -
Literature -
Spare Parts -
| Part |
Part Number |
Description |
| A | 21999-0707 | Piston Replacement Kit for Regenerative Dryers |
| B | 21999-0976 | Tsunami Tower Replacement Pure 1, 3, 5 |
| B | 21999-0976-BK | Tsunami Tower Replacement Pure 1, 3, 5 - Black |
| B | 21999-0349 | Tsunami Tower Replacement Pure 7, 10, 20, 30 & Ultra Dryers |
| B | 21999-0349-BK | Tsunami Tower Replacement Pure 7, 10, 20, 30 & Ultra Dryers Black |
| C | 21999-0672-10 | PLC Controller -10 HP Regenerative Dryer |
| C | 21999-0672 | PLC Controller -15 HP+ Tsunami Regenerative Dryer |
| C | 21999-0672-BK | Custom Dryer PLC - No Drains |
| 21999-0951 | Pneumatic Timer Control - Two Outputs | |
| 21999-0714 | PLC Power Supply for Tsunami Regenerative Dryer | |
| 21999-0941 | Tsunami Timer Valve Assembly | |
| 21999-0797 | Tsunami Air Valve Replacement | |
| 21999-0504 | 12v DC Timer / Coil Assembly | |
| 21999-1012-24 | 24v DC Timer / Coil Assembly | |
| 610928-01 | 110v AC Timer / Coil Assembly | |
| 610934-01 | 220v / 230v AC Timer / Coil Assembly | |
| 21999-0650 | Tower Mounting Stud / Dryer Regen. Valve - Pure 7, 10, and Ultra Series Dryers | |
| 21999-1108 | Tower Mounting Stud / Dryer Regen. Valve - Pure 1, 3, & 5 Series Dryers | |
| 940825 | Muffler Replacement - Pure 1, 3, 5, 7, Only | |
| 21999-0700 | Muffler Replacement - Pure 10 and Ultra Series | |
| 21999-1046 | Muffler Core Replacement (10pc Minimum Order Quantity - Pure-10 & Ultra Dryers Only) | |
| 21999-1042 | Tsunami Dryer Heater 110/120v AC, 700W | |
| 21999-0890 | Tsunami Dryer Heater 12v DC, 120W | |
| 21999-0937 | Tsunami Dryer Heater 24v DC, 120W | |
| 21999-0712 | Energy Saver Kit (Ultra dryer accessory only) | |
| 21999-1038 | Modular Dryer Subassembly Replacement - Ultra / Pure-10-20-30 |
