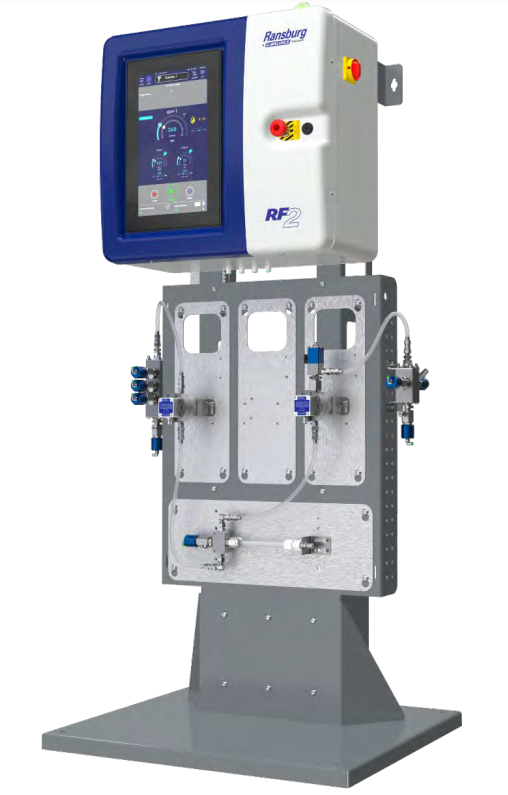

Ransburg IntelliFlow RF2 Manual - 2K Proportioner, Low Pressure

Ransburg IntelliFlow is the next generation of intuitive, accurate, connected proportioning.

Manufacturer: Ransburg

Part #: RF2-LM2-XX-XX-S

Description: Low Pressure, 300 psi (20 Bar), Manual Application

Two-Component (2K) Metering, Mixing, and Flow Control Proportioner. For applications requiring 3K, please contact us at (844) 898-1082 for a quote.

Ransburg’s IntelliFlow family of products brings advanced automation and ease of use to drive efficiency, uptime, and optimization in your process. Large, full-color touchscreens with automated processes significantly reduce training time and ensure operator mistakes are avoided. Cloud-based connectivity allows the equipment to be monitored and troubleshooted in real-time from anywhere in the world. And flexible, high-performance fluid components deliver superior ratio and flow accuracy while maximizing coating and solvent waste savings.

Intuitive, Full-Color 15″ Touchscreen

• Easy to learn interface will feel natural to both new and experienced operators
• Streamlined primary operation screens show just the information you need to know, alongside a full suite of customization options to tailor the equipment to your process
• Automate common processes and avoid costly mistakes to increase productivity and uptime
• Visible alarms tell you what the error is, and exactly how to fix it, reducing troubleshooting time

Seamless Connectivity and Integration

• EtherNet/IP communication comes standard for seamless integration with your PLC, robot, or SCADA system, with many other protocols also available
• Unit can be operated completely remotely by sending trigger signals, color change, flowrate, and ratio commands
• Cloud-based remote monitoring allows the equipment to be securely operated or diagnosed in real-time from anywhere in the world
• Track and export organized process data in real-time or batches for process improvement and VOC reporting

The Best-In-Class Fluid Performance

• True closed-loop flow and ratio control delivers unmatched accuracy, ensuring the coating is mixed and metered correctly every time
• Proven dynamic mixing reduces paint and solvent waste during each color change, driving significant savings for your business
• Standard air-solvent chop reduces solvent usage by up to 65%
• Critical components are designed with reliability and serviceability in mind, increasing uptime and minimizing unexpected downtime

Flexible, Scalable Solutions To Improve Any Process

• Flexible fluid configurations available to meet the needs of all major low and high pressure solventborne, waterborne, electrostatic, or non-electrostatic coatings.
• Up to 100 colors + hardeners + 3K with programmable changes, flushes, and recipes.

• Wide array of accessories available to tailor the equipment to your exact process.
• Modular design allows the equipment to grow with your business: Easily add additional colors, catalysts, and fluid circuits as your process expands.

4 Options to select from:

*Order low pressure color and catalyst stacks separately

How to select your configuration:

1. Select number of colors and catalysts
2. If your desired number of colors and catalysts is not listed, order a 1-color 1-catalyst configuration and order color stacks separately
3. Select between additional items listed in the Parts and Accessories section below.

All configurations include the following:

• 15" full color touchscreen with EtherNet/IP communication
• Solenoids for up to 12 colors, 4 catalysts
• Solvent and Air Chop valves on color stack (except 1-color configs.)
• Solvent valves on catalyst stack (except 1-catalyst configs.)
• 2 high-resolution gear flowmeters
• Pulse valve ratio control
• Dynamic mix block (flushable)
• Wall mounting hardware (floor stand available in parts and accessories below)
• 2-gun air cutoff kit
• Manual outlet regulator

Parts and Accessories:

• (310-2002) Floor Stand Kit, RF2
• (HGB-510-R1-CO) HGB Inlet Pressure Regulator
• (CCV-51XX-XXX) Low Pressure Color Change Stack
• (CCV-503-SS) Low Pressure CCV Valve
• (54-9XX) Low Pressure In-Line Filter
• (240-5203) Remote Color Change Kit
• (310-8020) In-booth Fluid Panel Kit - 2 Channel Std
• (310-8021) In-booth Fluid Panel Kit - 3 Channel Std
• (310-8022) In-booth Fluid Panel Kit - 2 Channel Fiberoptic
• (310-8023) In-booth Fluid Panel Kit - 3 Channel Fiberoptic
• (310-900X) Gear Flowmeter
• (310-8030) Screen Protector Kit
• (310-3905-SS) Air cutoff kit, 2 guns (required for RF2 Manual custom systems)
• (HGB-609-9-R38) Manual Regulator, LP
• (310-4170) Wi-Fi Module
• (240-5205-X) Gun Flush Box Kit, 1 or 2 Gun
• (240-3198-X) Flush Box Saddles - Various Gun Models
• (310-4142) Comms Gateway, EtherNet IP
• (310-4143) Comms Gateway, Profinet
• (310-4144) Comms Gateway, DeviceNet
• (310-4145) Comms Gateway, CC-Link
• (310-4146) Comms Gateway, EtherCAT

Literature:

Manual
