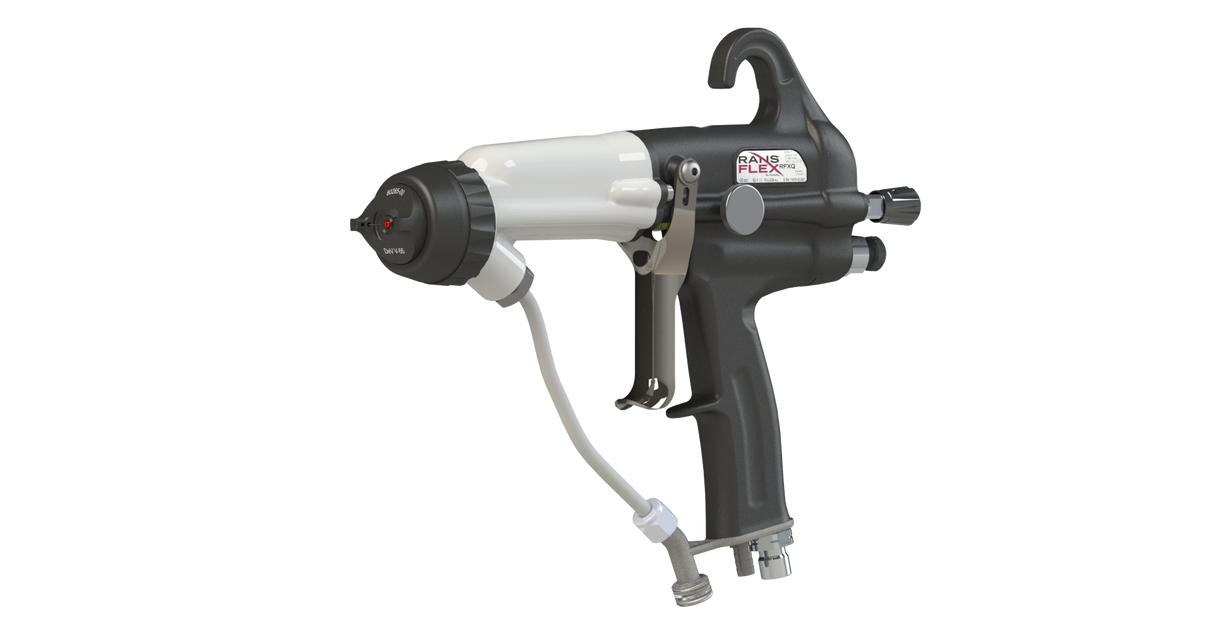

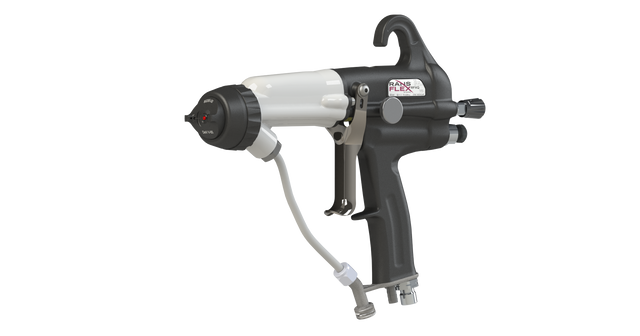

Ransburg RansFlex RFXQ Electrostatic Gun
Ransburg RansFlex RFXQ Electrostatic Gun
Ransburg RansFlex RFXQ Electrostatic Gun

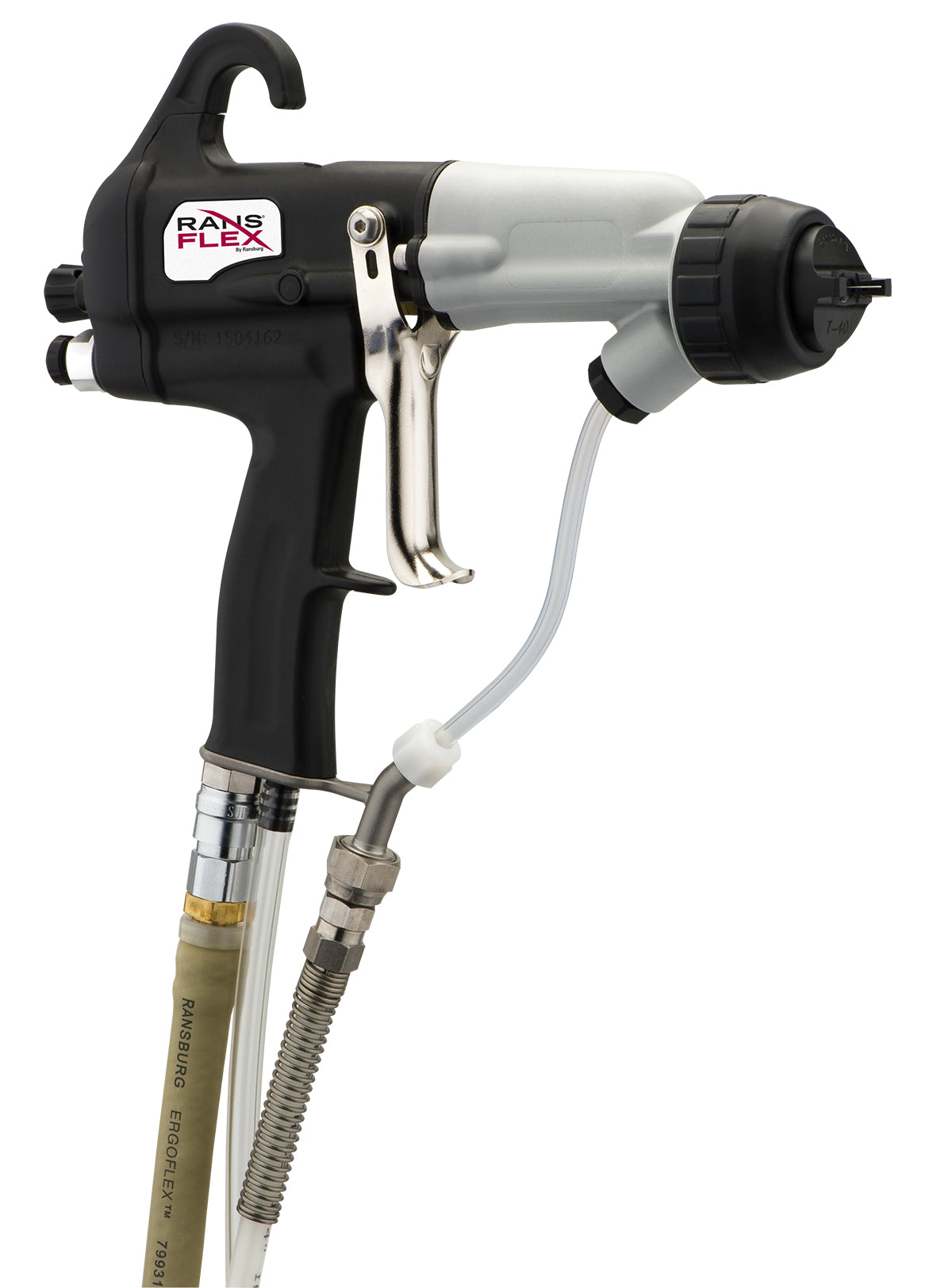

High Performance Electrostatic Manual Gun
Manufacturer: Carlisle Ransburg
Part Number: 81565-011207, 81565-011212, 81565-111101, 81565-111102, 81565-111112, 81565-111116, 81565-811117
Description: Advanced RansFlex Finishing Applicators Integrate The Best of Both Worlds, Ransburg® Electrostatics With Legendary DeVilbiss Atomization Technology.
Smaller, lighter-weight RansFlex RX and RFX applicators feature enhanced, proprietary cascade and atomization technology. These advancements provide a compact applicator with the equivalent—or better—performance and transfer efficiency of higher voltage competitive guns.
The RansFlex Quick Fan Adjust applicator is an air-atomizing electrostatic applicator powered by an onboard generator that provides best-in-class atomization in a lightweight, user-friendly applicator. The RFQ and RFQX both offer superior finish quality, surpassing competitors’ larger, higher voltage applicators in a small compact size.
The new “Quick Fan Adjust” button allows operators to easily go from a large to a small fan pattern by simply depressing the button located on the side of the gun. This new feature allows the operator to keep the line moving, increasing production.
-
Divorced generator air supply cartridge protects strategic internal components. Sealed nozzle/atomization passages to protect internal components from solvent or fluid invasion.
-
Increased transfer efficiency
-
Significantly increases quality and production
-
Positive environmental impact
-
Reduces overspray, air pollution, and VOC emissions
-
Decreases coating costs
-
More consistent part-to-part quality
-
Reduced costs for the disposal of hazardous materials
-
Ergonomic fit, feel, and balance
-
Operators experience less stress on joints and muscles
Specifications
|
Material: |
Solvent Base |
|
Weight w/o Hoses: |
620g (22oz) |
|
Height: |
190.5mm (7.5”) |
|
Width Max: |
41.2mm (1 5/8”) |
|
Length: |
273mm (10 3/4”) |
|
Operating Voltage: |
65 kV |
|
Max Current: |
120 microamperes |
|
Fluid Flow Capacity: |
1,000ml/min |
|
Wetted Parts: |
Stainless, Polyethylene, Nylon, Acetal Polymer |
|
Operating Pressure |
|
|
Fluid: |
0–6.9 bar (1–100 psi) |
|
Air: |
0–6.9 bar (1–100 psi) |
|
Ambient Temperature: |
40°C to 5°C (104°F to 32°F) |
|
Consumption (With Voltage): |
|
|
Sound Level: |
Atomization Table
|
“A” Dash N0. |
“A” Dash Description |
“R” Dash (Air Cap) |
“S” (Fluid Nozzle) |
“T” (Pressure Reducer) |
|
V Series1.2mm |
||||
|
V Series 1.4mm |
||||
|
V Series 1.8mm |
||||
|
C Series 1.2mm |
||||
|
C Series 1.4mm |
||||
|
C Series 1.8mm |
||||
|
T Series 1.2mm |
||||
|
T Series 1.4mm |
||||
|
T Series 1.8mm |
||||
|
ROUND SPRAY |
Fluid Control Table
|
“B” Dash No. |
“B” Description |
“U” |
|
1 |
Adjustable Fluid* |
80717-00 |
|
2 |
Non-Adjustable Fluid* |
80717-01 |
Trigger Table
|
“C” Dash No. |
“C” Description |
“V” |
|
1 |
2 Finger Trigger |
|
|
2 |
4 Finger Trigger |
|
|
3 |
2 Finger Small Profile |
Fluid Inlet Table
|
“D” Dash No. |
“D” Description |
“W” |
|
1 |
STD Fluid Inlet Tube |
|
|
2 |
Coiled Fluid Tube, Cover |
Fluid Hose Table
|
“E” Dash No. |
“E” Description |
“X” |
|
0 |
No Fluid Hose |
— |
|
1 |
Fluid Hose, 10m |
|
|
2 |
Fluid Hose, 15m |
|
|
3 |
Fluid Hose, 20m |
|
|
4 |
Fluid Hose, 30m |
Air Hose Table
|
“F” Dash No. |
“F” Description |
“Y” |
“Z” |
|
0 |
No Air Hose, Standard |
— |
|
|
1 |
Standard Air Hose, 05m |
||
|
2 |
Standard Air Hose, 10m |
||
|
3 |
Standard Air Hose, 15m |
||
|
4 |
Standard Air Hose, 20m |
||
|
5 |
No Air Hose, QD |
— |
|
|
6 |
QD Air Hose, 05m |
||
|
7 |
QD Air Hose, 10m |
||
|
8 |
QD Air Hose, 15m |
||
|
9 |
QD Air Hose, 20m |

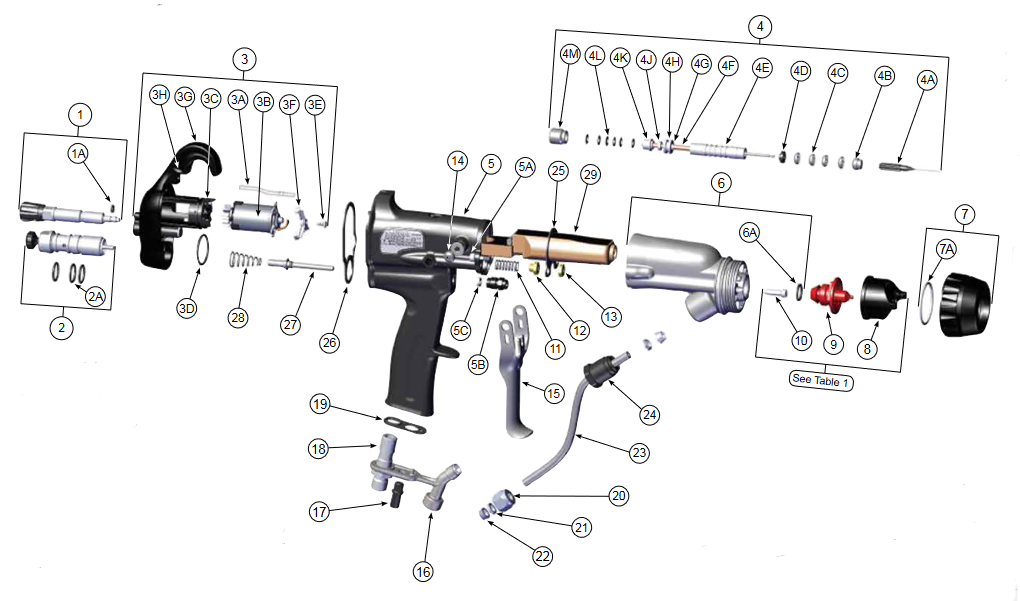

Spare Parts List
|
Item# |
Part Number |
Description |
Quantity |
|
1 |
ASSEMBLY, FAN VALVE (INCLUDES ALL PARTS SHOWN) |
1 |
|
|
1A |
O-RING, SOLVENT PROOF |
1 |
|
|
2 |
|
ASSEMBLY, FLUID CARTRIDGE (INCLUDES O-RINGS SHOWN) ASSEMBLY, FLUID CARTRIDGE (NON-ADJUSTABLE) INCLUDES 0-RING |
1
1 |
|
2A |
O-RING, SOLVENT PROOF |
3 |
|
|
3 |

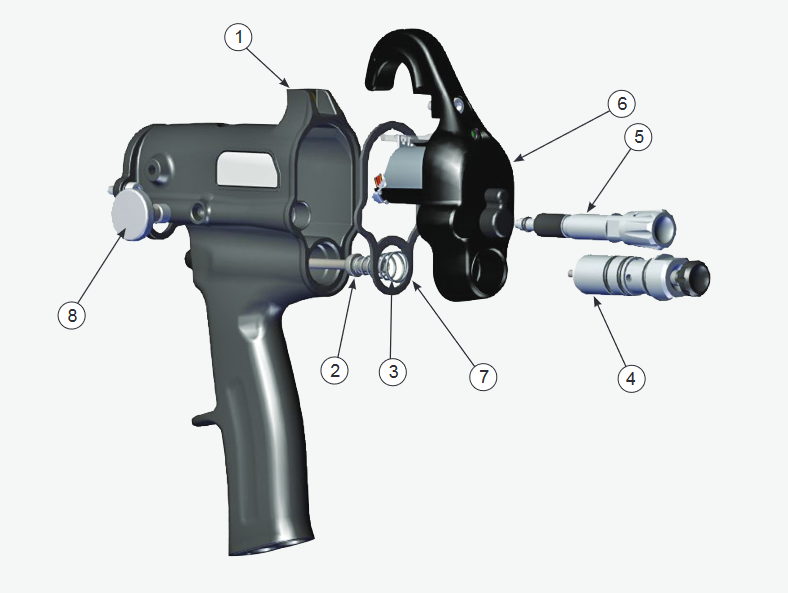

COVER, REAR ASSEMBLY |
1 |
|
|
3A |
PIPE, LIGHT |
1 |
|
|
3B |
ASSEMBLY, MOTOR |
1 |
|
|
3C |
BLOCK, PORTING |
1 |
|
|
3D |
O-RING, SOLVENT RESISTANT |
1 |
|
|
3E |
SCREW |
1 |
|
|
3F |
BRACKET, LOCKING |
1 |
|
|
3G |
COVER, REAR |
1 |
|
|
3H |
SCREW, REAR COVER |
1 |
|
|
4 |

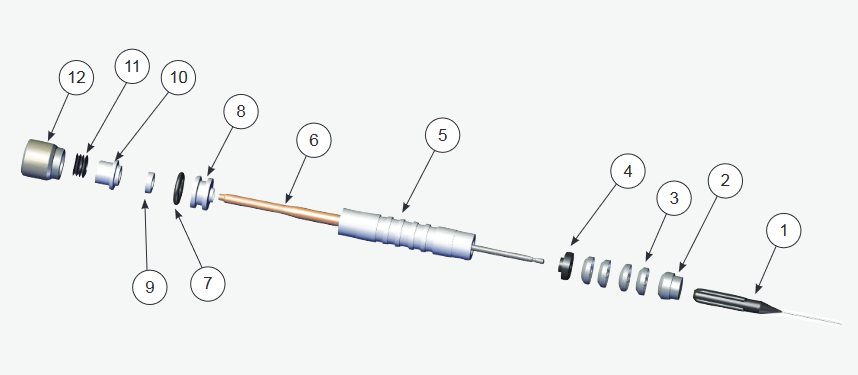

NEEDLE SHAFT ASSEMBLY |
1 |
|
|
4 |
NEEDLE SHAFT ASSEMBLY |
1 |
|
|
4A |
ASSEMBLY ELECTRODE, HIGH WEAR KIT OF 3 ELECTRODES |
1 1 |
|
|
4B |
ADAPTER, MALE |
1 |
|
|
4C |
14323-00 |
SEAL, CHEVRON, 3/8 DIA. SEAL, CHEVRON (KIT OF 4) |
4 1 |
|
4D |
ADAPTER, FEMALE, CHEVRON |
1 |
|
|
4E |
TUBE, PACKING RX (45kV) TUBE, PACKING RFX (65kV) |
1 1 |
|
|
4F |
NEEDLE SHAFT ASSEMBLY RX (45kV) NEEDLE SHAFT ASSEMBLY RFX (65kV) |
1 1 |
|
|
4G |
O-RING, SOLVENT PROOF |
1 |
|
|
4H |
RETAINER, NEEDLE SEAL, REAR |
1 |
|
|
4J |
CUP SEAL, SPRING LOADED |
1 |
|
|
4K |
SPACER, SEAL |
1 |
|
|
4L |
17390-04-K6 |
WASHER, SPRING, BELVILLE WASHER, SPRING, BELVILLE (KIT OF 6) |
6 1 |
|
4M |
NUT, PACKING |
1 |
|
|
5 |
ASSEMBLY, HANDLE INCLUDES ALL PARTS |
2
|
|
|
5A |
SCREW, BARREL-HANDLE |
1 |
|
|
5B |
NUT, RETAINING, AIR VALVE |
1 |
|
|
5C |
CUP SEAL, SPRING LOADED |
1 |
|
|
6 |

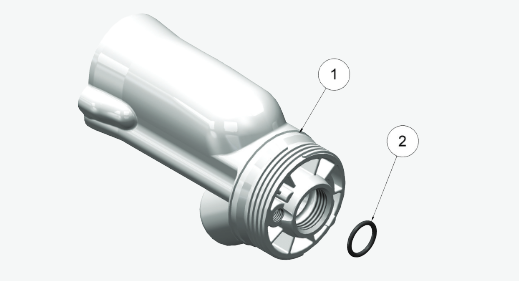

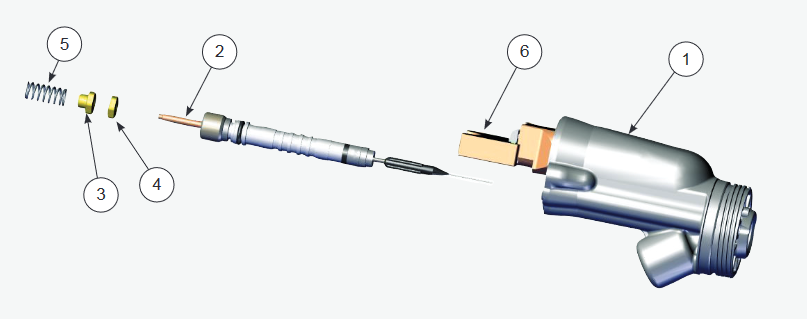

BARREL (INCLUDES O-RING) RX (45kV) |
1 |
|
|
6A |
O-RING, SOLVENT PROOF |
1 |
|
|
6 |
BARREL (INCLUDES O-RING) RFX (65kV) |
1 |
|
|
6A |
O-RING, SOLVENT PROOF |
1 |
|
|
7 |

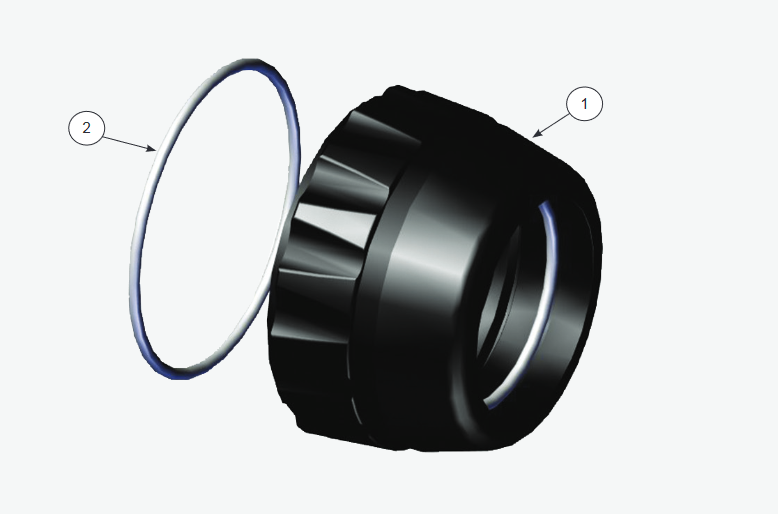

NUT, RETAINING & O-RING ASSEMBLY |
1 |
|
|
7A |
O-RING, ENCAPSULATED |
1 |
|
|
11 |
SPRING, FLUID RETURN |
1 |
|
|
12 |
NUT, FRONT JAM |
1 |
|
|
13 |
NUT, REAR JAM |
1 |
|
|
14 |
SCREW, TRIGGER |
2 |
|
|
15 |
ASSEMBLY, TRIGGER |
1 |
|
|
16 |
BRACKET, FLUID |
1 |
|
|
17 |
FITTING, EXHAUST |
1 |
|
|
18 |
FITTING, AIR INLET QD AIR FITTING |
1 1 |
|
|
19 |
GASKET, EXHAUST |
1 |
|
|
20 |
NUT, HEX, NYLON |
1 |
|
|
21 |
FERRULE, FRONT 1/4” |
2 |
|
|
22 |
FERRULE, BACK 1/4” |
2 |
|
|
23 |
STANDARD FLUID INLET TUBE RX (45kV) STANDARD FLUID INLET TUBE RFX (65kV) COILED FLUID INLET TUBE |
1 1 1 |
|
|
24 |
NUT, CONNECTOR |
1 |
|
|
25 |
GASKET, BARREL |
1 |
|
|
26 |
GASKET, REAR |
1 |
|
|
27 |
ASSEMBLY, VALVE, AIR |
1 |
|
|
28 |
SPRING, AIR VALVE |
1 |
|
|
29 |
ASSEMBLY, CASCADE RX (45 kV) ASSEMBLY, CASCADE RFX (65 kV) |
1 1 |
