Ransburg RansFlex RX Electrostatic Applicator
Description
Description

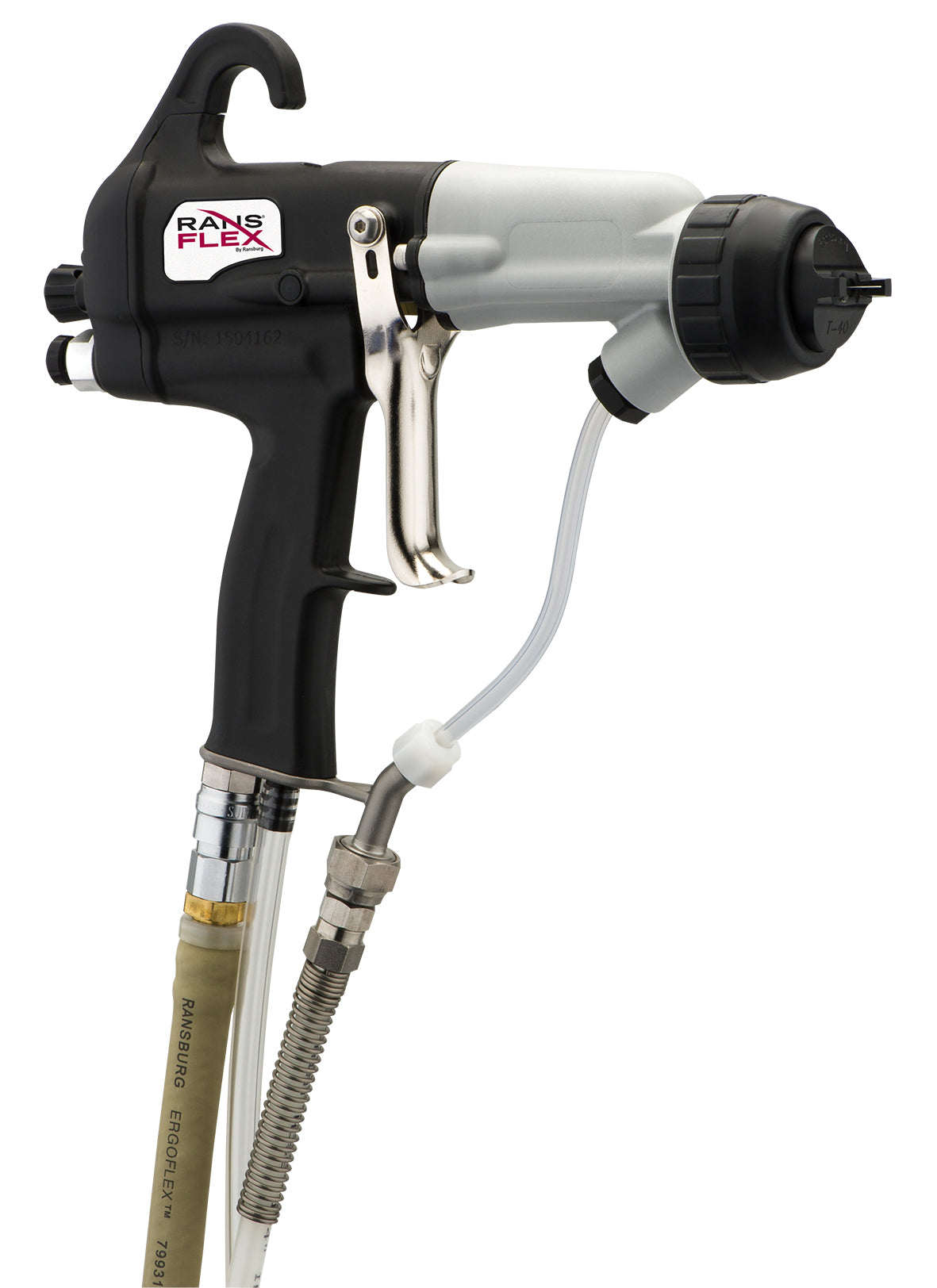

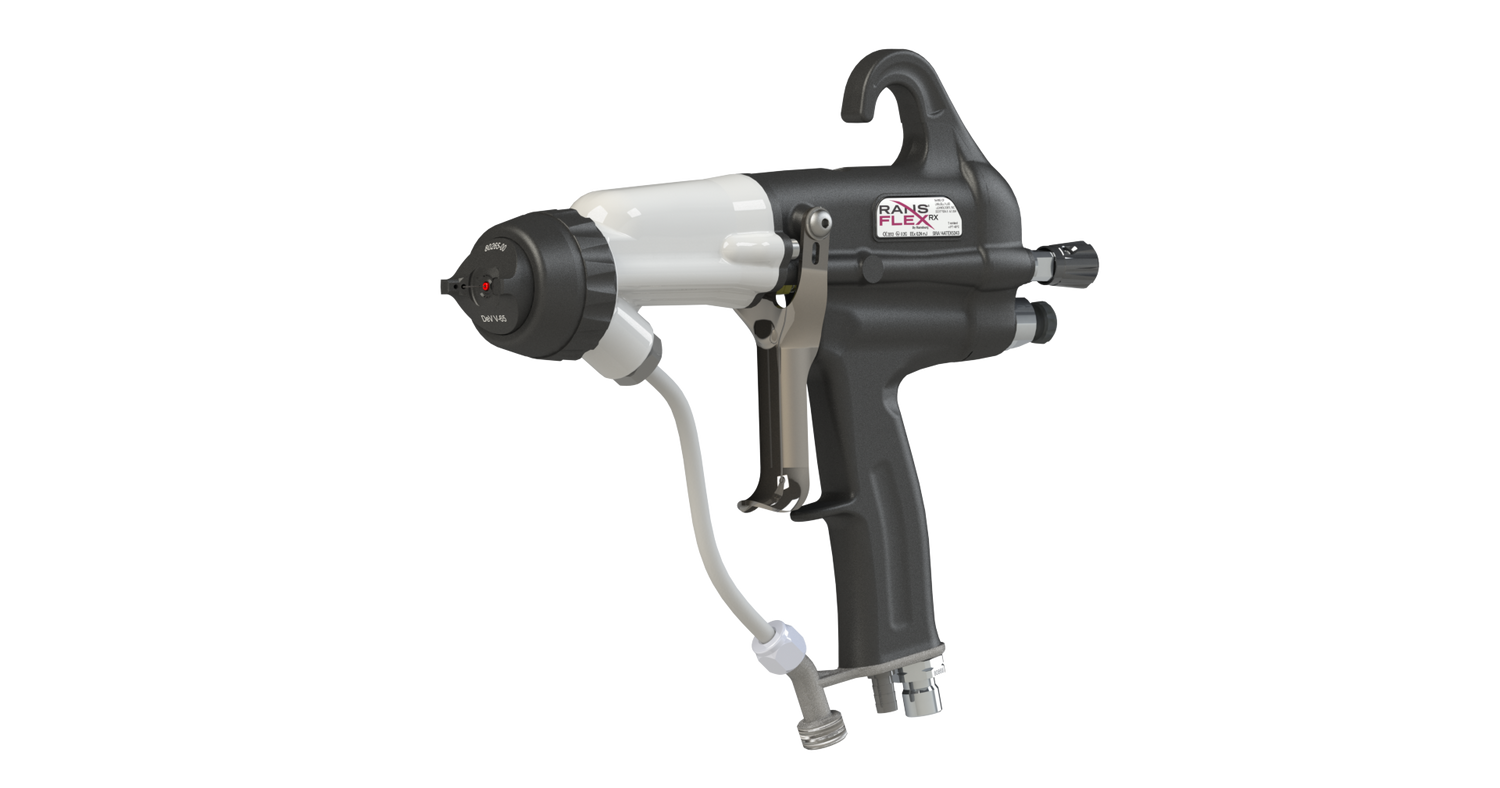

Solvent-Based Electrostatic Manual Applicator
Manufacturer: Ransburg
Part #: 81345-ABCDEF
Description: All Guns come with Adjustable Fluid Control, Two finger Trigger, and no hoses.
45 kV operating voltage, air atomizing electrostatic, turbine-powered, solvent-based, manual applicator.
Best in class atomization in a compact, lightweight applicator, the new U.S.-made RansFlex applicator offers new features and benefits that surpass all other applicators in the industry today. The competition just doesn’t stack up.
The RansFlex is an air-atomizing electrostatic applicator powered by an onboard generator. Designed with the operator in mind, the RansFlex handle incorporates many grip/handle improvements with better-balanced weight to reduce operator fatigue. DeVilbiss atomization technology is coupled with Ransburg power to provide superior atomization and performance backed by a 5-year limited warranty.
Utilizing 20% fewer parts than previous models, the RansFlex is easier to maintain. The patented turbine utilizes a three-phase motor to reduce vibration and provide electrostatic power. RansFlex incorporates optional quick air hose disconnect technology at the handle to reduce “treeing” and integrates color-coded nozzles for easy identification. Indexing air cap and quick voltage on/off knob makes finishing a snap.
Features:
- Ergonomic fit, feel, balance and control: Operators experience less stress on joints and muscles which has proven to lower the risks of carpal tunnel and the impact of physical strain, reducing fatigue.
- Redesigned sleek and smooth exterior: Makes cleaning and maintenance fast and easy while protecting strategic components.
- Provides three phases of generator protection: Includes divorced generator air supply cartridge, sealed nozzle/atomization passages and strategic turbine location.
- Meets FM/ATEX/CSA: Complies with all globally recognized standards and promotes quality confidence for specification and purchase.
- Reverse "cheeks" and formed trigger: Adds stability to the grip in the palm area while promoting easier resting in the fingers and enhanced comfort for the "V" in the operator's hand.
Literature:

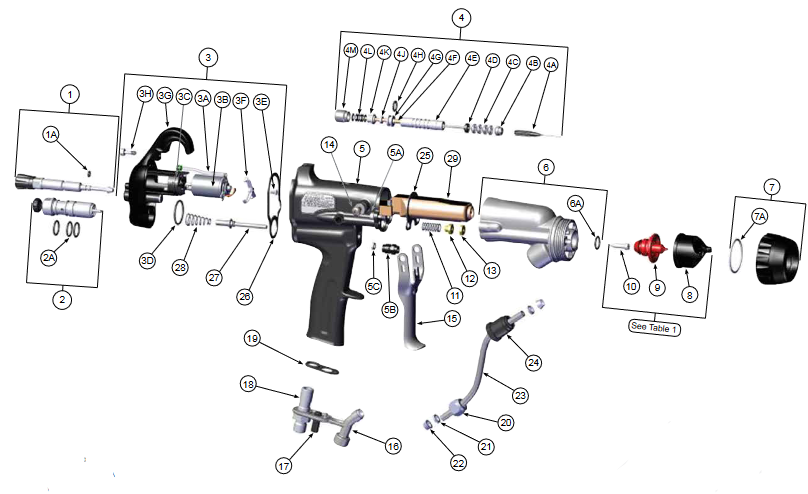

Spare Parts
| Part # | MPN | Description |
| 1 | 80273-00 | Assembly, Fan Valve |
| 1A | 79001-16 | O-Ring |
| 2 |
Assembly, Fluid Cartridge (adjustable) |
|
|
Assembly, Fluid Cartridge (non-adjustable) |
||
| 2A | 79001-08 | O-Ring |
| 3 | 80378-00 | Cover, Rear Assembly |
| 3A | 80213-00 | Pipe, Light |
| 3B | 80255-00 | Assembly, Motor |
| 3C | 79755-00 | Block, Porting |
| 3D | 7554-61 | O-Ring |
| 3E | 80275-00 | Screw |
| 3F | 80219-00 | Bracket, Locking |
| 3G | 80254-00 | Cover, Rear |
| 3H | 80274-00 | Screw, Rear Cover |
| 4 |
Needle Shaft Assembly (RX 45kV) |
|
|
Needle Shaft Assembly (RFX 65kV) |
||
| 4A |
Assembly Electrode, High Wear |
|
|
Kit of 3 Electrodes |
||
| 4B | 80677-00 | Adapter, Male |
| 4C |
14323-00 |
Seal, Chevron, 3/8 DIA |
|
Kit of 4 Seals |
||
| 4D | 18821-00 | Adapter, Female, Chevron |
| 4E |
Tube Packing (RX 45kV) |
|
|
80257-65 |
Tube Packing (RFX 65kV) |
|
|
Needle Shaft Assembly (RX 45kV) |
||
|
80225-65 |
Needle Shaft Assembly (RFX 65kV) |
|
| 4G | 79001-06 | O-Ring |
| 4H | 78629-00 | Retainer, Needle Seal, Rear |
| 4J | 10051-05 | Cup Seal, Spring Loaded |
| 4K | 78630-00 | Spacer, Seal |
| 4L |
Washer, Spring, Belville |
|
|
17390-04-K6 |
Kit of 6 |
|
| 4M | 78631-00 | Nut, Packing |
| 5 | 80870-00 | Handle Assembly (See Part List) |
| 5A | 80274-00 | Screw, Barrel-Handle |
| 5B | 80229-00 | Nut, Retaining, Air Valve |
| 5C | 10051-05 | Cup Seal, Spring Loaded |
| 6 |
Barrel (RX 45kV) |
|
|
80379-00 |
Barrel (RFX 65kV) |
|
| 6A | 79001-07 | O-Ring |
| 7 | 80377-00 | Nut, Retaining & O-Ring Assembly |
| 7A | LSOR0005-17 | O-Ring |
| 11 | 80258-00 | Spring, Fluid Return |
| 12 | 80243-00 | Nut, Front Jam |
| 13 | 80242-00 | Nut, Rear Jam |
| 14 | 80268-00 | Screw, Trigger |
| 15 | 80211-00 | Assembly, Trigger |
| 16 | 80212-00 | Bracket, Fluid |
| 17 | 80221-00 | Fitting, Exhaust |
| 18 |
Air Inlet Standard Fitting |
|
|
Air Inlet Quick Disconnect Fitting |
||
| 19 | 80684-00 | Gasket, Exhaust |
| 20 | EMF-201-04 | Nut, Hex, Nylon |
| 21 | EMF-203-04 | Ferrule, Front 1/4" |
| 22 | EMF-202-04 | Ferrule, Back 1/4" |
| 23 |
|
Standard Fluid Inlet Tube (RX 45kV)
|
|
80269-65 |
Standard Fluid Inlet Tube (RFX 65kV) |
|
|
Coiled Fluid Inlet Tube |
||
| 24 | 80346-00 | Nut, Connector |
| 25 | 80745-00 | Gasket, Barrel |
| 26 | 80732-00 | Gasket, Rear |
| 27 | 80244-00 | Assembly, Valve, Air |
| 28 | 80533-00 | Spring, Air Valve |
| 29 |
Assembly, Cascade (RX 45kV) |
|
|
80250-65 |
Assembly, Cascade (RFX 65kV) |
