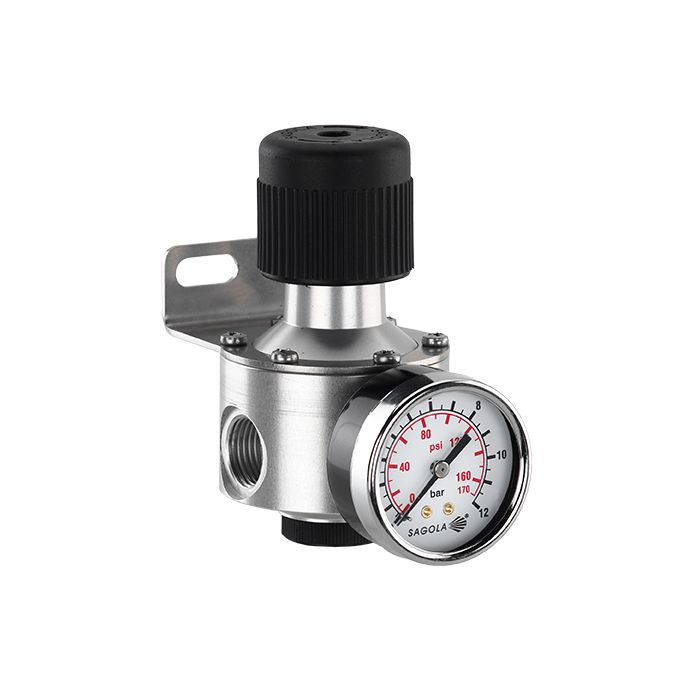

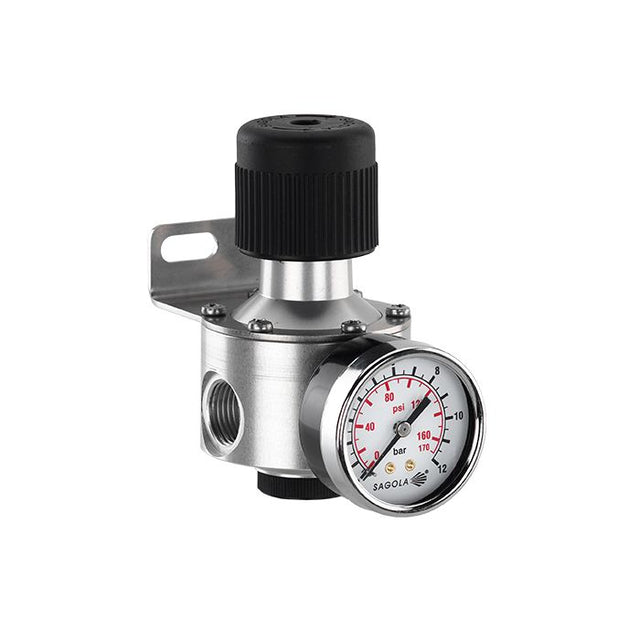

Sagola 430 Plus Mini Air Regulator

Sagola 430 Plus Mini Air Regulator

Manufacturer: Sagola

Part #'s: 1074050X

• 10740501 = Sagola 430 Plus Mini Air Regulator - ½” Inlet
• 10740502 = Sagola 430 Plus Mini Air Regulator - ⅜” Inlet
• 10740503 = Sagola 430 Plus Mini Air Regulator - ¼" Inlet

Description: Mini air regulator. High pressure regulator. Compact, sturdy, reliable and durable design. Made in aluminum. Diaphragm regulator, 0 to 10 bar. Quality pressure gauge up to 10-bar Standard adaptors and fittings included. Quick release and short shift wheel.

Features:

• Highly reliable air regulation system.
• Manufactured from a solid aluminum block.
• Diaphragm regulator from 0 to 10bar (145psi).
• Quick release and short shift wheel.
• High quality analogue pressure gauge.
• Easy wall mounting.

Packing List: Sagola 430 Plus Mini Air Regulator.

Specifications:

Air Flow (at 7bar)	1200 - 1700 l/min (60cfm)
Max Working Pressure	10bar (145psi)
Max Working Temp	90°C (194°F)
Dimensions	107 x 65 x 115 mm (4.21 x 2.56 x 4.53”) without coupling
Weight	544g (19.19lbs)

Parts:

Ref. No.	Part No.	Description
14	54550016	Analogue Pressure Gauge 0 - 12 bar (0 - 160 psi)
15/1	11000112	Connector - Brass: M-BSPT 1/2" to F-BSPP 3/8"; Pack of 2
15/2	11000113	Connector - Brass: M-BSPT 1/2" to F-BSPP 1/4"; Pack of 2



Accessories:

• Sagola Anti-Static Compressed Air Hose, 1/4"
• 56418589 Lubricant Grease (SAE 10), 100ml (3.38fl oz)

Literature:

• Brochure
• Data Sheet
• Manual
• Line Drawing
