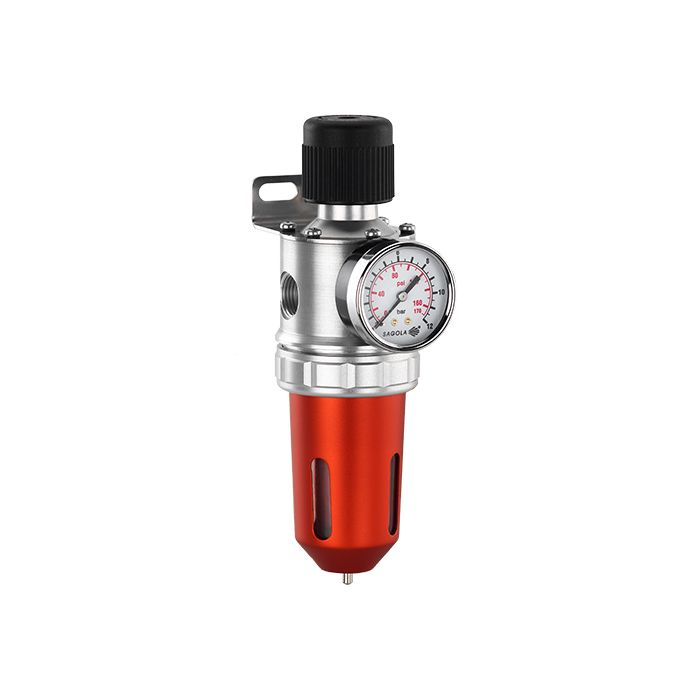

Sagola 479 Plus Air Filter / Regulator

Sagola 479 Plus Air Filter / Regulator

Manufacturer: Sagola

Part #'s: 1073040X

• 10730401 = Sagola 479 Plus Air Filter / Regulator, 1/2" 0 - 10 Bar (0 - 145 psi) with 40µm Porous Bronze Filter
• 10730402 = Sagola 479 Plus Air Filter / Regulator, 3/8" 0 - 10 Bar (0 - 145 psi) with 40µm Porous Bronze Filter
• 10730403 = Sagola 479 Plus Air Filter / Regulator, 1/4" 0 - 10 Bar (0 - 145 psi) with 40µm Porous Bronze Filter

Description: PURIFIER-REGULATOR. The most compact design for the small workshops, industry or air supplies to pneumatic tools. Made in solid aluminum. High air flow. Quality pressure gauge. High reliability regulation system. Suitable for multiple hose sizes, couplings included. High filtering capacity with impurities check windows and semi-automatic draining system.

Features:

• Made in solid aluminium.
• High air flow.
• Quality pressure gauge.
• Highly reliable regulation system.
• Suitable for multiple hose sizes, couplings included.
• High filtering capacity with impurities check windows.
• Semi-automatic draining system.

Packing List: Sagola 479 Plus Air Filter / Regulator.

Specifications:

Air Flow (at 7bar)	1,700l/min (88cfm)
Max Working Pressure	10bar (145psi)
Max Working Temp	90°C (194°F)
Drain system	Semi-Automatic
Dimensions	229 x 79 x 115mm (9.01 x 3.11 x 4.53”) without coupling
Weight	886g (31.25lbs)

Parts:

Ref. No.	Part No.	Description
20	54550016	Analogue Pressure Gauge 0 - 12 bar (0 - 160 psi)
21/1	11000112	Connector - Brass: M-BSPT 1/2" to F-BSPP 3/8"; Pack of 2
21/2	11000113	Connector - Brass: M-BSPT 1/2" to F-BSPP 1/4"; Pack of 2



Accessories:

• 53610204 Porous Bronze Filter (40 Microns)
• Sagola Anti-Static Compressed Air Hose, 1/4"
• 56418589 Lubricant Grease (SAE 10), 100ml (3.38fl oz)

Literature:

• Brochure
• Data Sheet
• Manual
• Line Drawing
