Sagola 5100X Air Regulator Filter
Description
Description

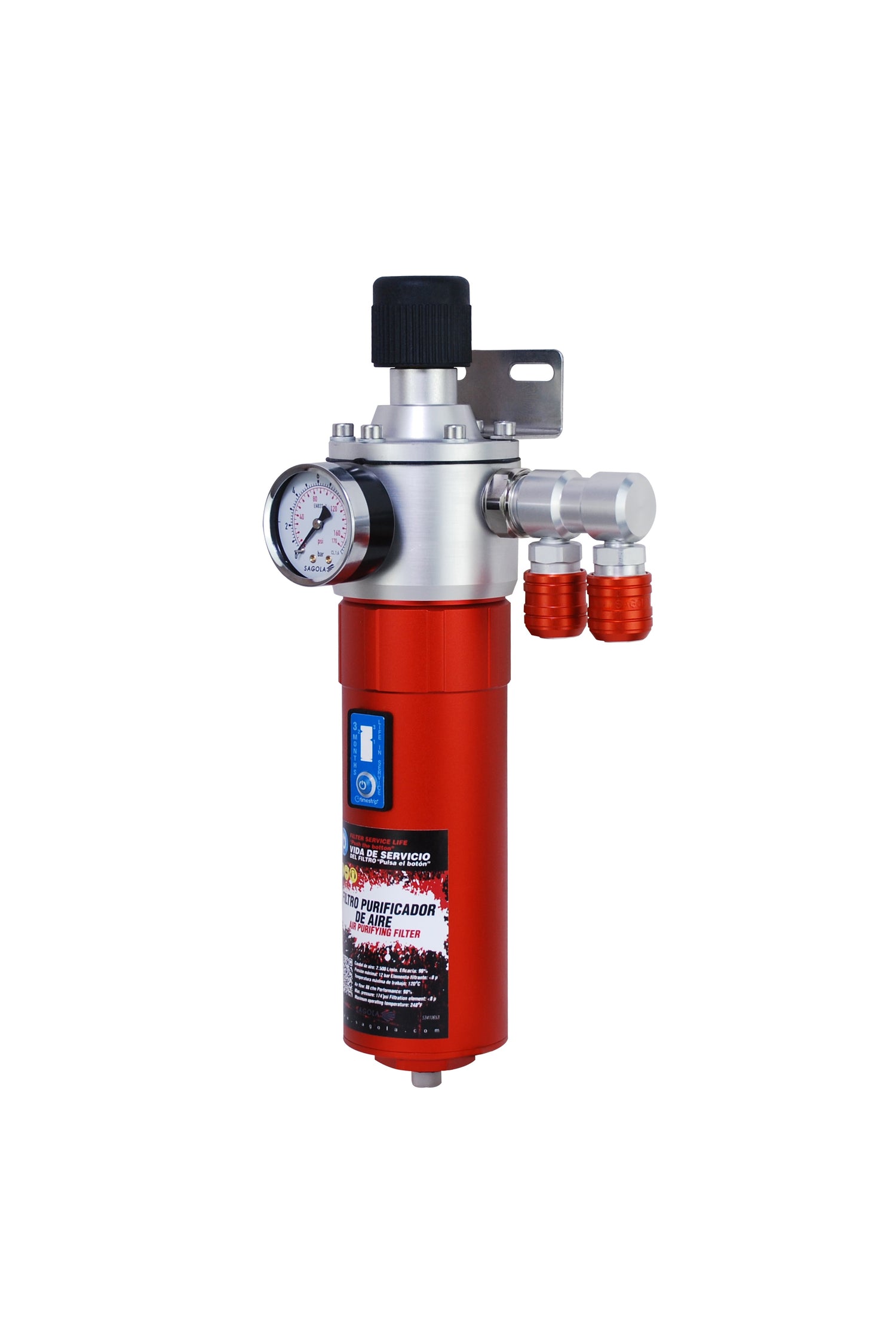

5100X Air Regulator Filter - Stage 1
Manufacturer: Sagola
Part #: PT10730202
Description: Air from a compressor circulating through the network contains particles and solid impurities, water from the relative humidity of the suction air and burnt oil from the compressor. All these impurities accompanied by compressed air reach the vital parts of tools causing oxidation and premature wear.
For these reasons it is necessary to eliminate impurities by means of a filter, taking into account that the maximum performance with the minimum pressure loss must be obtained. SAGOLA FILTRATION SYSTEMS guarantee the maximum air quality and the minimum pressure loss throughout the line.
5100X Filter Regulator:
- Double outlet allows for use of 2 tools at once
- Ideal for waterborne and HS paints
- Maximum air filtration for very high quality finishes
- Minimum loss of pressure
- Friction and centrifuged filtering retains water and impurities. Incorporates an 8 micron sinterised brass filter.
- Valid for HS paints and highest quality finishes. Self-draining system and assisted regulator wheel.
Literature:
Specifications:
| Air Flow | >3000 L/min @ 7 bar air inlet pressure |
| Air Inlet | 1/2" BSP |
| Air Outlet | 1/4" BSP |
| Max Working Pressure | 12 bar |
| Max Working Temp | 90°C (194°F) |
| Drain System | Automatic Purge |
| Weight | 2.64kg (5.8 lbs) |
