Samoa  |  SKU: UP15A-NAC-ATZ

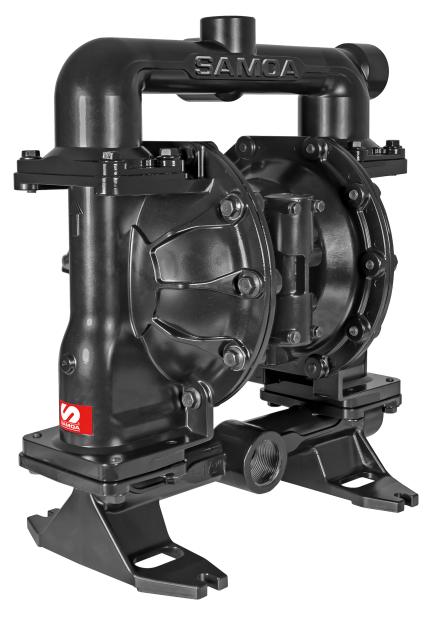

Samoa UP15 Aluminum Pivot Series 1-1/2" Air-Operated Double Diaphragm Pump

Regular price $2,371.12
Shipping calculated at checkout.

Samoa UP15 Aluminum Pivot Series 1-1/2" Air-Operated Double Diaphragm Pump is backordered and will ship as soon as it is back in stock.


Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Add a stand out message for your customers

Description

UP15 Aluminum Pivot Series 1-1/2" Air-Operated Double Diaphragm Pump

Manufacturer: Samoa

Part #: UP15A-NAC-ATZ

Description: Air operated double diaphragm pumps for dosing, spraying, transferring, evacuating and distributing a wide variety of fluids. SAMOA offers a wide range of material options for chemical compatibility and to withstand abrasion, temperature and fatigue caused by demanding conditions.

Features:

  • Higher Efficiency - Maximum fluid flow with reduced air consumption.
  • Increased Reliability - No stall, no icing, reliable start-up and longer air valve and diaphragms life.
  • Unique Frictionless Picot-Shaft - Fast shifting reduces air cosumption, with a smooth pump operation, no icing and no whistle noises.
  • Easy Servicing - Simplified maintenance and cleaning. Components designed for long life and reliability.
  • This Pivot Series Compact Line model is a fully groundable ATEX certified pump, for use in potentially explosive atmospheres (Ex II2 GD IIB/IIC 95 ˚C)

Materials:

Central Body and Air Chambers: Aluminum
Fluid Chambers and Manifolds: Aluminum
Hardware Bolts: Carbon Steel
Valve Seats: Aluminum
Valve Balls: PTFE
Diaphragm Type and Material: 2-Piece PTFE
Wetted materials ptfe-ptfe-aluminium



Specifications:

Pump Size 1-1/2"
Pressure Ratio 1:1
Maximum Free Flow Delivery 475 l/min (125 gal/min)
Air Pressure Range 1.5 - 8 bar (20 - 120 psi)
Max. Size Solids in Suspension 6.4 mm (1/4")
Max. Dry Suction Head 6 m (19.6')
Max. Wet Suction Head 9 m (29.5')
Displacement Per Cycle 2.5 L (0.66 gal)
Fluid Inlet Connection 1-1/2" BSP (F)
Fluid Outlet Connection 1-1/2" NPT (F)
Air Inlet Connection 1/2" NPT (F)
Air Exhaust Connection 1" NPT (F)
Sound Level 83 dB
Certification ATEX
Weight 23 kg (50.71 lb)



Parts and Accessories:

Part No. Description
UP15R-WP-00Z
Diaphragm Kit
UP15R-WP-0T0
Ball Kit
UP15R-WP-A00
Seat Kit
UP15R-WP-999
Seat O-Ring Kit
UP15R-AM-1A0
Air Valve Module
UP15R-AM-200
Air Sensor Kit
UP15R-AM-300
Air Shaft Kit
UP15R-HP-6A0 Air Piston Kit
UP15R-HP-7A0 Fluid Piston Kit
UP15R-HP-1AN Inlet Manifold
UP15R-HP-2AN Outlet Manifold
UP15R-HP-3A0 Fluid Cover
UP15R-HP-5A0 Central Body
UP15R-AM-400 Air Motor Seals Kit
UP15R-HP-8A0 Central Body Air Cap Kit
UP15R-HP-4A0 Air Cover
UP15R-AM-500 Air Exhaust Kit
