Samoa  |  SKU: UP20A-NFC-MMA

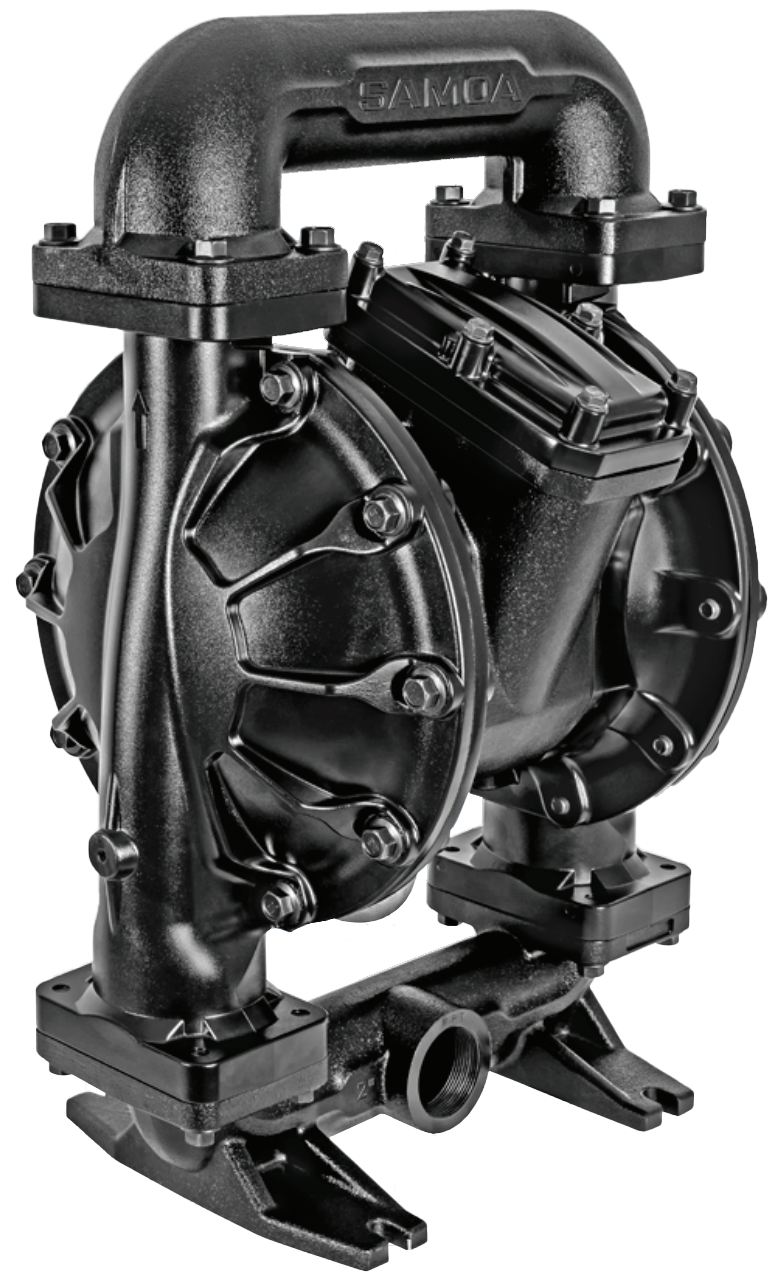

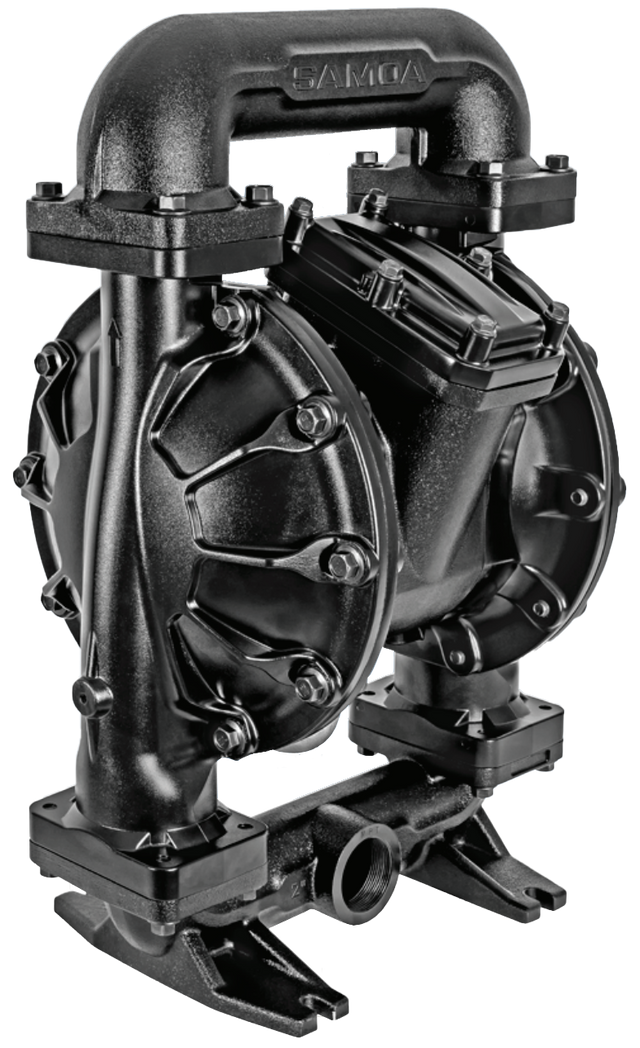

Samoa UP20 Metallic Pivot Series 2" Air-Operated Double Diaphragm Pump

Regular price $3,012.05
Shipping calculated at checkout.

Samoa UP20 Metallic Pivot Series 2" Air-Operated Double Diaphragm Pump is backordered and will ship as soon as it is back in stock.


Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Add a stand out message for your customers

Description

UP20 Pivot Series 2" Metallic Air-Operated Double Diaphragm Pump

Manufacturer: Samoa

Part #: UP20A-NFC-MMA

Description: Cast Iron/Santoprene, 172 Gal/Min Pump. The new SAMOA UP20 pump combines a Universal design with a unique frictionless Pivot-Shaft Air Valve to provide maximum performance and energy efficiency, exceeding market expectations.

Features:

  • Higher Efficiency - Maximum fluid flow with reduced air consumption.
  • Increased Reliability - No stall, no icing, reliable start-up and longer air valve and diaphragms life.
  • Easy Servicing - Simplified maintenance and cleaning. Components designed for long life and reliability.
  • Connectivity - Can be cofigured to connect a Smart Pump-Controller System to actuate, control, and monitor your pumps.

Materials:

Central Body and Air Chambers: Aluminum
Fluid Chambers and Manifolds: Ductile Iron
Hardware Bolts: Carbon Steel
Valve Seats: Santoprene
Valve Balls: Santoprene
Diaphragm Type and Material: Conventional - Santoprene



Specifications:

Pressure Ratio 1:1
Maximum Free Delivery 172 US gal/min
Air Pressure Range 1.5 - 8 bar (20 - 120 psi)
Max. Size Solids in Suspension 6.4 mm (1/4")
Max. Dry Suction Lift 5 m (16')
Max. Wet Suction Lift 8 m (26')
Displacement Per Cycle 5.1 L (1.35 gal)
Fluid Inlet/Outlet Connections 2" NPTF Threaded
Air Inlet Connection 3/4" NPTF
Air Exhaust Connection 1 1/2" NPTF
Sound Level 85 dB (A) @ 50 Cycles/Min @ 5 bar
Weight 163lbs



Parts and Accessories:

Part No. Description
UP20R-WP-00A
Diaphragm Kit
UP20R-WP-0M0
Ball Kit
UP20R-WP-M00
Seat Kit
UP20R-AM-1A0
Air Valve Module
UP20R-AM-200 Air Sensor Kit
UP20R-AM-300
Air Shaft Kit
UP20R-HP-6S0
Air Piston Kit
UP20R-HP-7S0
Fluid Piston Kit
UP20R-HP-1FN
Inlet Manifold
UP20R-HP-2FN
Outlet Manifold
UP20R-HP-3F0
Fluid Cover
UP20R-HP-5A0
Central Body
UP20R-AM-400
Air Motor Seals Kit
UP20R-HP-8A0
Central Body Air Cap Kit
UP20R-HP-4A0
Air Cover
UP20R-AM-500
Air Exhaust Kit
