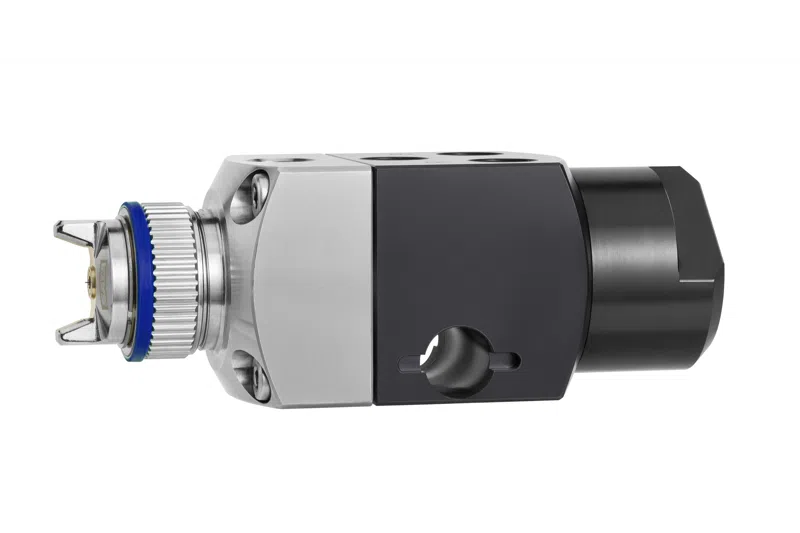

SATAminijet 1000 ROB; RP
Manufacturer: SATA
Part #: 220XXX
Description: Fully automatic, externally controlled high-performance gun for automatic painting machines and painting robots. Nozzle system for fine coating results on small surfaces and for complex detailed coatings.
Product Benefits
- Can be integrated into existing control and application systems
- Fully automatic, continuous adjustment of fan geometry via external control
- Circulation mode
- Process reliability through self-adjusting sealing elements in the air and material area
- Low maintenance requirements, easy replacement of components
- Finest atomisation for detail coatings
- Ideal for thin layers
- Homogeneous spray fan with maximum application efficiency through proven RP or HVLP technology
RP: Extra Fast - RP spray guns stand for maximum working speed with optimized high-pressure technology and low overspray.
| Technical Data: | RP |
| Inlet Pressure: | 36-43 psi |
| Air Consumption: | 7 CFM |
| Air Pressure Min. | 43 psi |
| Fluid Pressure Max. | 145 psi |
| Fluid Temp Max. | 176 F |
Parts and Accessories:
| Part No. | Description |
| 14183 | Tool Kit |
| 64071 | Seal Retainer, Cpl |
| 64147 | Washer |
| 64709 | Sleeve |
| 64808 | Compression Spring |
| 43091 | Control Piston |
| 43109 | Closing Cap |
| 74690 | Cylindrical Screw |
| 170787 | Seal Retainer, Cpl |
| 127399 | Air Distribution Ring |
| 203588 | Nozzle Head |
| 185611 | Nozzle Head - Quick Change Mount |
Log In or Register to See Pricing
Total Finishing Supplies is an authorized SATA Distributor. Beware of sites that claim to offer genuine SATA items. They may not be authorized and you may be buying a fake or an item that won't be covered under SATA's warranty.
