Standard Roof Flashing for Pitched Roof - Paint Spray Booth
Description
Description

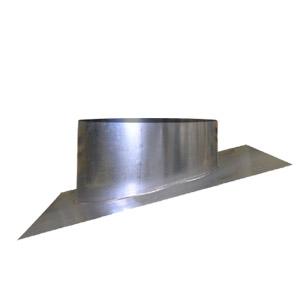

Standard Roof Flashing for Pitched Roof

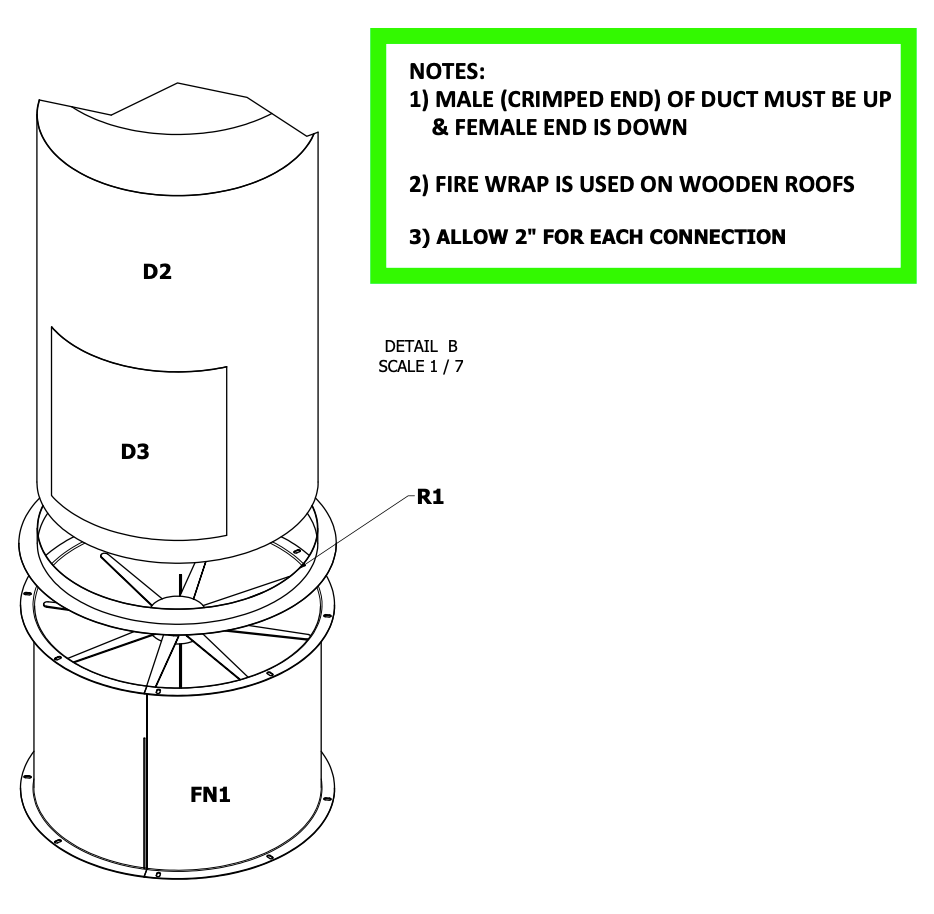

Paint Spray Booth Exhaust stack components are fabricated from galvanized steel: 20 gauge for under 30" diameter; 18 gauge for 30" diameter and above. Available stack sizes are 12", 18", 24", 30", 34", and 42" diameters. Duct design meets Uniform Fire Code NFPA 91, latest edition.

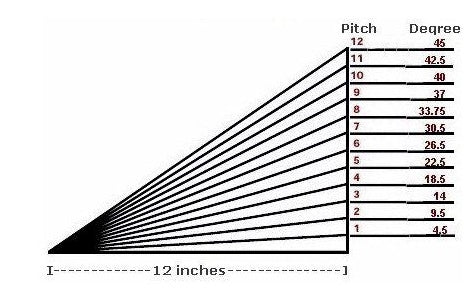

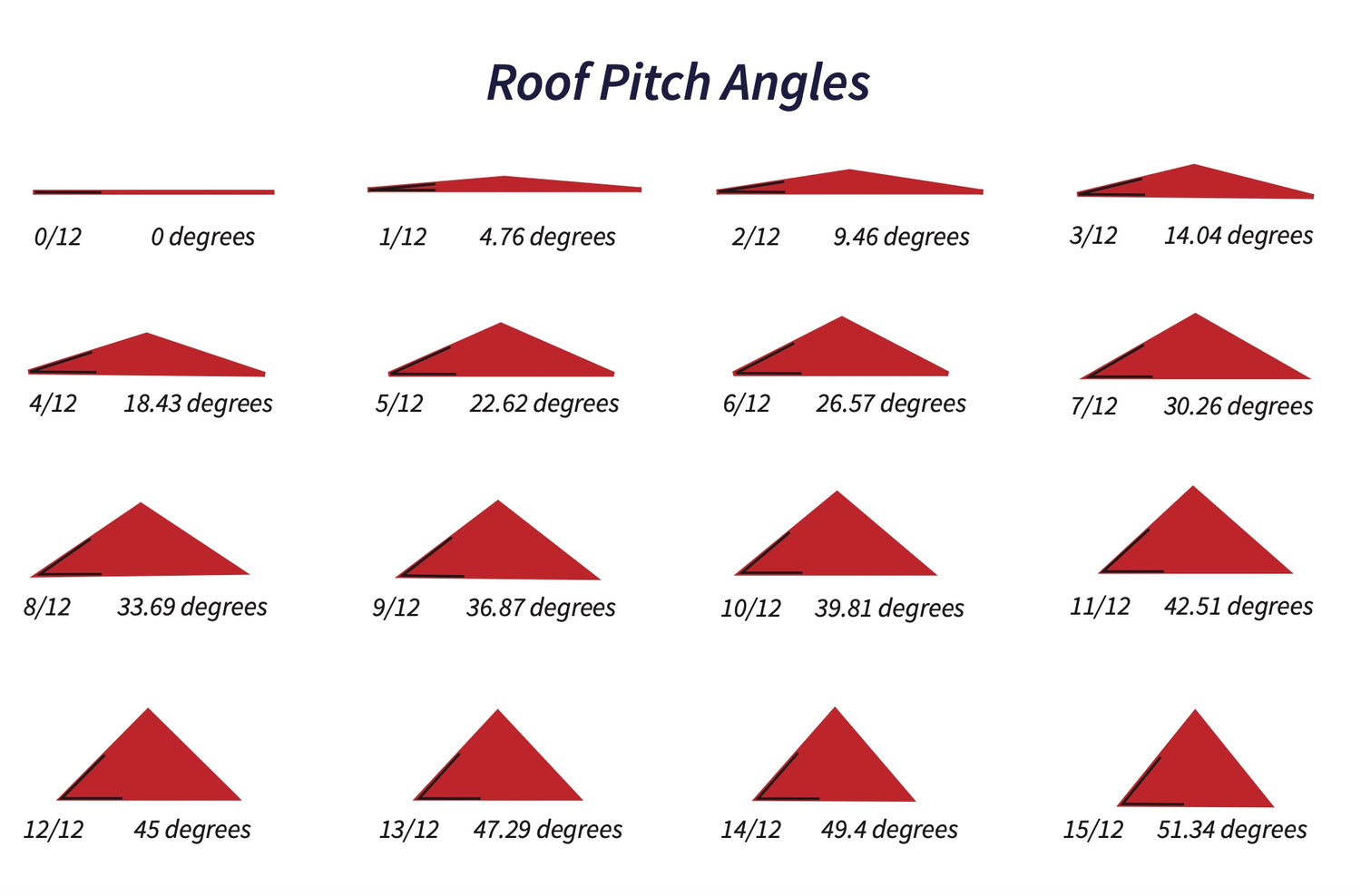

Roof Pitch = Height difference in one foot. A 4" rise in a 12" span is a 4/12 pitch.

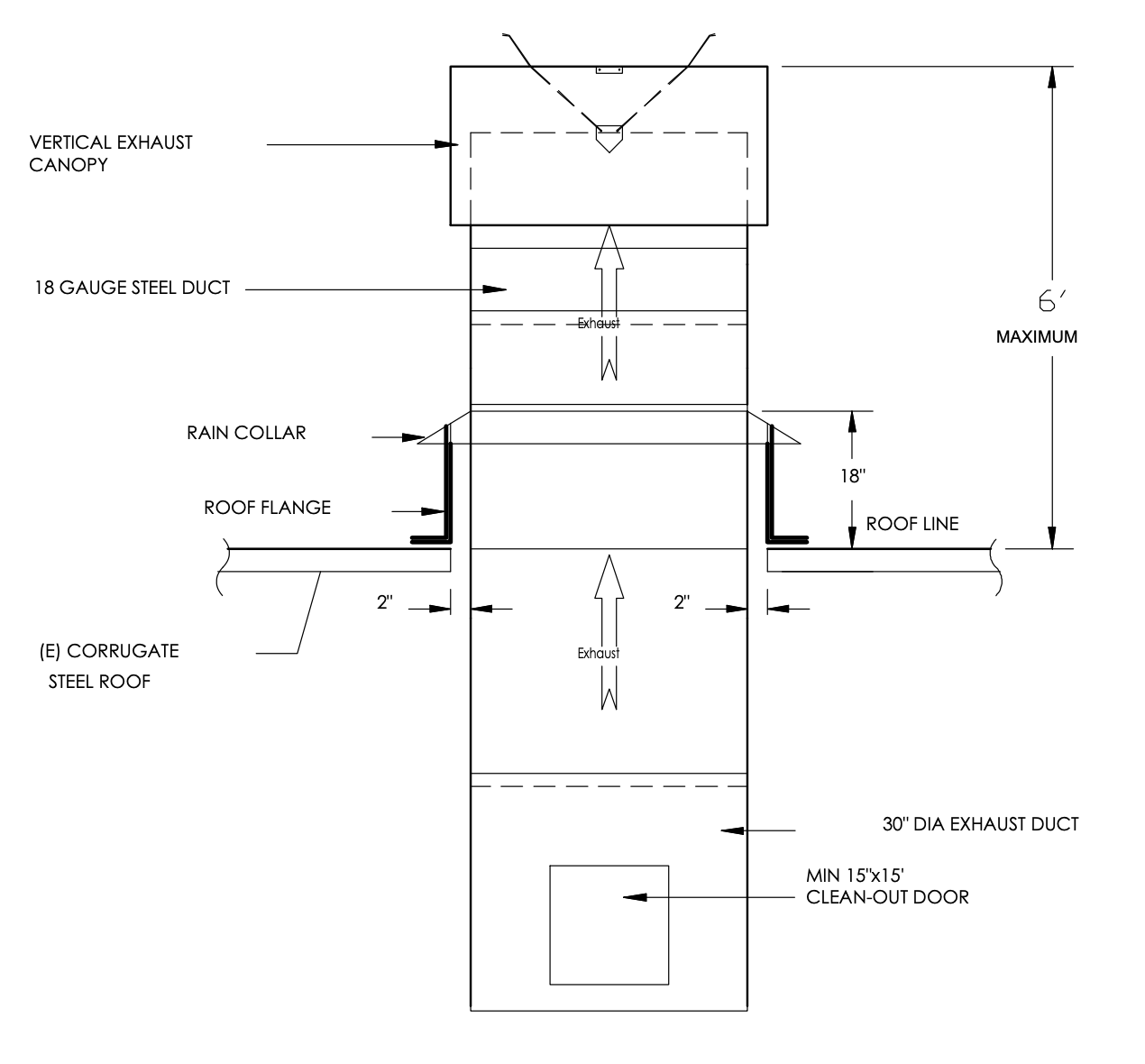

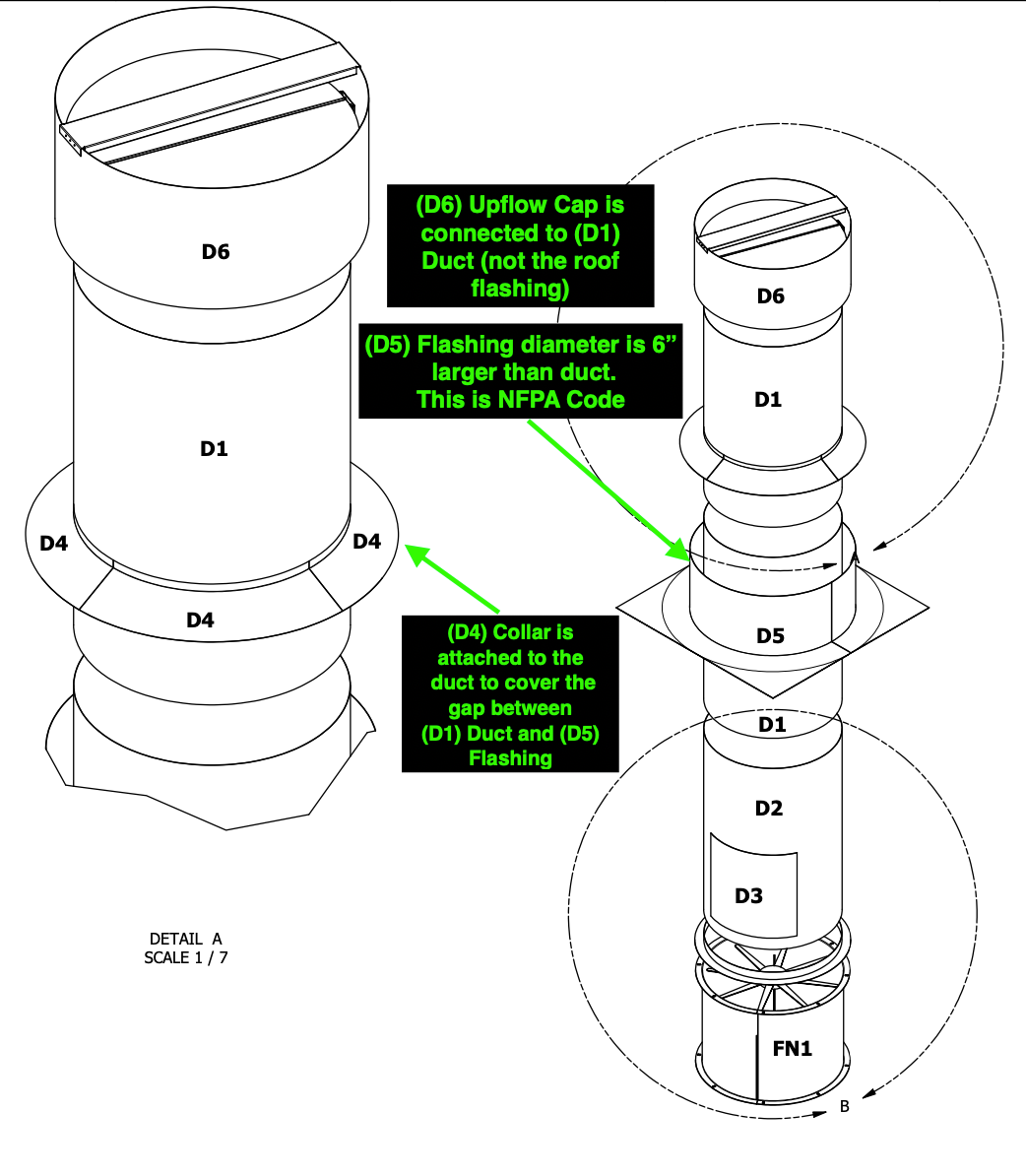

Order the same diameter as duct. Flashing diameter is 6" larger than duct. The is required by NFPA code.
FOB - You will be contacted with a freight quote or you can arrange your own freight.
Booth duct and accessories are custom made. They are non-returnable/sales are final once shipping confirmed
Parts and Accessories:
- SBE155-XX Duct Quarter Section Skirt (Collar)
