Spray Pack

TFS Label Air-Assist-Airless (AAA) 14:1 Peak™ Pump - Cart Model Set-Up (V Packing) with MAMBA® AAA Spray Gun

Manufacturer: Wagner

Part Number: TFSC14CART-MAMBA-XXX

Description:

AIR-ASSIST CART MOUNT OUTFIT 1/2" INLET 5 GAL SIPHON

The Air Assist Airless pump from C.A.T. is an all stainless 14:1 ratio pump for production fine finish spraying of wood or other fine finish applications. The new 14:1 Peak™ Performance Series pump incorporates a new completely redesigned air motor that features a stationary magnet poised for endurance and longevity. This simple direct-acting valve is also resistant to icing, has a long-life carbon fiber cylinder, and integrated noise suppression design for quiet operation. The fluid section is all stainless featuring a non-contact pump tube that never wears out. Also featured is a cartridge-style piston seal and guide for quick field replacement. The unit has a large capacity solvent cup and 360-degree fluid inlet/outlet orientation.

The Air Assist Airless pump from C.A.T. is an all stainless 14:1 ratio pump for production fine finish spraying of wood or other fine finish applications and is 100% made in the US.

Specifications:

• The pump offers a .33 GPM output for quick product changes with very little waste
• The New 14:1 Peak™ Performance Series pump incorporates a new completely redesigned no stall air motor that features a stationary magnet poised for endurance and longevity
• The simple direct acting valve is also resistant to icing
• Has a long life carbon fiber cylinder and integrated noise suppression design for quiet operation
• The fluid section is all stainless featuring a non-contact pump tube that never wears out
• The unit has a large capacity solvent cup and 360-degree fluid inlet/outlet orientation

• The upper seal is a V-Packing design for pre-cat lacquers, conversion varnish, and polyurethanes
• Low 6 CFM air consumption
• 25 ft. x 3/16 in. Fluid Hose
• 25 ft. x 1/4 in. Air Hose
• Stationary magnet design
• The enclosed solvent cup eliminates environmental contamination.
• Sight gauges make it easier for checking and refilling lubricant levels.
• 5 Gallon Siphon Hose

This $124.00 packing upgrade is included in our pump packages. It also has a flexible 5-gallon pick-up tube with a nylon inlet filter. Call for an optional 55-gallon pick-up tube.

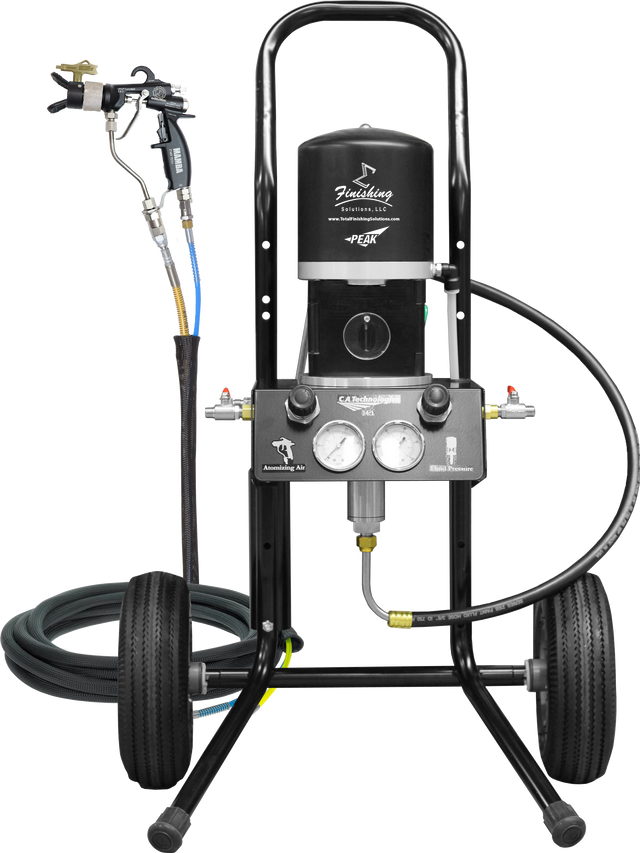

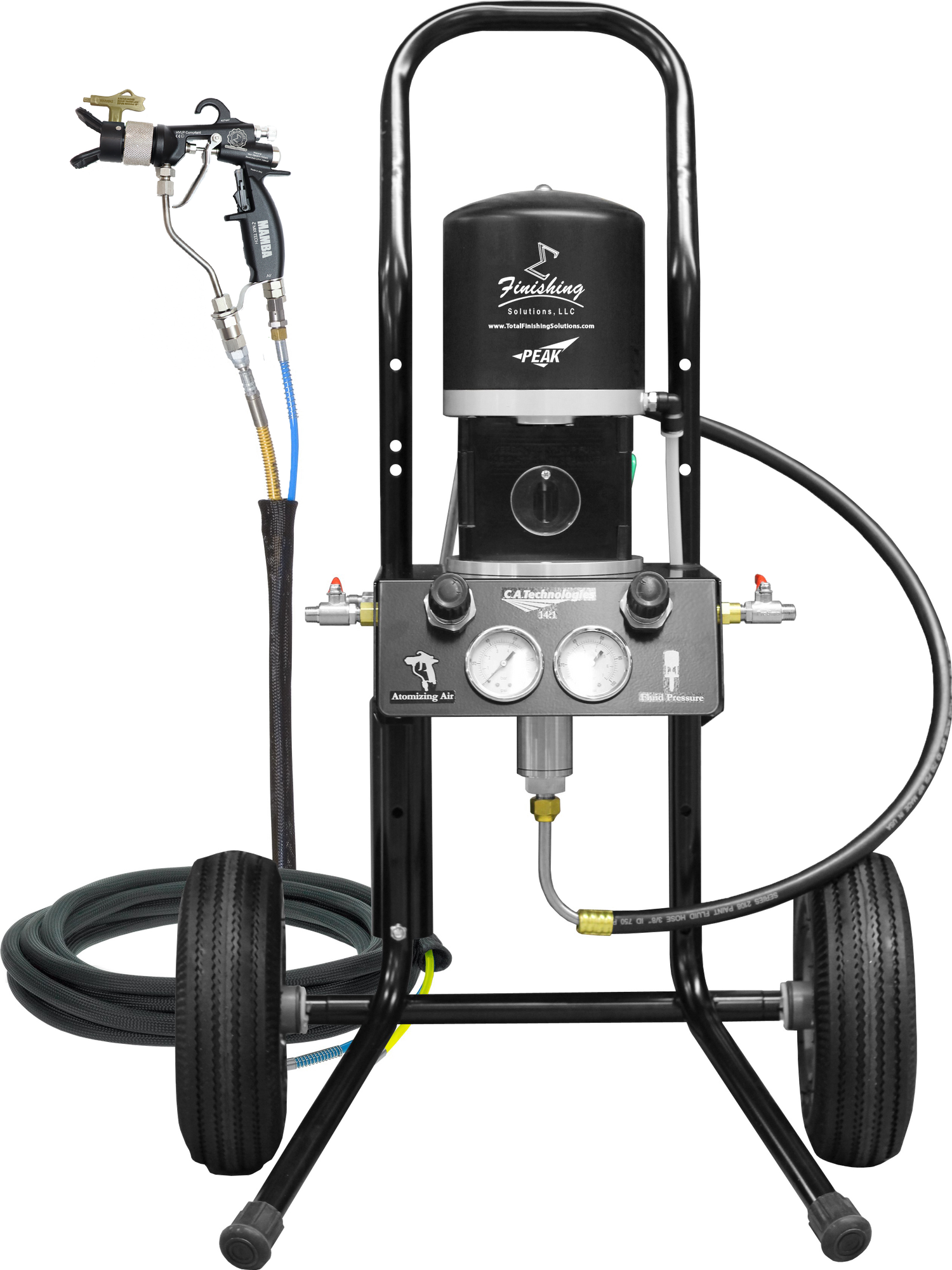

This set-up comes with a robust pneumatic cart, not a "Pump on a Stick" like other brands along with a 25' flexible set of hoses.

Hopper Option Available Here.

PROUDLY MADE IN USA.

Pump Operators Manual  Cut Sheet

Accessory & Replacement Part List:

• Wagner Fluid/Air Hose Set 2309xxx

• C.A. Technologies Repair Kit -- Air Motor (Peak™ AAA) 10-163
• C.A. Technologies Repair Kit -- 14-1 Fluid Section 10-117
• Inlet Strainer Screen, 3/8" 74-560-P

Pumps are built to order and can take up to 10 days to ship.

Manufacturer: Total Finishing Supplies

Part Number: Mamba

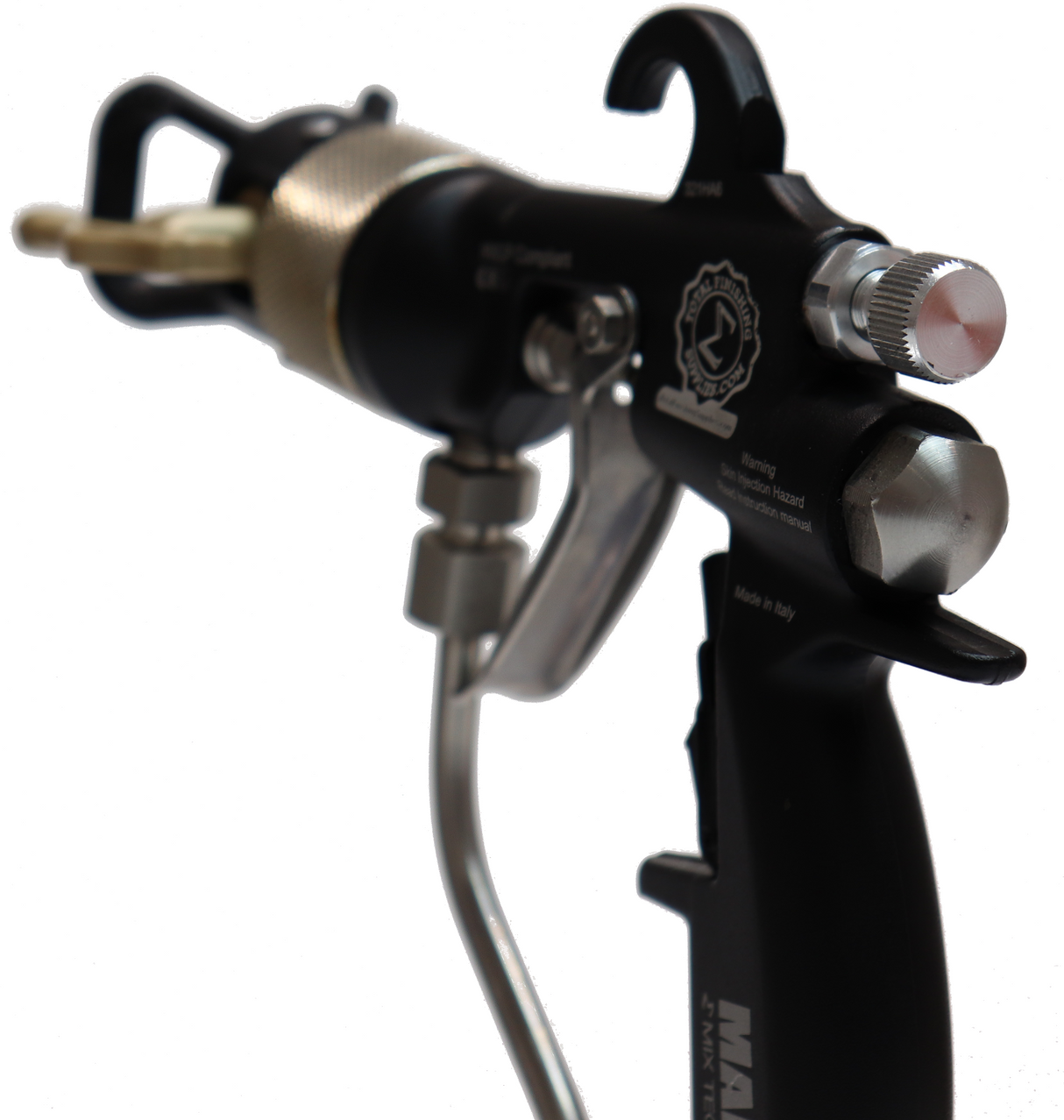

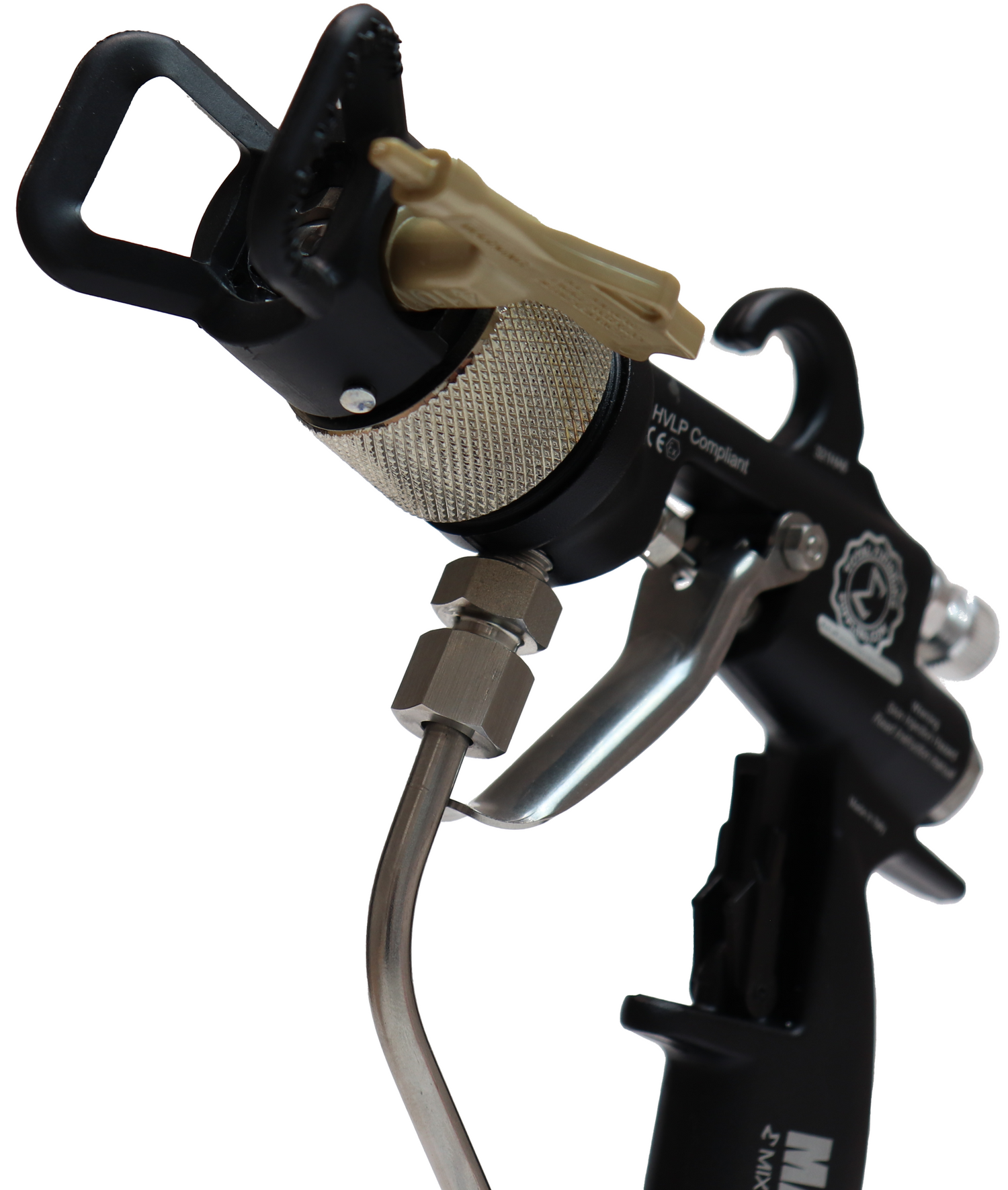

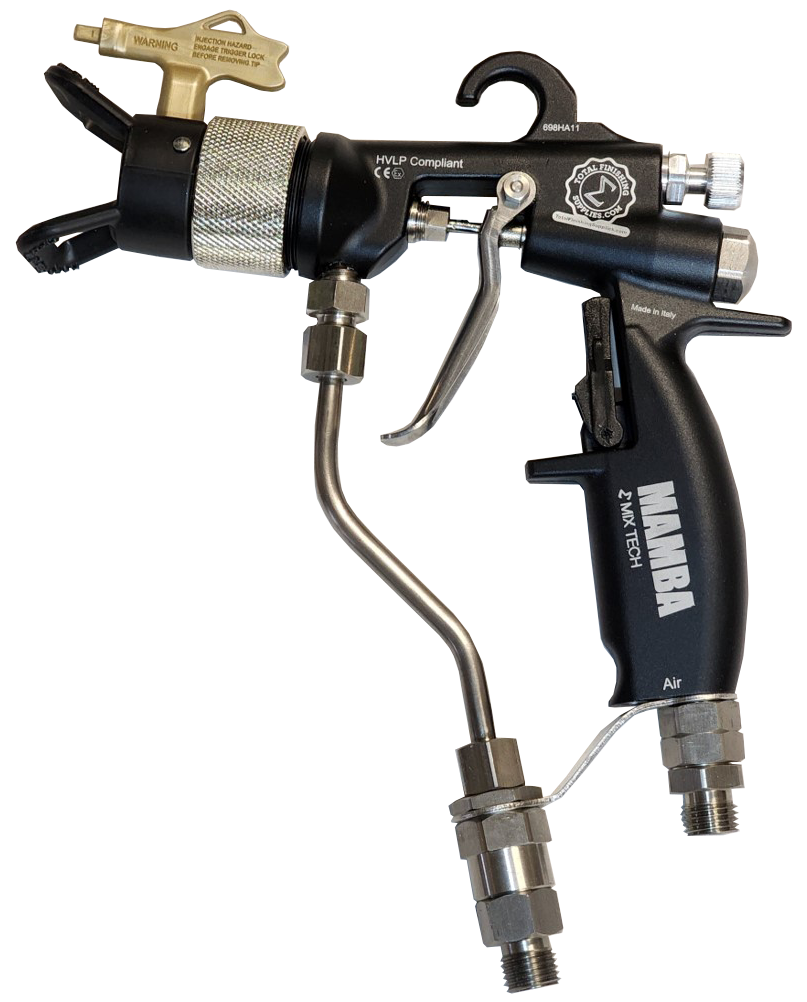

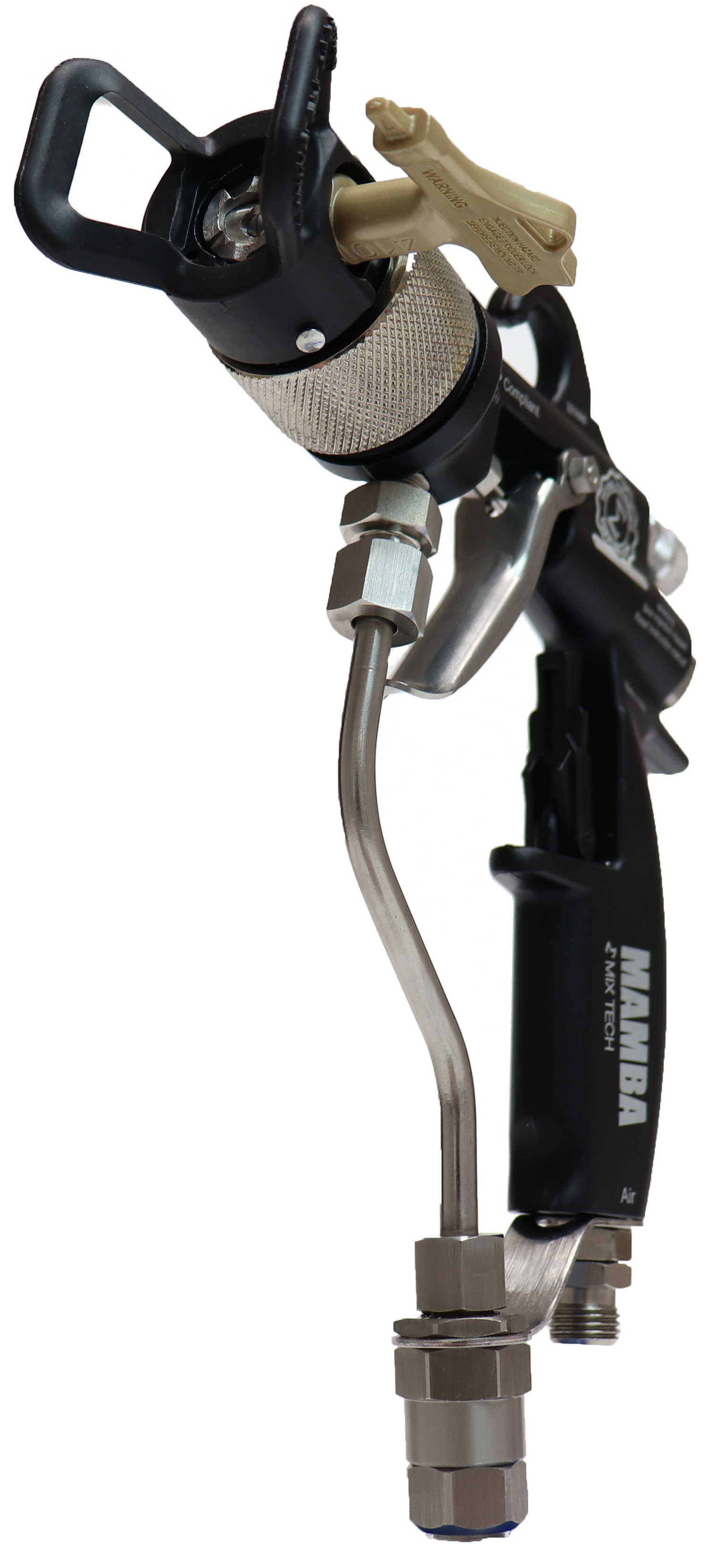

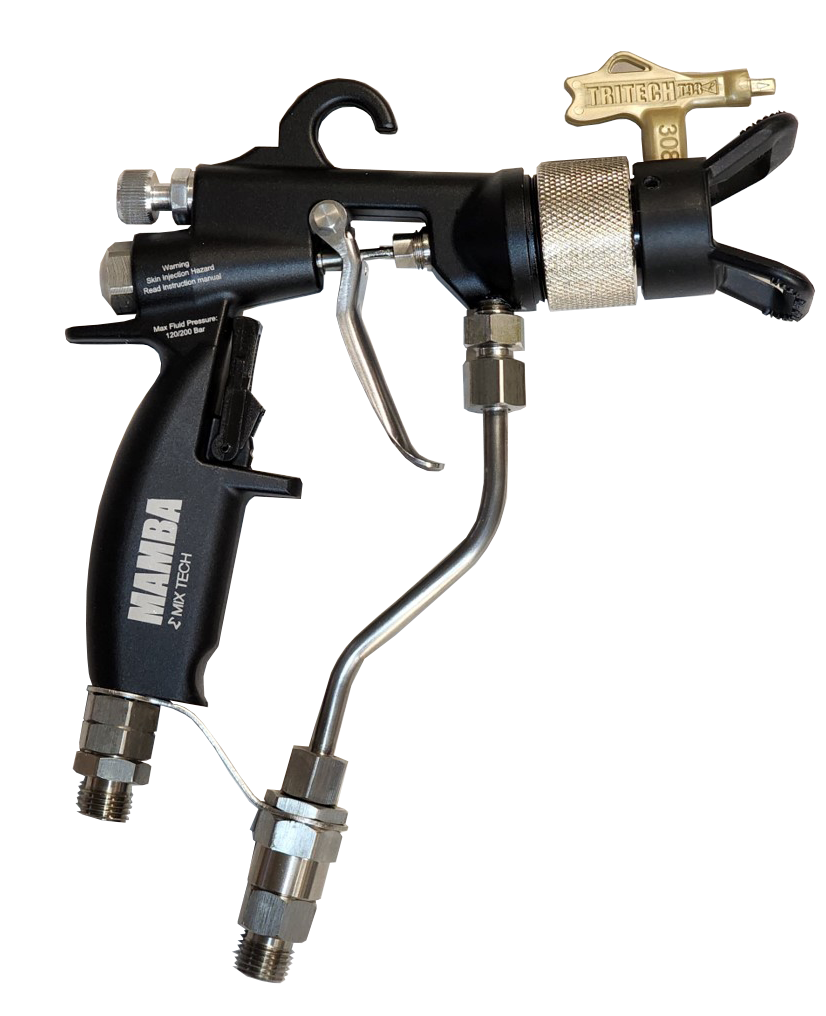

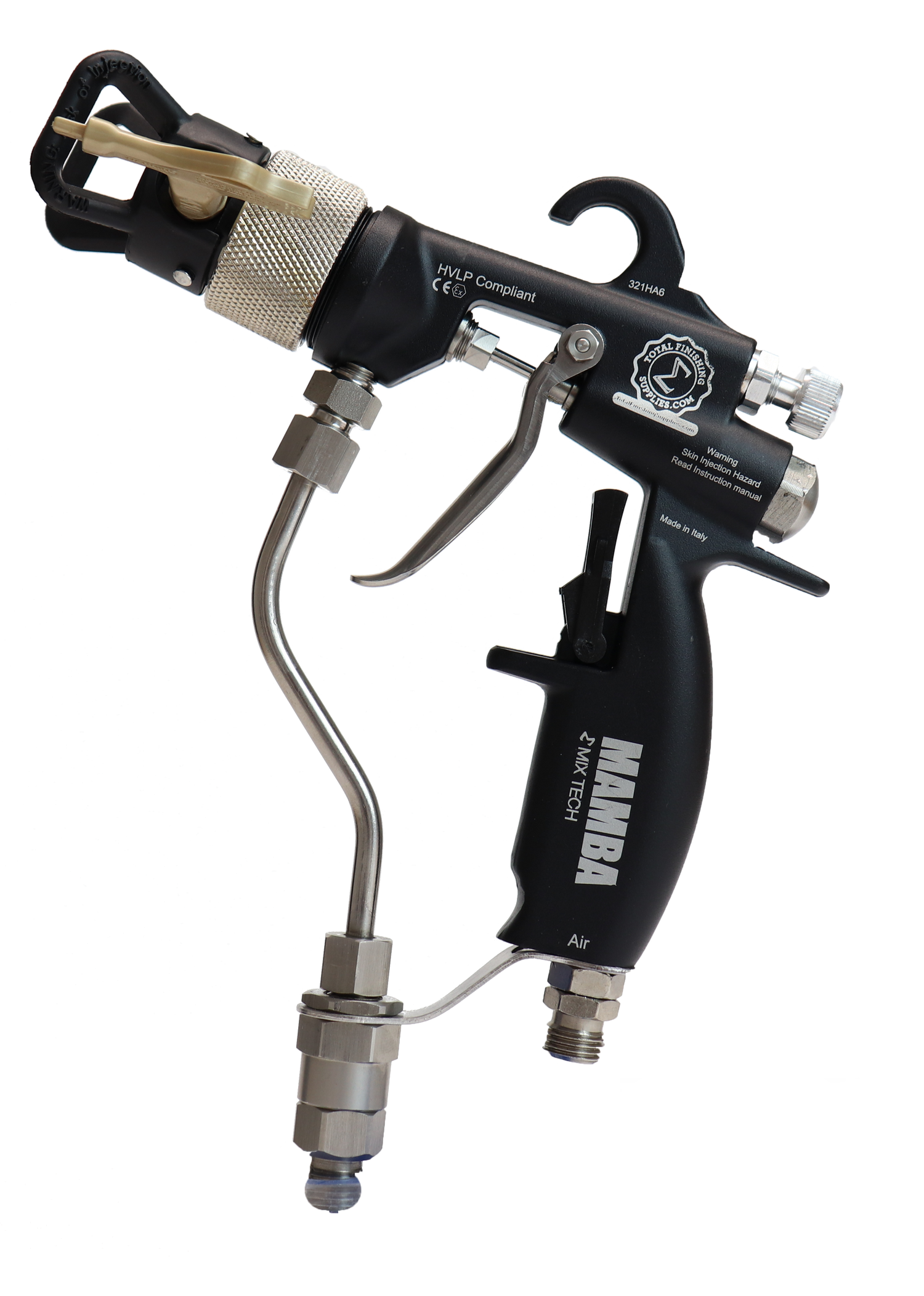

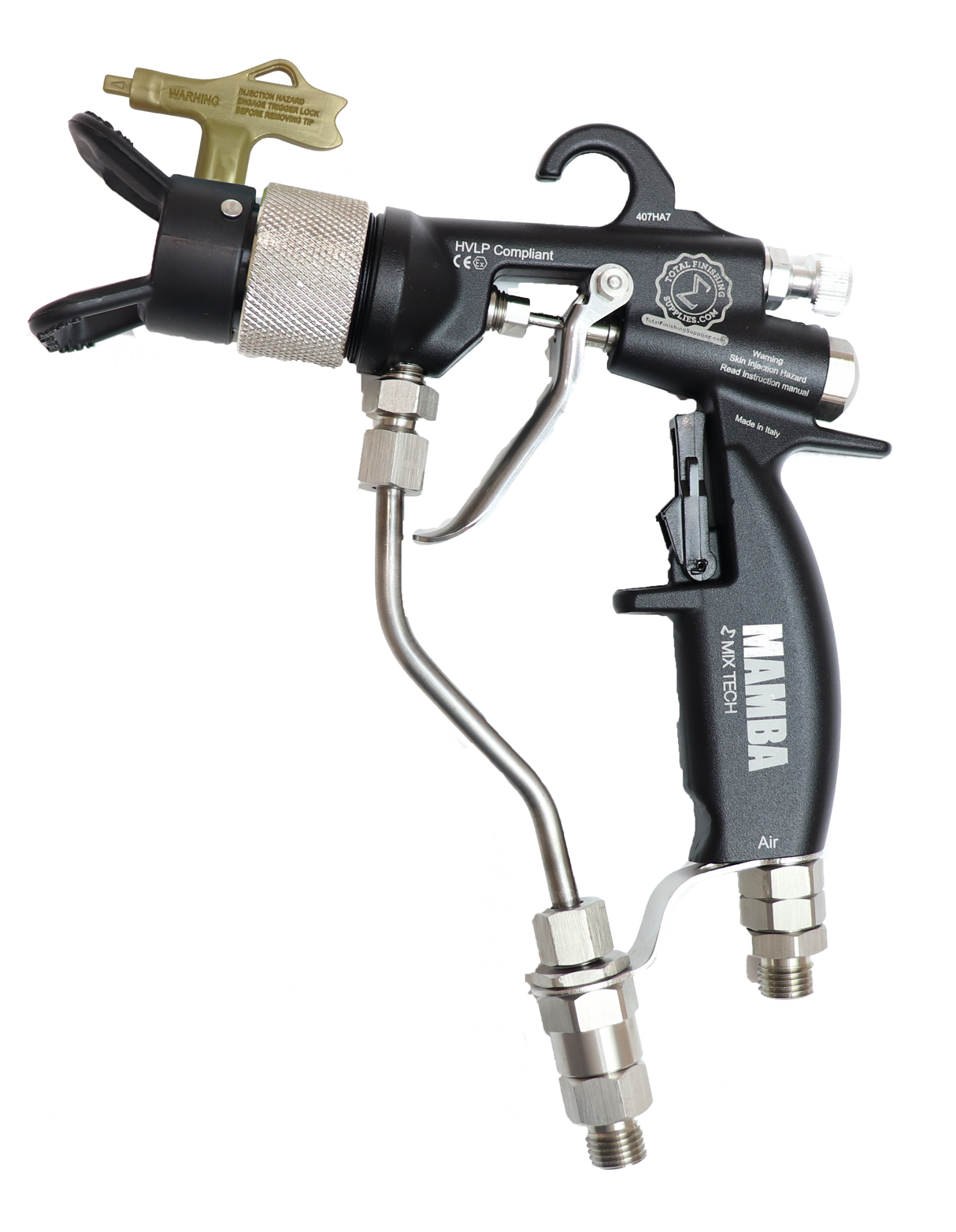

Description: The MAMBA® Mix Tech 200 bar (2900PSI) manual spray gun delivers exceptional performance, value, and finish quality. With a high transfer efficiency, the MAMBA® Mix Tech competes with other much higher-priced Graco® G40 RAC™ and G15 RAC™ spray guns.

Features:

• Material savings & environmental protection

• MAMBA® is manufactured by an ISO9000 facility

• HVLP compliant

• Unsurpassed atomization and quality of spraying at almost half the price

• Lightweight and ergonomic design for outstanding performance.

• Comparable to Graco® G40 RAC™ and G15 RAC™ along with the TriTech Fine Finish Reversible Tips

Reasons to choose the TFS MAMBA® over any other Air Assisted Airless (AAA) on the market:

1. You have high standards and like saving money! MAMBA® Mix Tech delivers Top tier performance at a mid-market price while offering rugged durability and superior atomization.

2. Get more done with less coating and waste! High Transfer Efficiency for Air Assisted Airless! Testing has shown this gun to have 86% transfer efficiency.

Specifications:

Fluid Inlet: NPSM 1/4"
Compressed Air Connection: NPT 1/4"
Max. Material Pressure: 200 bar / 2,900 psi
Max Material Pressure:  131°F (55°C)
Max Inlet Pressure: 8 bar / 116 psi
Operating Temperature Range:  41°–104°F (5°–40°C)
Weight: 1.3lb (0.6kg)
Max Sound Level:  82dB(A)

Literature

• Operating Manual
• Brochure
• Cut Sheet
• Tip Chart

Accessory and Parts List

• Hopper
• TriTech Contractor Tips
• TriTech Ultra-Finish Tips
• Reversible Tip Guard and Retainer/Air Cap
• Non-OEM Tip Sieve Support
• Non-OEM Tip Sieves (85-200 mesh)
• 1/4" M x 1/4" F Swivel
• 25' High-Pressure Fluid Line (select fittings when ordering)
• 25' Air Line

Replacement Part List

• Reversible Tip Guard and Retainer
• Reverse Tip, Ultra Finish
• 2. Wedge
• 3. Fan Regulation Set
• 4. Pressure Wedge
• 5. Fluid Needle Gasket
• 6. Fluid Needle Screw
• 7. Air Valve Complete
• 8. Needle Set
• 9. Air Valve Spring
• 10. Needle Spring
• 11A. Back Cap
• 12. Air Inlet 1/4"
• 13. Pin
• 14. Safety Lock
• 15. Trigger Pin
• 16. Trigger
• 17. Sealing Gasket
• 18. Gun Head

Pump Replacement Part List

* Siphon hoses 74-520 and 74-524 require 1/2” fluid inlet (P/N 74-118)

NO DISCOUNT CODES may be applied to this item

NOTES:

Not made by Graco®

Total Finishing Solutions, LLC is not affiliated with or sponsored or endorsed by Graco Inc. and is not one of their authorized distributors. Aftermarket non-oem replacement parts comparable to Graco® brand equipment are not manufactured or warrantied by Graco Inc. or any of its affiliates.
