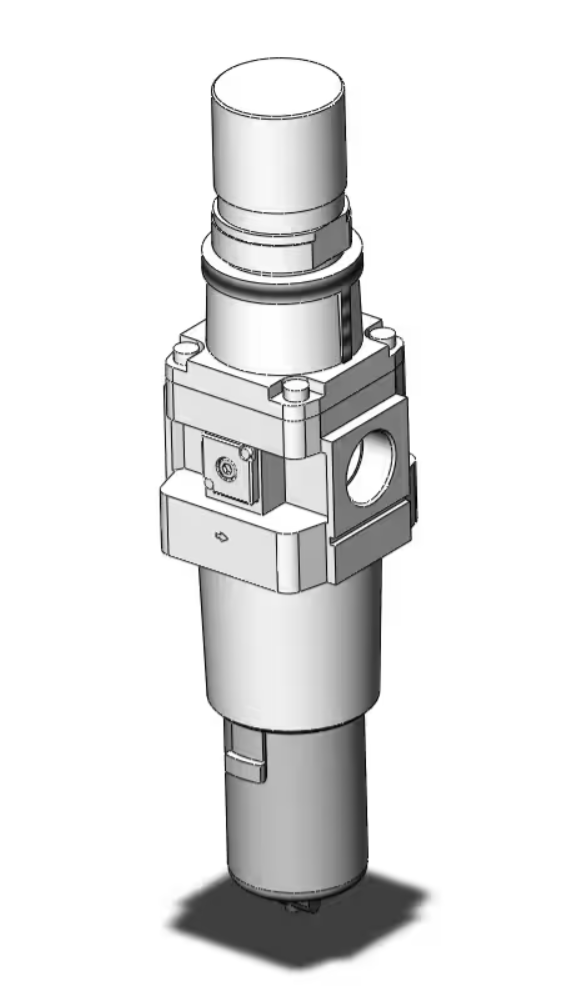

AW60 Series Filter Regulator
Manufacturer: Total Finishing
Part Number: TFS-AW60
Description: AW60 Series Filter Regulator
Specifications:
| Body Size | 60 |
| Backflow Function | No |
| Thread Type | NPT |
| Port Size | 3/4, 1 |
| Mounting Option | None |
| Drain Type | Without Auto Drain |
| Pressure Gauge | None |
| Pressure Unit | Name plate, caution plate for bowl, and pressure gauge in imperial units: psi, °F |
| Pressure Gauge Port Size | 1/4" |
| Fluid | Air |
| Ambient and fluid temperature | –5 to 60°C (with no freezing) |
| Proof pressure | 1.5 MPa |
| Max operating pressure | 1.0 MPa |
| Set pressure range | 0.05 to 0.85 MPa |
| Relief pressure | Set pressure + 0.05 MPa [at relief flow rate of 0.1 l/min (ANR)] |
| Nominal filtration rating | 5 μm |
| Drain capacity (cm3) | 45 |
| Bowl material | Polycarbonate |
| Bowl guard | Standard |
| Construction | Relieving type |
| Mass (kg) | 2.00 |
| Ref. No. | Description | Material |
| 1 | Body | Aluminum die-cast |
| 2 | Bonnet | Aluminum die-cast |
| 3 | Housing | Aluminum die-cast |
| 4 | Valve assembly | Brass, HNBR |
| 5 | Filter element | Non-woven fabric |
| 6 | Diaphragm assembly | Weatherable NBR |
| 7 | Bowl O-ring | NBR |
| 8 | Bowl assembly | Polycarbonate |
