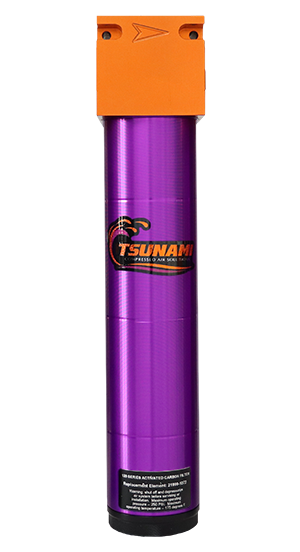

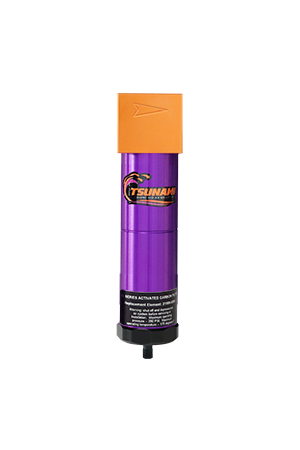

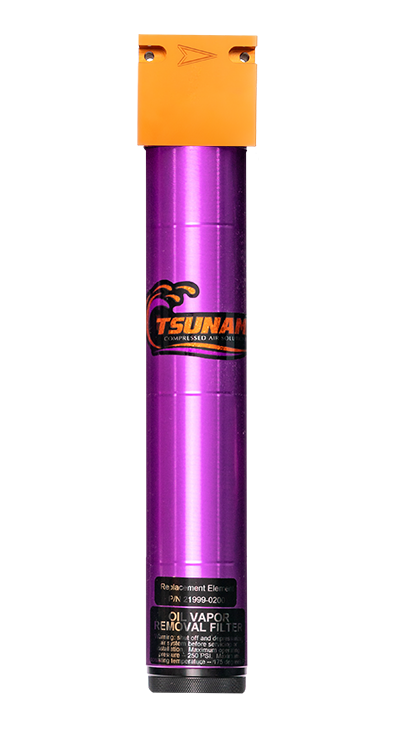

Tsunami Activated Carbon Filters

Tsunami Filters - Activated Carbon

Manufacturer:  Tsunami

Part Number: 21999-0930-AC, 21999-0131-AC, 21999-1034-AC, 21999-0082-AC

Description:

The Tsunami Activated Carbon Filter removes oil vapor from compressed air as the air passes through a multi-layer, carbon-impinged element eliminating odor and taste from the air.

Drain Options

• Float Drain - Contains a float within the device that normally seats on a small orifice. When liquid enters the drain the float rises off its seat, exposing the orifice and allowing liquid to discharge through the stem.
• Pneumatic Drain - (Requires Pilot Signal) - An external condensate reservoir collects liquid. When the liquid rises to a set point a mechanical switch sends pilot air to an air cylinder that opens a ball valve, draining the reservoir and returning the piston to a relaxed position.
• Electronic Drain - (Requires Electricity) - Incorporates a solenoid valve and an electric timer with two on/off settings. ON is the setting for the amount of time the valve needs to stay open (0.5 to 10 seconds) and OFF is the time between openings (0.5 to 45 minutes).

Premium Materials

Tsunami filters are machined from high-quality 6061 Aircraft Aluminum and then anodized inside and out - providing industrial strength and preventing corrosion and rust.

Oversized Tube Length

Oversized tube length allows both gravity and velocity to assist in the removal of water and air contaminants.

Removable Bottom Cap

The removable bottom cap provides ease of service and the machined drain port allows for various drain options.

Features & Benefits

• Adsorbs oil vapors down to .003 ppm
• Removes odor and taste
• Easy installation and serviceability
• Made in America
