Tsunami Core Series Desiccant Air Dryer
Description
Description

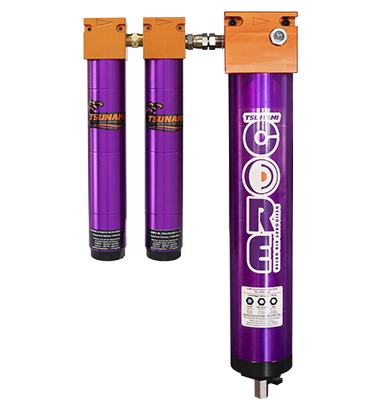

Tsunami Core Series Desiccant Air Dryer System with Pre-Filtration -25 CFM
Manufacturer: Tsunami
Part Number: 21999-1225, 21999-1235
Description:
The all-new Tsunami CORE Series Desiccant Air Dryer provides world-class air dryness at an affordable price, designed solely for intermittent, lower-pressure point-of-use applications.
The Tsunami manual change desiccant cartridge eliminates dusting and tunneling of airflow through the media, improving the output air performance. The CORE dryer is designed as a complete package and includes inline pre-filtration to remove bulk liquids and fine particulates prior to drying.
- Tsunami pre-filtration includes the water separator and oil coalescing filter to remove liquid water, bulk oils, and particulate
- The Core manual change desiccant cartridge provides easy maintenance, extends media life, and eliminates dusting and tunneling
- CORE Series Dryer Systems are efficiently designed and constructed with very few moving parts, reducing potential stress points
Core Series Dryer Features
- 2-stage Pre-filtration; Water Separator, Oil Coalescing Filter
- Cartridge style desiccant for easy maintenance
- Proprietary desiccant media blend in spring loaded cartridge eliminates dusting and "tunneling"
- Automatic drains
- Wall mounting brackets
- Outlet regulator
- Machined aluminum housing & heads
- Anodized inside & out
Core Series Dryer Benefits
- Dryer Performance
- Extended Life: dryer cartridge provides 20-25% longer life than competitor brands
- First Stage Water Separator
-
Removes liquid water
- Filters particulate down to 10 microns
- Seconded Stage Oil Coalescing Filter
- Filters particulates down to .01 microns
- Removes humidity, dew points down to -80°F
| Item # | 21999-1225 | 21999-1235 |
| Description | Air Dryer System with Pre-Filtration - 25CFM | Air Dryer System without Pre-Filtration - 25CFM |
| Port Size (NPT) | 1/2 Inlet/Outlet | 1/2 Inlet/Outlet |
| Drain | Float | Float |
| Max PSI | 200 | 200 |
| Max °F | 175° | 175° |
| Weight | 25 lbs | 14 lbs |
| Dimensions (in) | 22 x 13 x 7 | 22 x 5 x 7 |
Site Navigation -
Spare Parts -
| Item # | Description |
| 21999-1230 | Desiccant cartridge replacement |
| 21999-1146 | Moisture Indicator for Core Dryer - Replace Annually |
| 21999-1124 | Core Series Dryer - End Cap |
| 21999-1077-PL | Outer Tube Replacement |
| 21999-0131 | Water Separator |
| 21999-0131-Z-FD | Oil Coalescing Filter |
