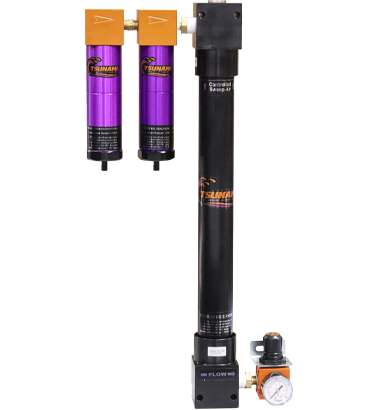

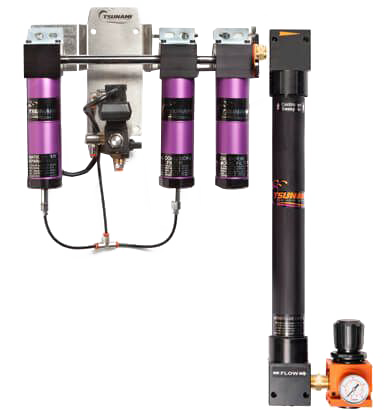

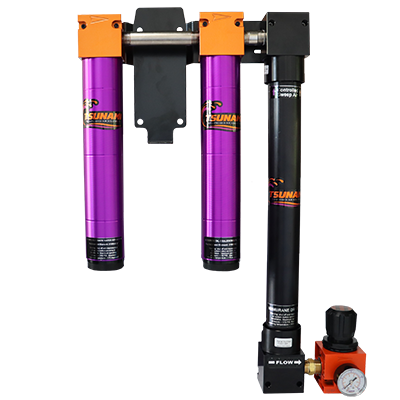

Tsunami Membrane Dryers
Manufacturer: Tsunami
Part Number: 21999-0889, 21999-3057, 21999-0957, 21999-0524, 21999-0355
Membrane Dryer: The 2-Stage Membrane Dryer includes a water separator, oil coalescing filter, and membrane dryer. Incoming air enters the 1st and 2nd stage filters where liquid water, oils, and particulates are removed. Then, the air enters the Membrane Dryer where water vapor is removed from the air.
Key features
- 2-stage Pre-filtration; Water Separator, Oil Coalescing Filter
OR
- 3-stage Pre-filtration; Water Separator, Oil Coalescing Filter, and Activated Carbon Filter
- Membrane Dryer Core
- Automatic Drains
- Wall Mounting Brackets
- Outlet Regulator
- Heater Pads available for cold temp applications
Key Benefits
- Low relative humidity - down to .01% RH
- Dew points down to -80°F
- Easy. low-cost maintenance - under $100/ year average
| Part Number | 21999-0889 | 21999-0357 | 21999-0957 | 21999-0524 |
| Max CFM: | 15 | 20 | 15 | 20 |
| Port Size (NPT): |
1/4 |
1/2 |
1/4 |
1/2 |
| Drain: | Float | Float | Float | Float |
| Max PSI: | 175 PSI | 175 PSI | 175 PSI | 175 PSI |
| Max Temp: | 150 Degrees F | 150 Degrees F | 150 Degrees F | 150 Degrees F |
| Dimensions: |
22" X 12" X 3 1/2" |
23" X 20" X 4 1/2" |
24 1/2" X 18 1/2" X 5 1/2" |
23" X 23 1/2" X 5 1/2" |
