UltraTech

UltraTech Ultra-Containment Berm® - Stake Wall Model

Regular price $1,000.00
Shipping calculated at checkout.

Berm Dimensions ft. (m)

UltraTech Ultra-Containment Berm® - Stake Wall Model - Select is backordered and will ship as soon as it is back in stock.


Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Add a stand out message for your customers

Description

Ultra-Containment Berm® - Stake Wall Model

Manufacturer: UltraTech

Part Number: See Table

Description: Portable secondary containment berm for drums, frac tanks, equipment and vehicles.

The Ultra-Containment Berm, Stake Wall Model is a portable berm that helps capture leaks, drips, and spills to prevent them from contaminating and polluting the environment.

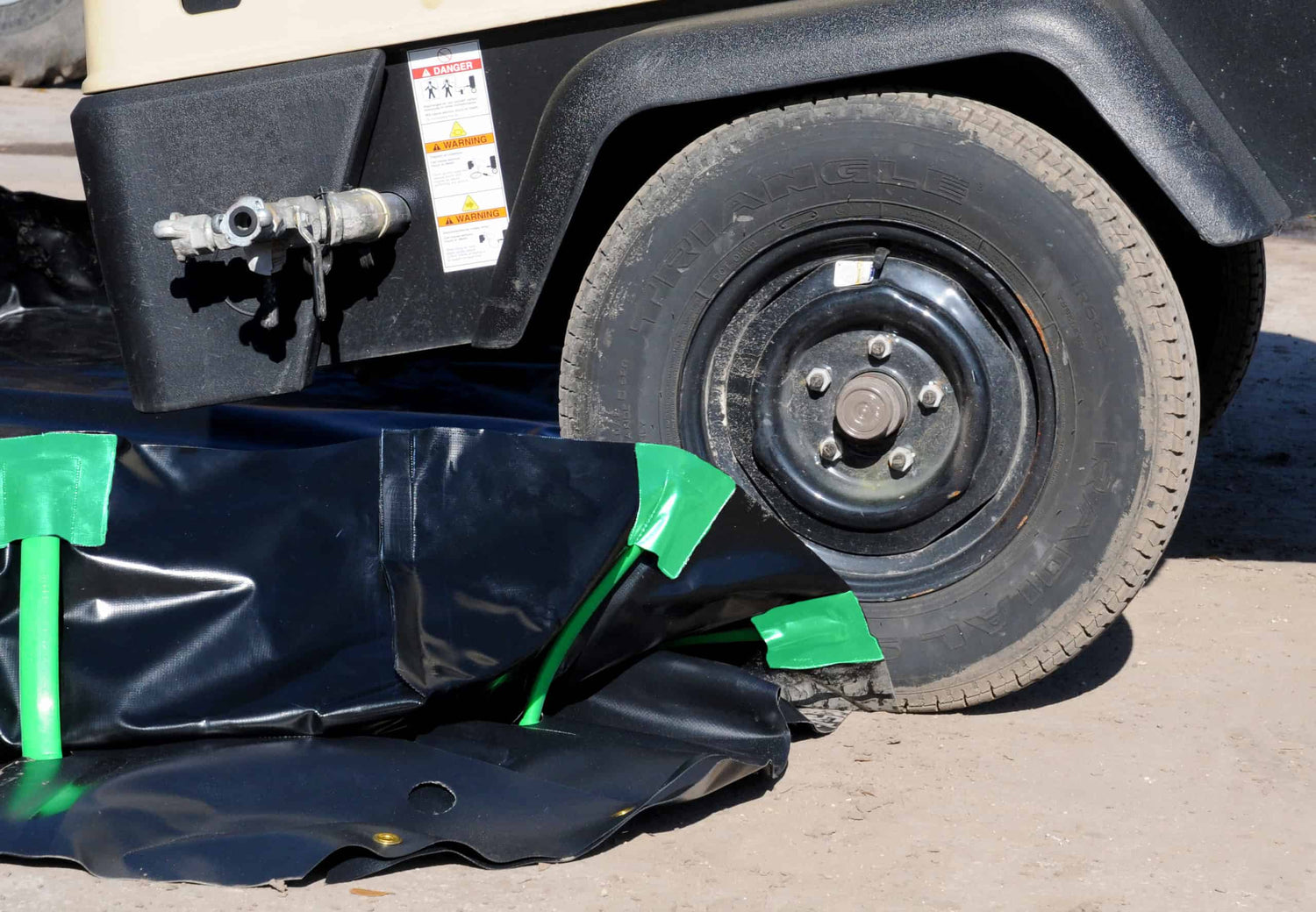

The stake wall model’s design features flexible polyurethane stakes that allow the sidewalls to spring into place automatically –even after being bent in either direction. This makes it perfect for spill sites or containment areas because it allows drums and trucks to roll over the walls without breaking their upright structure.

Features:

  • Easily folds for transport.
  • No set-up required - unfold and the sidewalls automatically spring into their vertical position.
  • Custom sizes available.
  • Vertical sidewall supports located every 12". Each Support features a built-in "living hinge" at its base, which allows sidewalls to collapse in either direction.
  • Collapsed sidewalls spring back automatically.

Specifications:

Part No. Dimensions ft. (m) Containment Capacity gal. (L) Weight lbs. (kg)
8208 6 x 4 x 1 (1.8 x 1.2 x .3) 179 (677.6) 37 (16.8)
8209 6 x 6 x 1 (1.8 x 1.8 x .3) 269 (1018.3) 46 (20.9)
8210 10 x 10 x 1 (3 x 3 x .3) 748 (2831.5) 87 (39.5)
8211 50 x 15 x 1 (15.2 x 4.6 x .3) 5610 (21236.2) 363 (164.7)
8212 66 x 15 x 1 (20.1 x 4.6 x .3) 7405 (28031) 464 (210.5)
8220 20 x 10 x 1 (6.1 x 3 x .3) 1496 (5663) 150 (68)
8221 30 x 10 x 1 (9.1 x 3 x .3) 2244 (8494.5) 208 (94.3)
8222 40 x 10 x 1 (12.2 x 3 x .3) 2992 (11326) 266 (120.7)
8223 50 x 10 x 1 (15.2 x 3 x .3) 3740 (14157.4) 325 (147.4)
8224 12 x 12 x 1 (3.7 x 3.7 x .3) 1077 (4076.9) 113 (51.3)
8225 20 x 12 x 1 (6.1 x 3.7 x .3) 1795 (6794.8) 162 (73.5)
8226 30 x 12 x 1 (9.1 x 3.7 x .3) 2692 (10190.3) 223 (101.2)
8227 40 x 12 x 1 (12.2 x 3.7 x .3) 3590 (13589.6) 284 (128.8)
8228 50 x 12 x 1 (15.2 x 3.7 x .3) 4488 (16988.9) 345 (156.5)
8229 60 x 12 x 1 (18.3 x 3.7 x .3) 5385 (20384.4) 406 (184.2)
8230 15 x 15 x 1 (4.6 x 4.6 x .3) 1683 (6370.8) 151 (68.5)
8231 20 x 15 x 1 (6.1 x 4.6 x .3) 2244 (8494.5) 184 (83.5)
8232 30 x 15 x 1 (9.1 x 4.6 x .3) 3366 (12741.7) 250 (113.4)
8233 40 x 15 x 1 (12.2 x 4.6 x .3) 4488 (16988.9) 317 (143.8)



Parts and Accessories:

  • 8389 - Ultra-Berm Repair Kit
  • 8XXX - UltraTech Ground Tarps & Track Belts

You will be contacted with a freight quote for shipping
