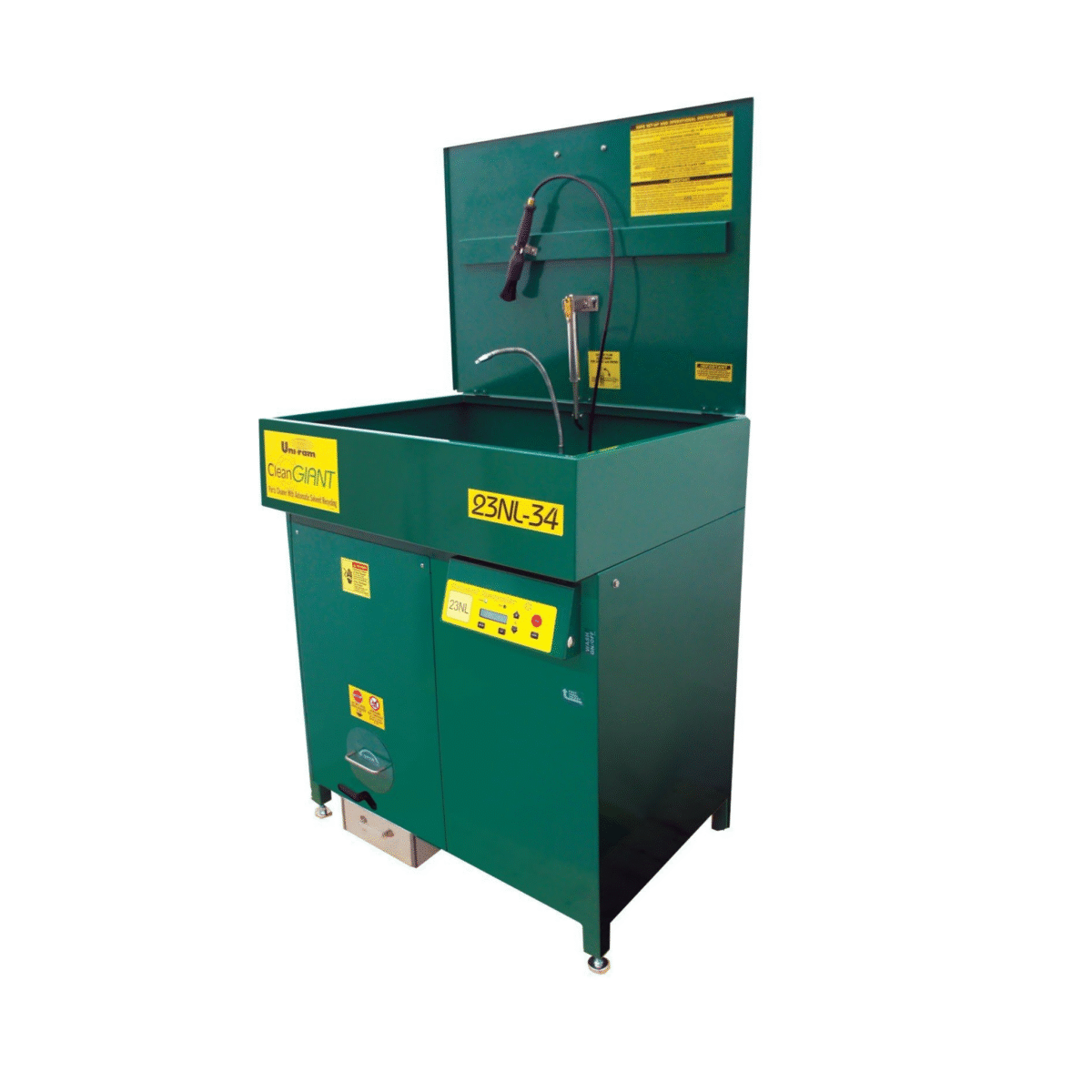

Uni-Ram 23NL Series Part Washer With Solvent Recycler

23NL Series Part Washer With Solvent Recycler

Manufacturer: Uni-Ram

Part Number: 23NL-42

Description: The 23NL Series Parts Washer with built-in solvent recycler provides fast, efficient parts cleaning using a flow-through brush and flexible spigot. At the push of a button, dirty solvent is drained and automatically replaced with 5 gallons of clean, recycled solvent, ensuring fresh solvent is available daily. The integrated solvent recycler processes used solvent in about 4 hours, cutting solvent purchases and disposal costs by up to 90% while reducing the facility’s carbon footprint. Designed for durability and ease of service, it features a stainless steel clean tank, LCD-controlled diagnostics, and a certified safety system (UL2208/CSA).

You will be contacted with a freight quote for shipping

Key Features:

• Batch process, 6 gallon capacity.
• Recycles in 4-8 hrs. typically.
• Voltage: 220-240V, single phase.
• Construction: 18 gage, 304 stainless steel cabinet.
• Distillation Tank: 316 Stainless steel.
• Cooling: High efficiency 316 stainless steel condenser with motor driven fan.
• Waste Collection: The waste is collected in a high temperature nylon bag.
• Dimensions: 28” w x 17” d x 42.5” h
• Solvent Transfer: Fill by timer. Transfer out by timer.
  Safety:
• Certification: UL Standard 2208 and CSA Standard 22.2 No. 30 and 88. Certified to Class 1 Division 1, Group D Explosion Proof standards.
• Many built-in safety programs. Continuous self diagnostics with error messages.
• Pressure Relief System: Prevents pressure build up over 3-5 PSI.
• Control System: Operational control and continuous monitoring by sophisticated micro-processor with status messages. Self test mode.

Specifications:

Safety Features:

➢ This unit is certified by ETL (Electric Testing Laboratory) under UL standard 2208 and
CSA standards C22.2 No. 88 for use in non-hazardous locations.
➢ Computer Board with CPU and 32 characters LCD is used to control all aspects of
the operation including wash pump control, vacuum control, and temperature control of all critical points like the distillation tank, solvent vapor passage, and fan motor. It also
has many built-in safety programs.
➢ Self-Diagnostic system constantly monitors operation status and displays status
throughout the process. Status and error messages are also displayed on the Display
Panel. In addition to the temperature of Distillation Tank, Vapor passage and condenser, the computer also monitors vacuum pressure and the solvent level in the Clean Solvent Tank.
➢ Sink Lid is equipped with a Lid Stay with a fusible link so that the Lid will close
automatically in case of fire in the sink.

Literature:

• Brochure
• Manual
• Standard Operating Procedure
