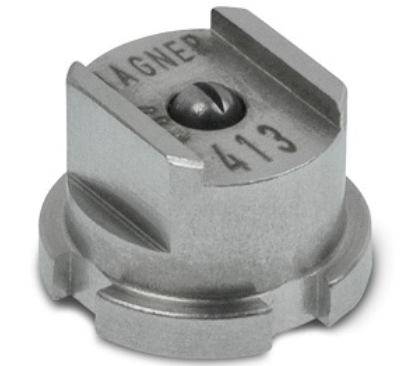

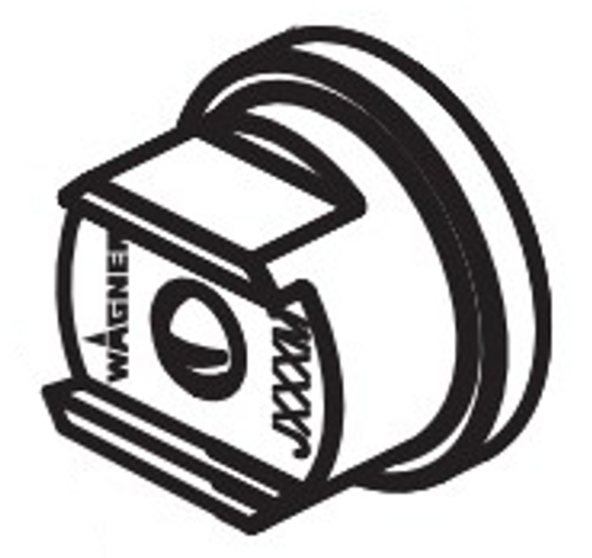

Airless Flat Jet Nozzle Standard Tip
Manufacturer: Wagner
Part #: See Table
Description: Airless Flat Jet Nozzle Standard Tip.
Applications:
- Orifice sizes 0.007-0.009: Natural lacquer, Clear lacquers, Oils
- Orifice sizes 0.011: Synthetic resin lacquers, PVC lacquers
- Orifice sizes 0.013: Lacquers base coat, Zinc chromate primer, Primer filler
- Orifice sizes 0.015: Filler, Spraying plaster, Rust proofing paints
- Orifice sizes 0.017-0.019: Spraying plaster, Rust proofing paints, Red lead, Latex paints
- Orifice sizes 0.021: Mica paints, Zinc rich paints, Emulsions
- Orifice sizes 0.023: Rust proofing paints
- Orifice sizes 0.025-0.039: Emulsion, Emulsion paint, Glue paints, Fill color
- Orifice sizes 0.043-0.052: Large-surface coating
Part # | Nozzle # | Spray Angle | Orifice Size inch;mm | Jet width mm;inch |
90407 | 407 | 40 ° | 0.007; 0.18 | 163; 6.42 |
90507 | 507 | 50 ° | 0.007; 0.18 | 190; 7.48 |
90209 | 209 | 20 ° | 0.009; 0.23 | 148; 5.83 |
90309 | 309 | 30 ° | 0.009; 0.23 | 158; 6.22 |
90409 | 409 | 40 ° | 0.009; 0.23 | 198; 7.79 |
90509 | 509 | 50 ° | 0.009; 0.23 | 215; 8.46 |
90609 | 609 | 60 ° | 0.009; 0.23 | 225; 8.85 |
90111 | 111 | 10 ° | 0.011; 0.28 | 87; 3.42 |
90211 | 211 | 20 ° | 0.011; 0.28 | 93; 3.66 |
90311 | 311 | 30 ° | 0.011; 0.28 | 127; 5.0 |
90411 | 411 | 40 ° | 0.011; 0.28 | 210; 8.23 |
90511 | 511 | 50 ° | 0.011; 0.28 | 225; 8.85 |
90611 | 611 | 60 ° | 0.011; 0.28 | 270; 10.63 |
90113 | 113 | 10 ° | 0.013; 0.33 | 103; 4.05 |
90213 | 213 | 20 ° | 0.013; 0.33 | 107; 4.21 |
90313 | 313 | 30 ° | 0.013; 0.33 | 142; 5.59 |
90413 | 413 | 40 ° | 0.013; 0.33 | 207; 8.15 |
90513 | 513 | 50 ° | 0.013; 0.33 | 255; 10.04 |
90613 | 613 | 60 ° | 0.013; 0.33 | 282; 11.10 |
90813 | 813 | 80 ° | 0.013; 0.33 | 375; 14.76 |
90115 | 115 | 10 ° | 0.015; 0.38 | 98; 3.86 |
90215 | 215 | 20 ° | 0.015; 0.38 | 100; 3.94 |
90315 | 315 | 30 ° | 0.015; 0.38 | 162; 6.38 |
90415 | 415 | 40 ° | 0.015; 0.38 | 202; 7.95 |
90515 | 515 | 50 ° | 0.015; 0.38 | 252; 9.92 |
90615 | 615 | 60 ° | 0.015; 0.38 | 268; 10.55 |
90715 | 715 | 70 ° | 0.015; 0.38 | 295; 11.61 |
90815 | 815 | 80 ° | 0.015; 0.38 | 395; 15.55 |
90217 | 217 | 20 ° | 0.017; 0.43 | 117; 4.60 |
90317 | 317 | 30 ° | 0.017; 0.43 | 153; 6.02 |
90417 | 417 | 40 ° | 0.017; 0.43 | 190; 7.48 |
90517 | 517 | 50 ° | 0.017; 0.43 | 235; 9.25 |
90617 | 617 | 60 ° | 0.017; 0.43 | 283; 11.14 |
90717 | 717 | 70 ° | 0.017; 0.43 | 342; 13.46 |
90219 | 219 | 20 ° | 0.019; 0.48 | 147; 5.79 |
90319 | 319 | 30 ° | 0.019; 0.48 | 168; 6.61 |
90419 | 419 | 40 ° | 0.019; 0.48 | 192; 7.56 |
90519 | 519 | 50 ° | 0.019; 0.48 | 272; 10.71 |
90619 | 619 | 60 ° | 0.019; 0.48 | 315; 12.40 |
90719 | 719 | 70 ° | 0.019; 0.48 | 330; 12.99 |
90819 | 819 | 80 ° | 0.019; 0.48 | 402; 15.83 |
90221 | 221 | 20 ° | 0.021; 0.53 | 148; 5.83 |
90421 | 421 | 40 ° | 0.021; 0.53 | 183; 7.20 |
90521 | 521 | 50 ° | 0.021; 0.53 | 252; 9.92 |
90621 | 621 | 60 ° | 0.021; 0.53 | 313; 12.32 |
90821 | 821 | 80 ° | 0.021; 0.53 | 380; 14.96 |
90223 | 223 | 20 ° | 0.023; 0.58 | 130; 5.12 |
90423 | 423 | 40 ° | 0.023; 0.58 | 185; 7.28 |
90523 | 523 | 50 ° | 0.023; 0.58 | 253; 9.96 |
90623 | 623 | 60 ° | 0.023; 0.58 | 298; 11.73 |
90723 | 723 | 70 ° | 0.023; 0.58 | 340; 13.38 |
90823 | 823 | 80 ° | 0.023; 0.58 | 355; 13.98 |
90225 | 225 | 20 ° | 0.025; 0.64 | 133; 5.24 |
90425 | 425 | 40 ° | 0.025; 0.64 | 198; 7.79 |
90525 | 525 | 50 ° | 0.025; 0.64 | 250; 9.84 |
90625 | 625 | 60 ° | 0.025; 0.64 | 265; 10.43 |
90825 | 825 | 80 ° | 0.025; 0.64 | 360; 14.17 |
90227 | 227 | 20 ° | 0.027; 0.69 | 143; 5.63 |
90427 | 427 | 40 ° | 0.027; 0.69 | 222; 8.74 |
90527 | 527 | 50 ° | 0.027; 0.69 | 233; 9.17 |
90627 | 627 | 60 ° | 0.027; 0.69 | 270; 10.93 |
90827 | 827 | 80 ° | 0.027; 0.69 | 353; 13.90 |
90629 | 629 | 60 ° | 0.029; 0.75 | 288; 11.34 |
90231 | 231 | 20 ° | 0.031; 0.79 | 130; 5.12 |
90431 | 431 | 40 ° | 0.031; 0.79 | 220; 8.66 |
90531 | 531 | 50 ° | 0.031; 0.79 | 223; 8.78 |
90631 | 631 | 60 ° | 0.031; 0.79 | 273; 10.75 |
90433 | 433 | 40 ° | 0.033; 0.84 | 220; 8.66 |
90235 | 235 | 20 ° | 0.035; 0.90 | 120; 4.72 |
90435 | 435 | 40 ° | 0.035; 0.90 | 220; 8.66 |
90535 | 535 | 50 ° | 0.035; 0.90 | 270; 10.93 |
90635 | 635 | 60 ° | 0.035; 0.90 | 310; 12.20 |
90839 | 839 | 80 ° | 0.039/ 0.99 | 480; 18.90 |
90243 | 243 | 20 ° | 0.043; 1.10 | 165; 6.50 |
90543 | 543 | 50 ° | 0.043; 1.10 | 260; 10.24 |
90552 | 552 | 50 ° | 0.052; 1.30 | 280; 11.02 |
