Wagner DN 2.6 Paint And Dosing Valves (Single)

Regular price $768.97
Shipping calculated at checkout.

Valve Type

Wagner DN 2.6 Paint And Dosing Valves (Single) - Select is backordered and will ship as soon as it is back in stock.


Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Add a stand out message for your customers

Description

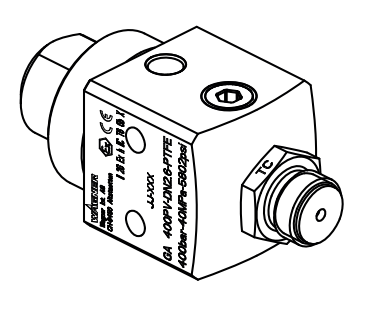

DN2.6 Paint And Dosing Valves (single)

Manufacturer: Wagner

Part Number: 23428XX

Description: The pneumatically operated valves are suitable for switching and dosing liquid products, in particular coating or process products for surface technology and similar products.

  • The paint valve (PV) is used to switch coating products (paints) and flushing agents.
  • When working with multi-component products, a dosing valve (DV) must be used for the dosing of hardener product. Dosing valves have an adjustable stroke limitation.

Paint Valve Specifications:

Designation Valve Seat Valve Ball Packing Nom. Pressure  Material Connection Part No.
GA-250PV-DN2.6-PTFE-TC Tungsten Carbide Tungsten Carbide PTFE 250bar G 1/4″-F 2343364
GA 400PV-DN2.6-PTFE-TC Tungsten Carbide Tungsten Carbide PTFE 400bar G 1/4″-F 2343360



Dosing Valve Specifications:

Designation Valve Seat Valve Ball Packing Nom. Pressure  Material Connection Part No.
GA 400DV-DN2.6-PTFE-SSt Stainless Steel Stainless Steel PTFE 400bar G 1/4″-F 2343359
GA 400DV-DN2.6-PTFE-TC Tungsten Carbide Tungsten Carbide PTFE 400bar G 1/4″-F 2343362



  • All valves are switched individually by means of the control air (B).
  • The control piston positioned on the valve rod (G) in the valve's housing (C) is pressurized and thus opens the passageway to the product outlet (E).
  • Closing is effected by means of a pressure spring (H) after the control air pressure (B) has dropped.
  • The set of seals (I) prevents product from flowing into the housing (C).
  • Securing the valve: Remove the control air line from the control air connection (B).

Literature:

Parts and Accessories (Paint Valve):

Ref. No. Part No. Description
1 - Paint Valve
2 2330264 Piston
3 9913014 Hex Nut
4 350498 Pressure spring (250bar)

350482 Pressure spring (400bar)
5 9974187 O-ring
6 350884 Valve rod, complete
7 - Valve housing
8 350485 Sealing screw
9 2342203 Stop ring
10 2342204 Sealing ring at front
11 2342205 Support ring
12 2342206 Sealing collar
13 2342207 Sealing sleeve
14 2342208 Sealing ring at rear
15 350488 Screw plug
16 350418 Plug
17 350161 Spacer, complete
18 350490 Clamping nut
19 9974065 O-ring



Parts and Accessories (Dosing Valve):

Ref. No. Part No. Description
1 - Dosing Valve
2 2330264 Piston
3 9913014 Hex Nut
4 350482 Pressure spring (400bar)
5 9974187 O-ring
6 2343834 Valve rod, complete (Stainless Steel)

350884 Valve rod, complete (Tungsten Carbide)
7 - Valve housing
8 350485 Sealing screw
9 2342203 Stop ring
10 2342204 Sealing ring at front
11 2342205 Support ring
12 2342206 Sealing collar
13 2342207 Sealing sleeve
14 2342208 Sealing ring at rear
15 350488 Screw plug
16 350418 Plug
17 2343005 Spacer, complete (Stainless Steel)

350161 Spacer, complete (Tungsten Carbide)
18 350490 Clamping nut
19 9974065 O-ring
20 9907250 Hexagon screw
21 9913058 Hexagon Nut
