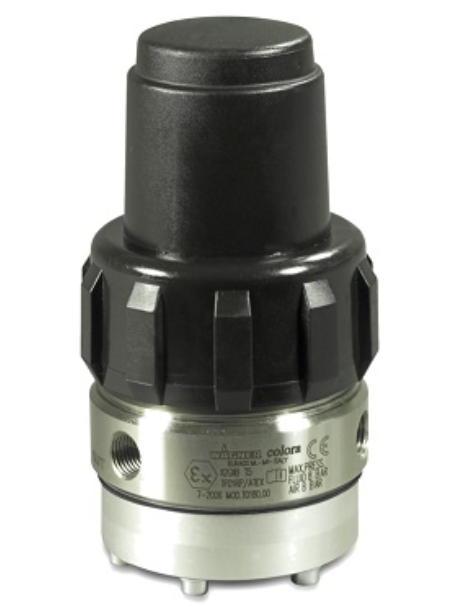

Wagner Fine Flow Controller FFC 14/0.5-8bar Pneumatic

Regular price $573.34
Shipping calculated at checkout.


Wagner Fine Flow Controller FFC 14/0.5-8bar Pneumatic

Manufacturer: Wagner

Part #: T0180.00A, T0180.00AI, T0180.00AIC

Description: Wagner fine flow controller, pneumatically controlled low-pressure regulator up to 8 bar control range for flow rates up to 2.0 l/min. With PTFE diaphragm, depending on version in stainless steel or aluminum.

The Wagner FFC´s Material Regulator are equipped with a 100mesh material filter as standard. The additional filter-volume works as a damping element and effects the pulsation behaviour even more positive. The version T0180.00AIC has a ceramic valve seat for outstanding lifetime when abrasive fluids are processed. Available in Stainless Steel or Aluminium.

Specifications:

Max. Inlet Pressure 14bar
Pressure Range 0.5-8bar
Material Outlet G 1/4″ – F
Material Inlet G 1/4″ – F
Control Air Connection G 1/8″ – F


Manual

Spare Parts:

Ref. No. Part No. Description
1 A588.03 Diaphragm disc - material side
2 A590.03 Diaphragm disc - air side
3 B0172.03 Ball guide
4 B0180.01 Housing - material side
5 B391.03 Shut-off needle
6 B563.01 Housing - air side
7 T6007.00A Ball seat body, complete
8 F991.07 Union nut
9 F992.07 Filter cup
10 G725.05 RVO PTFE Diaphragm
11 G726.06 RVO Diaphragm
12 G640.05B Seal
13 H285.03 Conical spring
14 K311.62 Self-locking nut, M6
15 K515.62 Plain washer
16 K811.03 Ball, 1/4"
17 K1055.62 Screw, M5x30
18 L148.06 O-ring
19 L118.06A O-ring
20 T500.00A Filter insert, 100 mesh, white
20 T500.00 Filter insert, 60 mesh, black
20 T500.00B Filter insert, 150 mesh
- T6193.00 FFC-Service set
