WIWA Professional GX Series Pumps
Description
Description

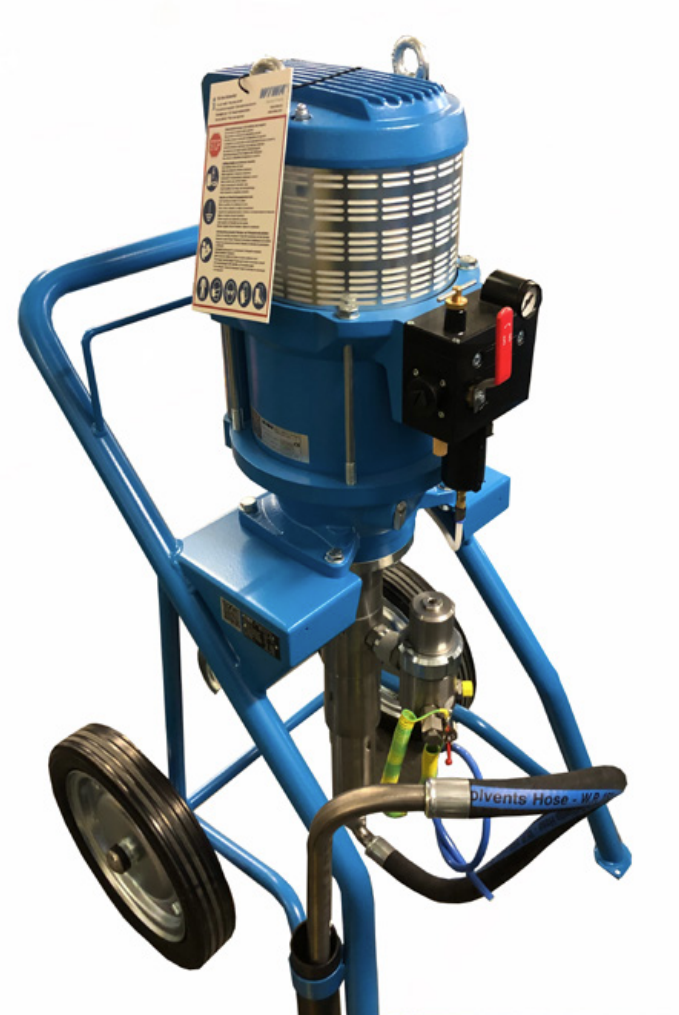

Professional GX Series Pumps
Manufacturer: WIWA
Part Number: 06640XX
Description: Experience noticeable quality, the best engineering skills and durability under the toughest conditions. The WIWA GX motor generation impresses with a full metal housing, optimized air distribution during service to minimize icing during continuous operation and reduced noise. Low-maintenance, durable material pumps reduce operating costs and ensure uncompromising fluid flow. Unconditional enthusiasm perfected. This is the WIWA PROFESSIONAL GX – a masterpiece in its class.
These units include the following items: Pump, Mount as Described, High-Pressure Filter, Air Regulator, Throat Seal Liquid, Manual
Ready to Spray models include (1) 3/8”x50’ Spray Hose, (1) 1/4”x3’ Whip Hose, (1) WIWA 500D Spray Gun, (1) Reversible Spray Tip and Housing
All wetted parts of GX series pumps are stainless steel.
Features:
- Muffler
- Maintenance-free control
- Air inlet
- Generously sized air passages and exhaust bypass
- Precision piston guiding
- Nylon guide bushing
- Throat seal liquid reservoir
- Coupling
- Material outlet
- Spring-loaded packings
- Hard-chromed double piston
- Large valves with tungsten carbide valve seats and stainless steel valve balls
- Material inlet
Specifications:
| Model | 230035 | 230051 | 230063 |
| Pressure Ratio | 35:1 | 51:1 | 63:1 |
| Max Fluid Pressure (psi) | 4060 | 5916 | 6395 |
| Output Per Cycle (ccm) | 275 | 189 | 153 |
| Flow Rate @ 60 cpm (gpm) | 4.3 | 3 | 2.4 |
Areas of Application:
| • Large areas • Marine coatings • Steel and hall construction • Railcar manufacture • Paint shops • Offshore industry |
• Industrial coatings • Structural engineering and corrosion protection • Insulation • Fire protection • Transfer pumps |
Materials:
| • Abrasive materials • Flame protection • Sprayable lacquers and paints • Glassflake • Insulation and thick-film material |
• Anti-fouling materials • Cold bitumen • Short-fibre filling materials • Low-solvent and solvent-free paints • Plural component and tar-epoxy paints |
Why the WIWA GX Series? Benefits at a glance:
- Top performance even in the toughest areas of application
- Economical thanks to extremely sturdy design and long service life
- Precise results due to low pulsation
- Reliable even in continuous operation
- Low wear and low maintenance costs thanks to self-adjusting packings
- Ideal for automatic spraying systems and paint circulation systems
You may be contacted with a freight quote for shipping. All pictures used are representative and may not depict the exact equipment that would be delivered.
