ZIP 52 PF ECO-Finishing Low-Pressure Double Diaphragm Pumps
Description
Description

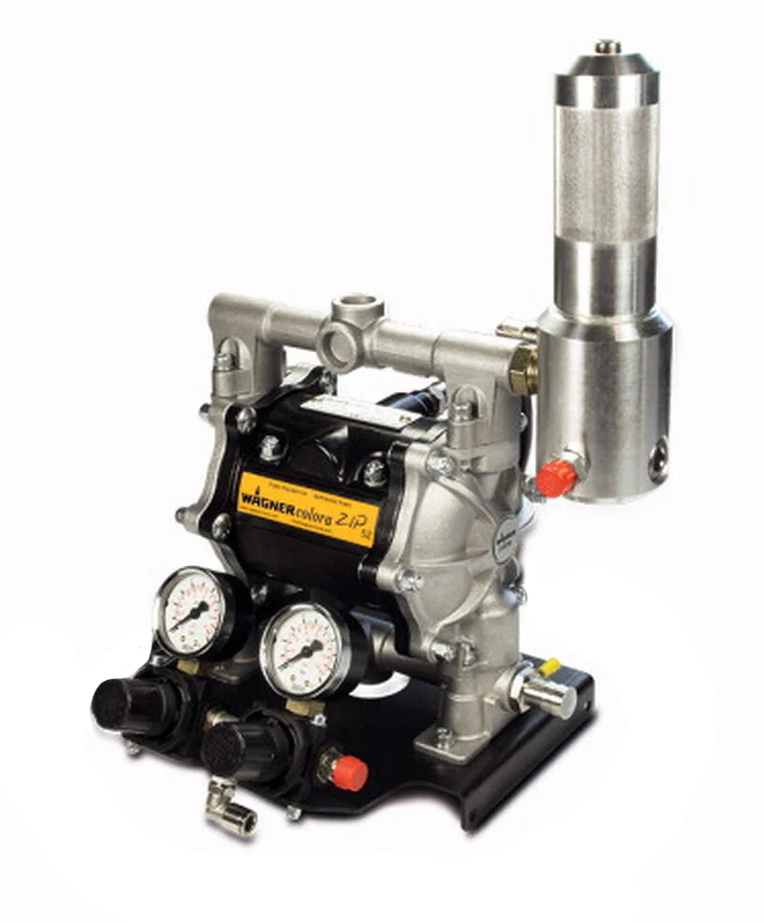

ZIP 52 PF ECO-Finishing Low-Pressure Double Diaphragm Pumps
Manufacturer: Wager
Part Number: U731.00
Description: The ZIP 52 PF ECO-Finishing pump comes with a suction hose and filter, product filter, atomizing air pressure regulator, pump pressure regulator, and connection elements.
The ZIP 52 PF ECO-Finishing pneumatic double diaphragm pumps are designed with a reduction in air consumption coupled with better performance and maximum reliability. The exclusive design enables its use for corrosive, abrasive, and highly viscous liquid media. ZIP pumps cover a broad application spectrum, including the feeding of paint supply systems; the feeding and circulation of printing ink, solvents, paints, chemicals, and oils; the disposal of liquid waste; the supply of flow viscosity adhesives; and filling/emptying of tanks, drums, and containers.
Specifications:
| Pump Body | Aluminum |
| Diaphragm | UHMWPE |
| Diaphragm Disc | PPS |
| Valve Seat | Stainless Steel |
| Valve Ball | Stainless Steel |
| O-Rings | PTFE |
Technical Data:
| Ratio: | 1:1 |
| Volume Flow: | 3.78 cu in. per double stroke (DH) |
| Max Pressure: | 116 PSI |
| Max Speed: | 490 DH/min |
| Max Flow Rate: | 7.4 gal/min |
| Min Air Inlet Pressure: | 15 PSI |
| Max Air Inlet Pressure: | 116 PSI |
| Air Inlet Connection: | Ø 8 mm |
| Fluid Connections: | 1/4" M |
| Weight: | 17.4lb |
Literature:
